Embedded Component: Gen4 eXtreme Switch for MC12XSF, MC12XS6 and MC32XSG

GEN4-EXTREMESWITCH-PEXPERT

Roll over image to zoom in

This package contains Processor Expert® support for 12XSF, 12XS6 and MC32XSG families of 4th generation of eXtreme Switches and example projects for Kinetis® Design Studio 3.0 or newer. It is also possible to use the components in CodeWarrior® 10.6 or newer and Driver Suite 10.4 or newer.

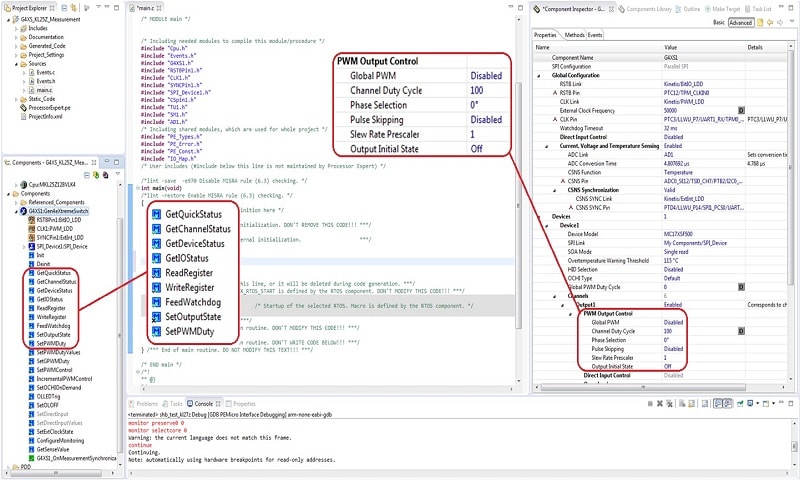

Processor Expert component for Gen4 eXtreme Switch enables rapid embedded application development.

This component provides access to all features of Gen4 eXtreme Switch such as writing/reading SPI registers, output settings and feedback measurement.

Software Details

Select a section:

Features

  • SPI communication
  • Watchdog triggering
  • Outputs settings (PWM duty, global PWM, slew rate)
  • Protections settings (open load, overcurrent)
  • Current feedback measurement

Supported Devices

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch
  • MC12XSF: External Industrial Lighting 5MHz SPI-Controlled Switch
  • MC32XSG: Industrial Multipurpose 32 V SPI-Controlled Smart Switch

Supported Tools

  • FRDM-32XSG-EVB: Freedom HW for MC17XSG500 device
  • FRDM-KL25Z: Freedom Development Platform for Kinetis KL14, KL15, KL24, KL25 MCUs.
  • FRDM-K64F: Freedom Development Platform for Kinetis K64, K63, and K24 MCUs.
  • FRDM-KV10Z: Freedom Development Platform for Kinetis KV1x Family 16 KB and 32 KB Flash MCU
  • FRDM-MC12XSF: Freedom HW for MC12XSF family
