QN9020DK: a highly extensible platform for application development of QN9020

Overview

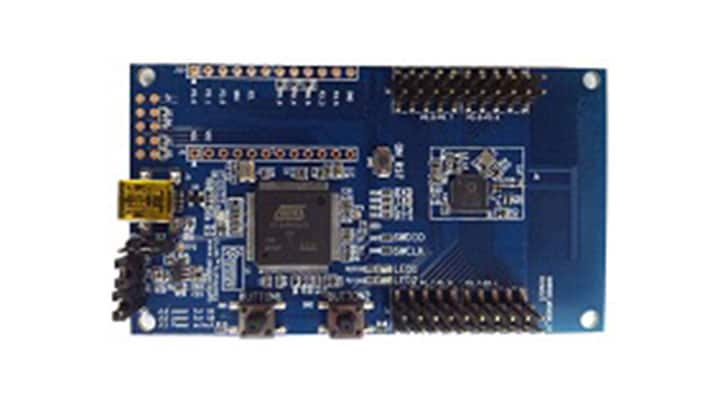

The QN9020DK board is designed to make it as easy as possible to get started with your project based on NXP^® QN9020 Bluetooth Low Energy SOC.

The QN9020DK board integrates buttons, Piezo buzzer, LED for easy way to reset chip and indicate chip status. The DK board also provides useful interfaces such as USB port for UART communication and JLink debug, GPIO sensor.

The part number / Ordering code (12NC): QN9020DK / 9353 067 79598

Note: QN9090/30 is preferred for any new Bluetooth LE design.

MoreLess

Target Applications

Small and Medium Appliances

Specifications

Technical and Functional Specifications

Connectivity	Contains Jlink-OB offering SWD and UART interfaces for QN9020 debug and communication Mini USB port for power and communication port Power source select jumper used for power source selection Extended QN9020 GPIO Port used for interface extension UART interface used as communication port for QN9020 device
Power Management	Current measurement jumpers used for measuring the QN9020 device power consumption
Components	Button1/2 used as input LED1/2 used as output to indicate QN9020 status

Buy

QN9020DK ^Active
a highly extensible platform for application development of QN9020
- QN9020 DK Board
- QN9020 USB dongle
- USB cable

QN9020DKUL
1 @ US
$45.00

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Get Started

Quick Start Guide

QN902x Quick Start Guide
- PDF
- Rev 3.0
- Apr 24, 2018
- 5.0 MB
- AN11664
- English

Documents ( 1 )

Application Note ( 1 )

Software ( 1 )

Embedded Software ( 1 )
- BSP, Drivers and Middleware ( 1 )

Documents

Application Note ( 1 )

QN902x Quick Start Guide

This application note discusses the use of QN9020 mini Development Kit (DK) for evaluating and developing Bluetooth Low Energy (BLE) solutions based on QN902x.
- PDF
- Rev 3.0
- Apr 24, 2018
- 5.0 MB
- AN11664
- English

Software

Embedded Software ( 1 )

BSP, Drivers and Middleware ( 1 )

QN902x SDK

QN902x BLE solution offers a complete Software Development Kit (SDK) to develop various single-mode BLE applications.
- ZIP
- Rev 1.4.0
- Dec 21, 2018
- 36.0 MB
- QN902x-SDK
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
