TWR-TWRPI-BD: Tower Plug-In Carrier Module

Overview

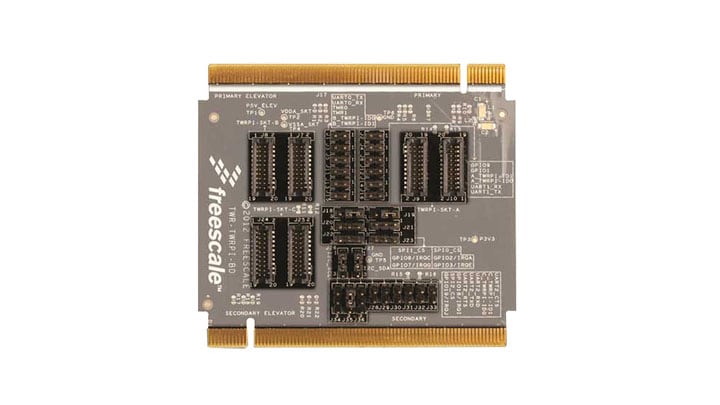

Incorporating sensors, radios and other peripheral elements into your embedded design is easy with the Tower^® Plug-In Carrier Module (TWR-TWRPI-BD).

This peripheral module enables rapid prototyping and evaluation by allowing the addition of up to three general purpose Tower Plug-Ins (TWRPIs), including accelerometers, barometers, radios, and more.

As is standard with all Tower System modules, this peripheral module is interchangeable across the modular development platform and can be used with a variety of existing controller modules, including the TWR-K60D100M and TWR-K70F120M.

MoreLess

TWR-TWRPI-BD: Tower Plug-In Carrier Module

Specifications

Supported Devices

Sensors

MMA8451Q : ±2g/±4g/±8g, Low g, 14-bit Digital Accelerometer

MoreLess

Technical and Functional Specifications

Connectivity	Independent UART interfaces with optional flow control available on sockets A & C Access to Tower^® Plug-In (TWRPI) sockets allowing SPI, I²C, and UART communication interfaces Independent SPI interfaces, each with two selectable follower select signals Selectable I²C-bus shares between all TWRPI sockets Independent selection of GPIO or interrupt functionality
	All signals can be isolated from the Tower System to avoid signal conflicts with additional Tower modules Optional TWRPI ID signals for detection of TWRPI modules

Buy

TWR-TWRPI-BD ^Development
Tower System, Peripheral Module, Plug-In Carrier Board
- TWR-TWRPI-BD board
- Quick Start Guide

TWR-TWRPI-BD
1 @ US
$49.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

Design Resources

Get Started

Quick Start Guide

Tower Plug-In Carrier Module Quick Start Guide
- PDF
- Rev 0
- Sep 21, 2012
- 478.2 KB
- TWRTWRPIBDQSG
- English

Documents ( 1 )

Quick Reference Guide ( 1 )

Documents

Quick Reference Guide ( 1 )

Tower Plug-In Carrier Module Quick Start Guide

The TWR-TWRPI-BD module is part of the Tower^® System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Take your design to the next level and begin prototyping with your Tower System today.
- PDF
- Rev 0
- Sep 21, 2012
- 478.2 KB
- TWRTWRPIBDQSG
- English
