Embedded SW: Battery Cell Controller Software Driver for MC33771C and MC33772C


Click over video to play

Software Details

Select a section:


Software Driver for MC33771C

Software Driver for MC33771C

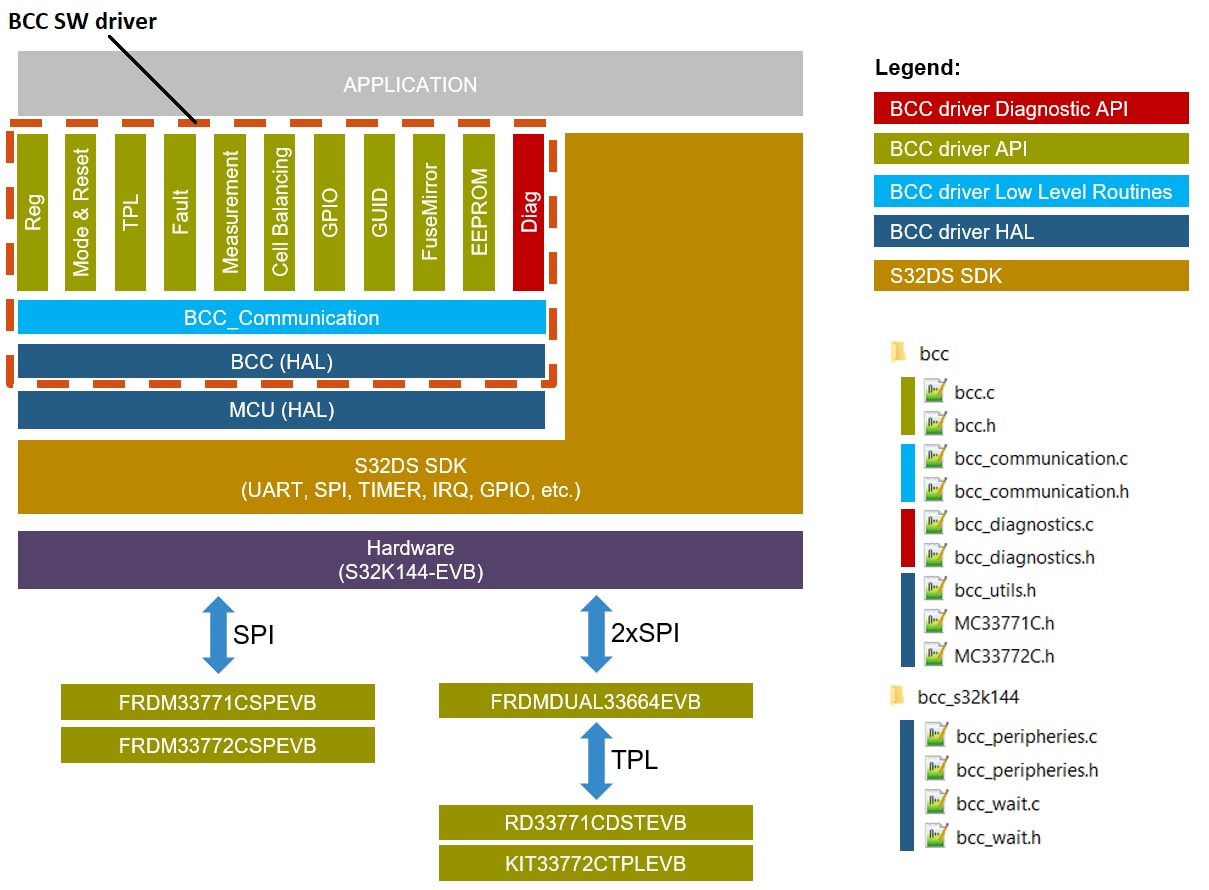

Battery Cell Controller SW Driver

  • Serial peripheral interface (SPI) and twisted-pair line (TPL) communication modes
  • Measuring voltage, current and temperature
  • Handling faults
  • Implementing diagnostics
  • Cell balancing
  • Accessing fuse mirror and (optional) EEPROM

S32 Design Studio for Arm® Example Projects

  • Measurement and diagnostics example
  • FreeMASTER example
  • Dual TPL chain example
  • Loop-back TPL example

Supported Devices

  • MC33664: Isolated Network High-Speed Transceiver
  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC


1 download

  • Examples and Quick Start Software

    BCC SW Driver Package for MC33771C and MC33772C(Lite Version)
