PF502x Embedded Software Driver

PF502x-SW-DRIVER

Roll over image to zoom in

This embedded software solution provides high-level support for PF502x family of PMICs.

The driver provides an abstraction of the device, enabling easy configuration of its functional blocks such as watchdog, regulators, clocks, safety features etc. The driver also provides complete register map of the device.

Implementation of the PF502x software driver is generic, making the driver suitable for any microcontroller fitted with I2C module.

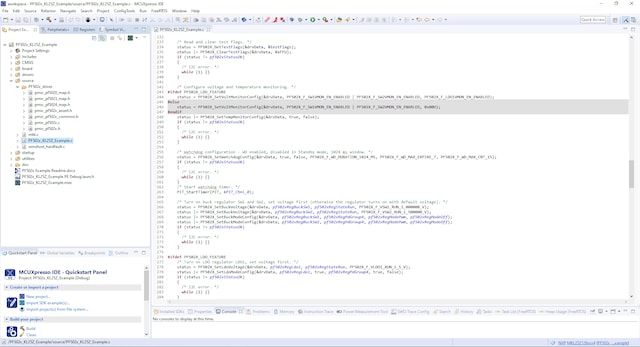

Example project for KL25Z microcontroller is a part of the package.

Features

PF502x SW Driver

  • I2C communication abstraction
  • Watchdog settings and refresh
  • Regulators and safety features configuration
  • Complete register map

MCUXpresso example project

  • Example project for PF502x and KL25Z evaluation board

Supported Devices

  • PF5024: Multi-Channel (4) PMIC for Automotive Applications – 4 High Power, Fit for ASIL B Safety Level
  • PF5023: Multi-Channel (3) PMIC for Automotive Applications – 3 High Power, Fit for ASIL B Safety Level
  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level
