PF502x Socket Programming Board

KITPF502xSKTEVM
Active

Roll over image to zoom in

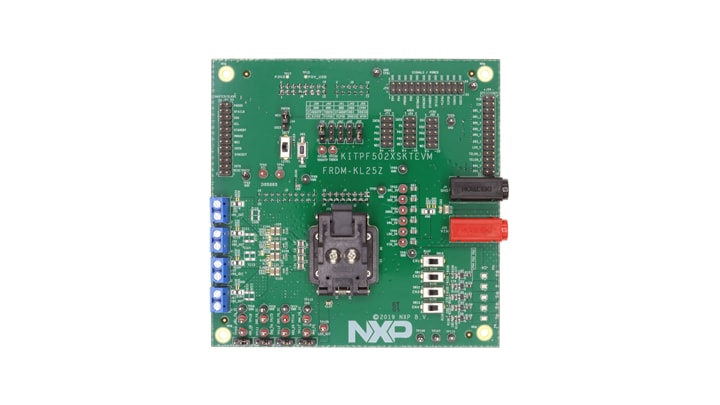

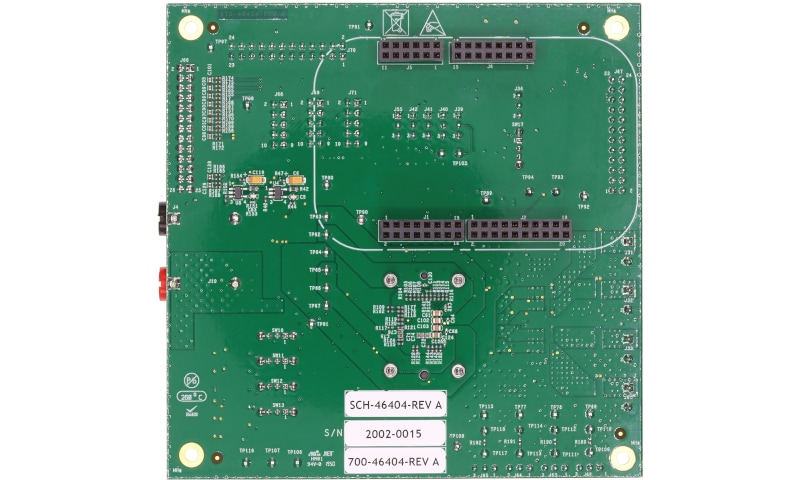

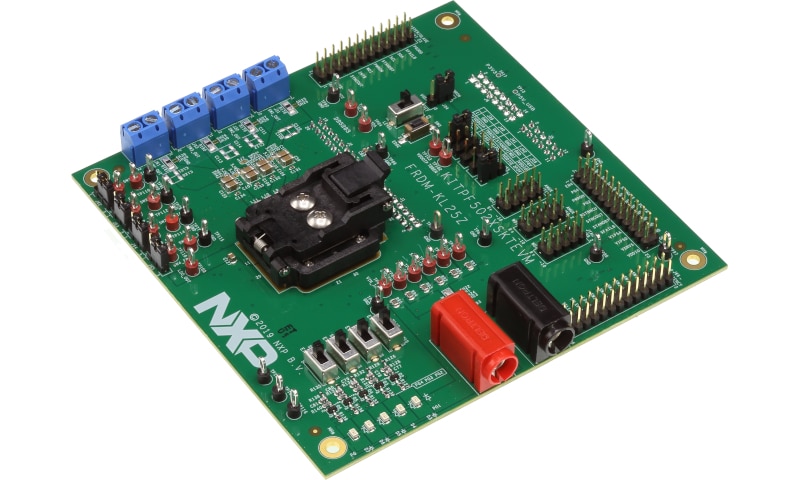

The KITPF502xSKTEVM is a socket programming board/kit.

The kit integrates all hardware needed to fully evaluate the PF502x family of power management integrated circuit (PMIC) products, which includes the PF5020, PF5023, and PF5024. It integrates a communication interface based on the FRDM-KL25Z freedom board to interface with the NXP GUI software to fully configure and control the PMIC.

Supported Devices

Power Management

PMICs

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level
  • PF5023: Multi-Channel (3) PMIC for Automotive Applications – 3 High Power, Fit for ASIL B Safety Level
  • PF5024: Multi-Channel (4) PMIC for Automotive Applications – 4 High Power, Fit for ASIL B Safety Level

Features

PMIC

  • Multi-Output
  • OTP Programmable
  • Fit to ASIL B Safety Level

Software Interface

  • FRDM-KL25Z Board

Connectivity

  • High-Speed I²C through KL25Z

Jumpers and Switches

  • PMIC Enable and IO Control

LEDs

  • PGOOD Indication

Buy Options

KITPF502XSKTEVM-Image

Click to expand

  • KITPF502XSKTEVM
    Active

  • PF502x Socket Programming Board.

    • Assembled and tested KITPF502xSKTEVM
    • Preprogrammed FRDM-KL25Z
    • 3.0 ft. USB-STD A to USB-B-mini cable
  • $303.42 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
