S32 Design Studio for S32 Platform

S32DS-S32PLATFORM

Roll over image to zoom in

The S32 Design Studio for S32 Platform is a complimentary integrated development environment (IDE) for automotive and ultra-reliable Arm®-based microcontrollers and processors that enable editing, compiling and debugging of designs.

The S32DS for S32 Platform offers designers a straightforward development tool with no code-size limitations, based on open-source software including Eclipse IDE, GNU Compiler Collection (GCC) and GNU Debugger (GDB).

NXP software, along with the S32 Design Studio IDE, provides a comprehensive enablement environment that reduces development time.

Software Details

Select a section:

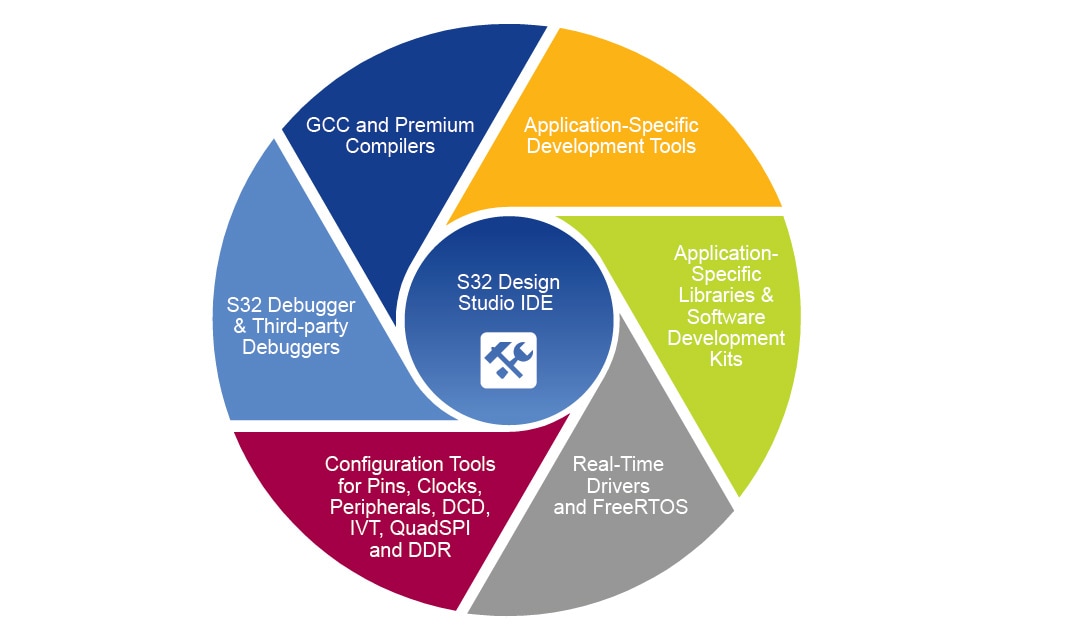

Diagram

S32 Design Studio for S32 Platform

S32 Design Studio for S32 Platform
Get diagram PDF

Features

Main Features

  • NXP GNU toolchain with GCC Compiler (version 6.3.1 20170509) for bare metal Arm 32- and 64-bit and Linux® target
  • NXP GNU toolchain with GCC Compiler (version 9.2.0 20190812) for bare metal Arm 32- and 64-bit and Linux® target
  • Includes NewLib, NewLib Nano, EWL and EWL Nano libraries
  • Semihosting for Arm 32 and AArch64® bare-metal toolchains
  • GDB 7.12.1 with Python support
  • Built-in GDB debugger interface can be used in Eclipse or driven from the command line with support for these interface hardware:
    • S32 Debug Probe
    • P&E Multilink/Cyclone/OpenSDA (with P&E GDB Server)
  • S32 Debug Probe support provided with S32 Debugger and S32 Trace
  • Support for Lauterbach and P&E debuggers
  • S32 Flash Tool for programming user’s image to flash memory
  • S32 Configuration Tool framework with the pin, clock, peripheral, DCD, IVT and DDR configuration tools
  • New Project wizard to create bare metal or SDK projects
  • The wizard to create projects from project examples
  • Peripherals register view
  • Supports Eclipse plugins from the Eclipse eco-system or from partners
  • Support for importing AUTOSAR MCAL configuration to a custom SDK
  • Supports Assembly, C and C++
  • Supports host operating systems (OS):
    • Microsoft Windows® 7/8/10 (64-bit)
    • Ubuntu 16.04 (64-bit), 18.04 (64-bit)
    • Debian 8 (64-bit)
    • CentOS 7 (64-bit)
  • S32DS extensions and updates tool for automatic lookup and on-demand installation of packages adding support for devices and software
  • Vision Extension Package available for S32V234:
    • Visual graph tools to support ISP and APEX accelerators program development
    • PAX/ISP assembler
    • Vision SDK – includes ISP and APEX kernels
    • Linux board support package for A53 core development
    • New Project wizard to create Vision specific projects to include ISP and APEX accelerators programming
    • Several example projects demonstrating ISP and APEX functionalities

Supported Devices

  • S32G3: S32G3 Processors for Vehicle Networking
  • S32G2: S32G2 Processors for Vehicle Networking
  • S32K3: S32K3 Microcontrollers for Automotive General Purpose
  • S32K1: S32K1 Microcontrollers for Automotive General Purpose
  • S32V234: S32V2 Processors for Vision, Machine Learning and Sensor Fusion
  • S32R45: S32R45 High-Performance Processor for Imaging Radar
  • S32K39-37: S32K39/37 Microcontrollers for Electrification Applications
  • S32R41: S32R41 High-Performance Processor for High-Resolution Radar
  • MWCT2xxxS: MWCT2xxxS Microcontroller for Wireless charging Transmitter ICs

Downloads

Filters

1-5 of 46 downloads

  • IDE and Build Tools

    S32 Design Studio 3.4 – Windows/LinuxFeatured

    FLEXERARev 3.4Dec 21, 2020 17:31:001 KBS32DS-3-4
    Download
  • IDE and Build Tools

    S32 Design Studio 3.5 – Windows/LinuxFeatured

    FLEXERARev 3.5Aug 1, 2022 10:04:001 KBS32DS-3-5
    Download
  • BSP, Drivers and Middleware

    S32V2 Vision Extension package 1.3.0 for S32 Design Studio 3.4

    FLEXERARev 1.3.0_D2102Feb 25, 2021 17:40:001 KBSW32V23-S32DS-D
    Download
  • BSP, Drivers and Middleware

    S32DS 3.2 Extension Pack 3.2.1 for S32K2TV MCUs

    ZIPRev 3.2.1Aug 4, 2020 08:45:00523778 KBS32DS-S32K2TV
    Sign in required
    Download
  • BSP, Drivers and Middleware

    Vision Extension Package for S32V2xx v.1.2.0 for S32 Design Studio v.3.3

    FLEXERARev 1.2.0_D2009Sep 23, 2020 16:01:001 KBNXP-APU-COMPILER
    Download
