FreeMASTER Sensor Tool for IoT/Industrial/Medical Sensors

FREEMASTER-SENSOR-TOOL

Roll over image to zoom in

FreeMASTER Sensor Tool is the sensor evaluation, data-visualization and application development software based on NXP FreeMASTER framework for IoT/Industrial/Medical sensors. It provides out-of-box sensor demonstration GUIs for quick sensor evaluation and development framework for end users to extend/create their custom applications.

FreeMASTER Sensor Tool enables quick out-of-box sensor demonstration along with flexibility to allow rapid prototyping to create custom GUIs. This software is integrated with the IoT Sensing SDK embedded software framework using FreeMASTER host communication for supported platforms.

Get started with the FreeMASTER Sensor Tool page

Diagram

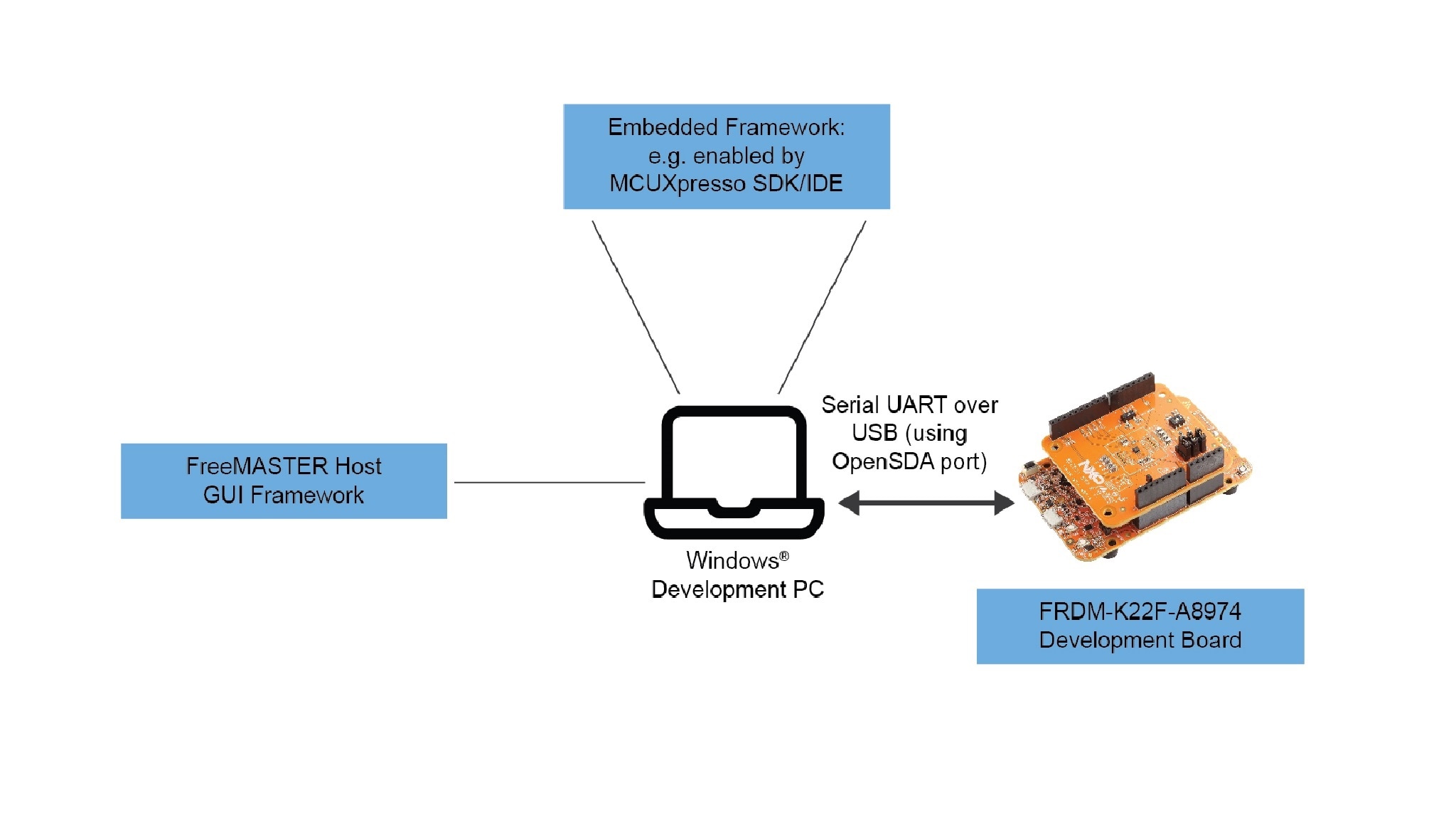

FreeMASTER Sensor Tool Framework

FreeMASTER Sensor Tool Framework
Get diagram PDF

Features

Real-Time Sensor Registers Control

  • Modify memory variables/registers real time
  • Control hardware with Real-time registers, control variables write capability

Real-Time Sensor Output Monitoring

  • Read multiple memory variables at individual sampling rates
  • Display multiple sensor outputs in the oscilloscope/graph view

Sensor Register Page

  • Provides detailed register map for the sensors and allows real-time read and write of register bit fields, allowing detailed sensor evaluation
  • Allows auto-population of sensor register page by uploading csv file

Loss-Less Streaming

  • Character or binary I/O streaming using pipes feature enabling buffering to better utilize the communication line

Out of Box Sensor Demonstration

  • Enables quick visualization of sensor Data and embedded functions based on the preconfigured sensor settings in the ISSDK firmware

Development Platforms Integration

  • Integration with MCUXpresso SDK using ISSDK and FreeMASTER drivers for embedded application development
  • Integration with FreeMASTER v 3.x with flexibility to extend JavaScript-powered HTML control forms. Users can provide an arbitrary collection of open source instrumentation gauges, dials, knobs and sliders to create complex, elegant custom visual dashboards

Supported Devices

  • FXLS8964AF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital Accelerometer
  • FXLS8967AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer
  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer
  • FXLS8471Q: ±2g/±4g/±8g, Low g, 14-Bit Digital Accelerometer
  • FXOS8700CQ: Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer
  • FXLS8962AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer
  • MMA8652FC: ±2g/±4g/±8g, Low g, 12-Bit Digital Accelerometer

Supported Development Platforms

Sensor Kit MCU Board Sensor Shield Board Sensor Demo
FRDM-K22F with FRDM-STBA-A8964 FRDM-K22F FRDM-STBA-A8964 FXLS896xAF
FRDM-K22F with FRDM-STBA-A8967 FRDM-K22F FRDM-STBA-A8967 FXLS896xAF
FRDM-K22F-A8974 FRDM-K22F FRDM-STBI-A8974 FXLS8974CF
FRDM-K64F-AGM01 FRDM-K64F FRDM-STBC-AGM01 FXOS8700CQ
FRDM-K64F-AGM04 FRDM-K64F FRDM-STBC-AGM04 MMA8652FCR1
FRDMKL27-A8471 FRDM-KL27ZF FRDMSTBC-A8471 FXLS8471QR1
FRDM-K22F-AGMP03 FRDM-K22F FRDM-STBC-AGMP03 FXLS896xAFR1
