Let's take your DEVKIT-S12ZVL for a test drive!

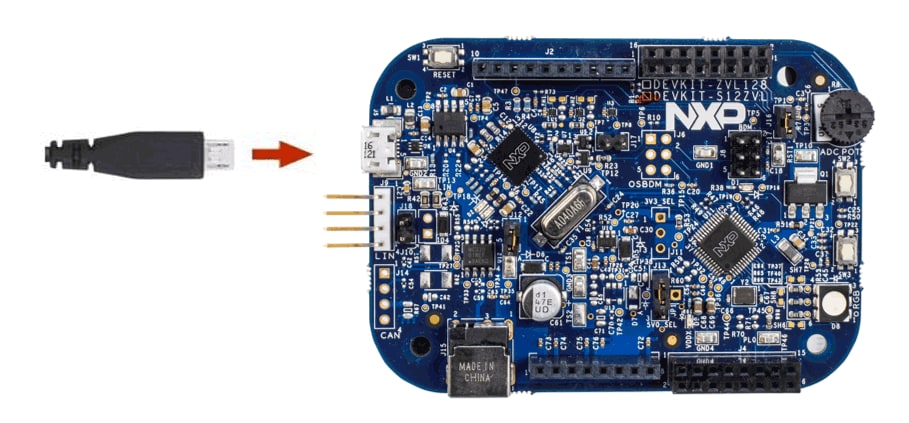

1.1 Attach the USB Cable

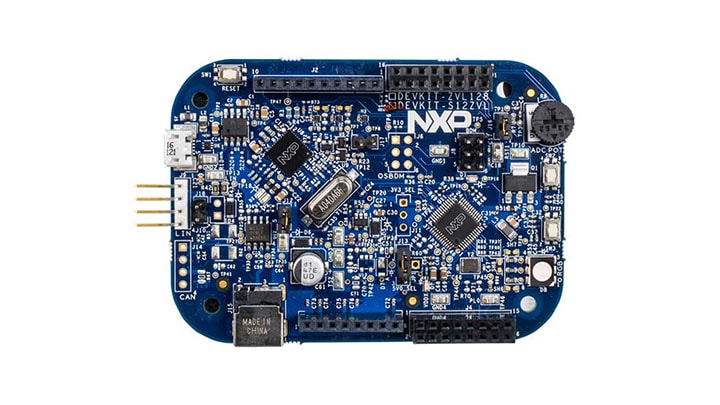

1.2 Run the Out-of-Box Demo
Your DEVKIT-S12ZVL comes pre-loaded with a simple code example that is switching the color of the LED.
1.3 Review DEVKIT-S12ZVL Quick Start Guide (QSG) for Detailed Setup
2.1 Jump Start Your Design by getting started with Quick Start Guide and Software Integration Guide within Quick Start Package
2.2 Install CodeWarrior v11.0
CodeWarrior Development Studio for NXP HCS12 Microcontrollers enable you to build and deploy HCS12 or HCS12X/XGATE systems quickly and easily.
2.3 PC Configuration
Once you connected your DEVKIT-S12ZVL to your PC, the drivers of your board will start to installed, please wait while are installed and do not unplug it.
Learn how to create a new project in CodeWarrior v5.1 and the basics to create your own code by running an easy example code.
3.1 Create a new project in CodeWarrior v5.1
Follow the steps to create a new project in your workspace and load the configuration for your target device
3.2 Create, build and run your application
Create a hello world code within minutes and watch it working in your DEVKIT-S12ZVL board. Check the details in this video and you'll be flashing your board in few minutes.
3.3 Build, Download, Run
