CAN SIC Evaluation Board

UCANS32K1SIC

Click over video to play

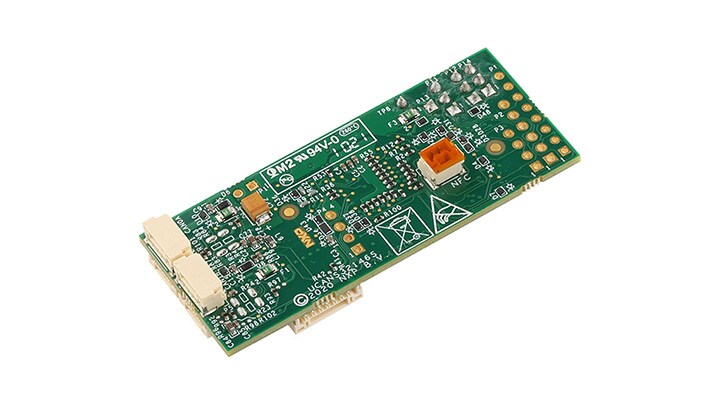

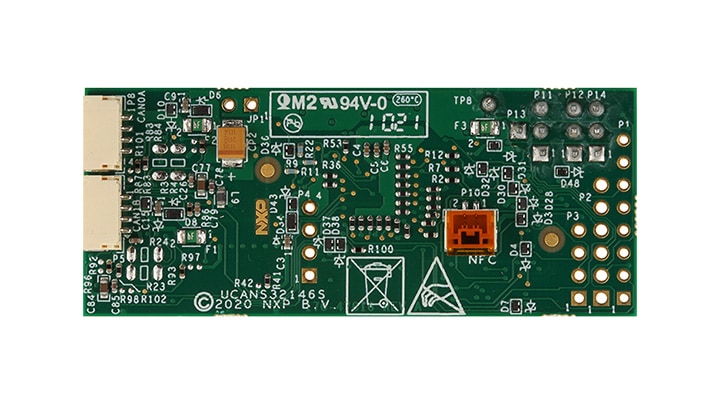

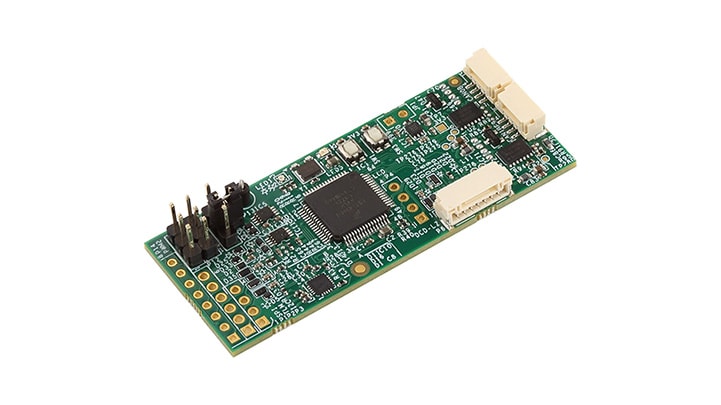

The UCANS32K1SIC is a CAN signal improvement capability (SIC) evaluation board designed for both automotive and industrial applications. CAN SIC enables more complex networks and CAN FD communication up to 8 Mbps by reducing the effects of signal ringing.

The UCANS32K1SIC provides two CAN SIC interfaces and is based on the 32-bit Arm® Cortex®-M4 based S32K1 microcontroller family with access to ports on the processor. Also, the UCANS32K1SIC features EdgeLock® SE050 secure element for authentication and encryption development.

Product Details

Select a section:

Block Diagram

UCANS32K1SIC Block Diagram

UCANS32K1SIC Block Diagram
Get diagram PDF

Supported Devices

Security and Authentication

Authentication

  • SE050: EdgeLock® SE050: Plug and Trust Secure Element Family – Enhanced IoT security with high flexibility

Interfaces

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

UCANS32K1SIC Features

  • Dual CAN FD PHYs with dual connectors for daisy chain operation
  • PX4 / DroneCode connector standard compliant
  • DCD-LZ debug interface with SWD+Console / UART
  • RGB LED
  • Programmable user buttons (e.g., for arming)

Interfaces

  • UART with full handshaking and 5 V / 3 V switchable voltage level
  • SocketCAN CAN network driver
  • I2C, SPI
  • RC-PWM power output with internal or BEC / external power

Power

  • 5 V
  • Overcurrent protection

Runtime Software

  • S32 Design Studio IDE for Arm: SDK, Bare metal drivers, and FreeRTOSTM
  • UAVCAN V1 protocol support: LibUAVCAN, LibCANARD
  • SLCAN interface supporting UAVCAN debug on PC
  • NuttX RTOS support
  • PX4 autopilot open source flight control vehicle stack

Buy Options

  • KIT-UCANS32K1SIC

  • CAN SIC Evaluation Board.

  • UCANS32K1SIC development system

    • 2 x UCANS32K1SIC boards
    • 2 x CAN-TERM-BRD w/cable (RevB w MicroUSB) (power supply via CAN terminator)
    • 2 x DCD-LZ debug adapter /w cable
    • 2 x FTDI USB-UART cables (translated to USB connected with PC)
    • 1 x Segger Jlink mini EDU debugger (program and debug)​
    • 2 x CAN cable with both ends (JST-GH 4 pin 200 mm)
    • 1 x Amotech NFC Antenna
  • $139.55 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

  • UCANS32K1SIC

  • CAN SIC Evaluation Board.

  • UCANS32K1SIC evaluation board for automotive and industrial applications

    • 1 x UCANS32K1SIC board
    • 1 x DCD-LZ debug adapter w/cable (console and program)
    • 1 CAN-TERM-BRD w/ cable (RevB with MicroUSB input)
    • 1 CAN cable with both ends (JST-GH 4 pin 200 mm)
  • $46.52 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
