PCA8537 and PCF8537 Evaluation Board

OM13500A
End of Life

Roll over image to zoom in

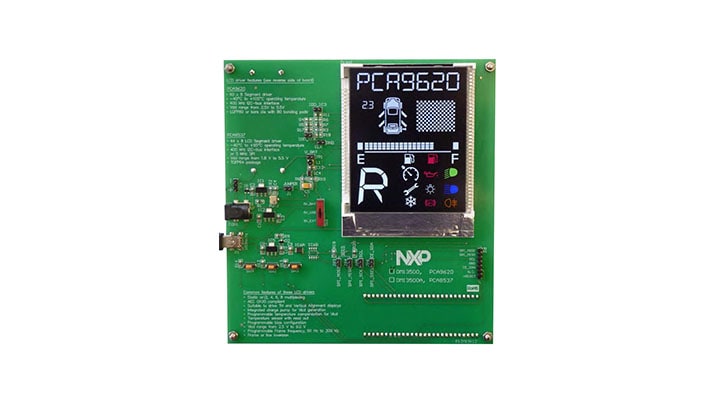

The OM13500A is an LCD demo board which can be used to demonstrate and evaluate the PCA8537 and PCF8537 segment driver. The board is controlled by an LPCXpresso micro controller board, which contains the LPC1115, a Cortex M0 controller. A free IDE can be downloaded in order to modify the software. Supply of the board can be via two AA batteries, an AC adapter or USB.

Product Details

Supported Devices

Interfaces

LCD Drivers

  • PCA8537: Automotive LCD Driver for Multiplex Rates Up to 1-8
  • PCF8537: Industrial LCD Driver for Multiplex Rates Up to 1-8

Features

Microcontroller

  • Plugged in OM13035 LPCXpresso board with LPC1115 microcontroller

Power Management

  • Power supply can be either using 2 AA-batteries, via USB or via an AC adapter/external power supply. This can also be used for external VLCD

Display

  • Demonstrates PCA8537 and PCF8537 (TQFP64) LCD driver
  • Features a vertical alignment (VA) display module with integrated backlight

User Components

  • 3 push buttons

Tools and OS Support

  • User modifiable firmware, In-System/In-Application Programming (ISP/IAP) via USB

Buy Options

OM13500A-Image

Click to expand

OM13500A
End of Life

PCA8537 and PCF8537 evaluation board.
