Universal LCD Driver for Low Multiplex Rates

PCF8562TT Active
  • This page contains information on a product that is not recommended for new designs.

The PCF8562 is a peripheral device which interfaces to almost any Liquid Crystal Display (LCD) with low multiplex rates. It generates the drive signals for any static or multiplexed LCD containing up to four backplanes and up to 32 segments. The PCF8562 is compatible with most microcontrollers and communicates via the two-line bidirectional I²C-bus. Communication overheads are minimized by a display RAM with auto-incremented addressing, by hardware subaddressing and by display memory switching (static and duplex drive modes).

PCF8562TT should not be used for new designs. Recommended replacement: PCF85162T

See product image

Product Details

Block Diagram

Choose a diagram:

PCF8562

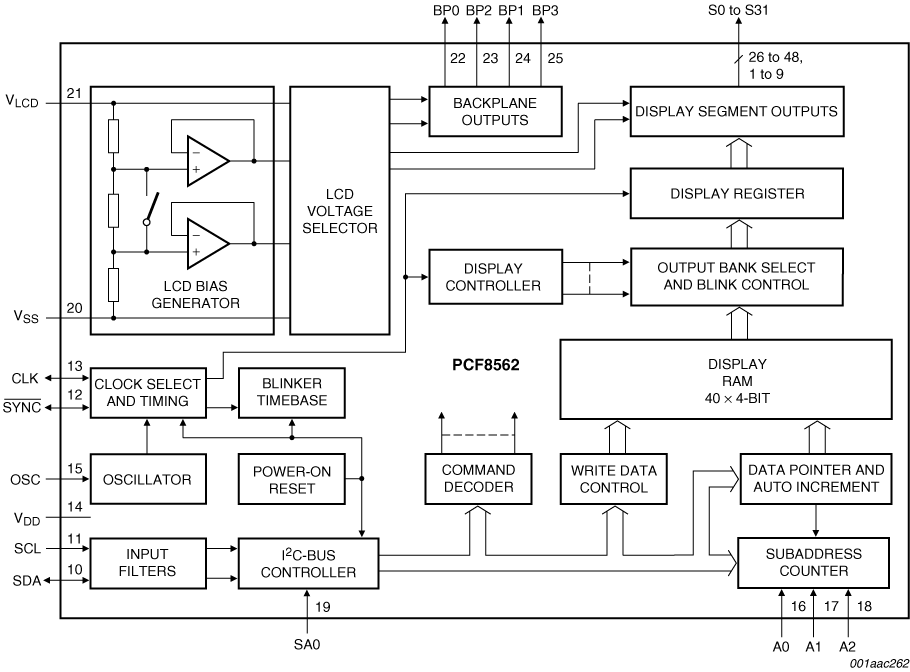

PCF8562 Block Diagram

PCF8562TT

Get diagram PDF

Features

Key Features

  • AEC-Q100 compliant (PCF8562TT/S400/2) for automotive applications
  • Single chip LCD controller and driver
  • Selectable backplane drive configuration: static, 2, 3, or 4 backplane multiplexing
  • Selectable display bias configuration: static, ¹/2, or ¹/3
  • Internal LCD bias generation with voltage-follower buffers
  • 32 × 4-bit RAM for display data storage
  • Auto-incremented display data loading across device subaddress boundaries
  • Display memory bank switching in static and duplex drive modes
  • Versatile blinking modes
  • Independent supplies possible for LCD and logic voltages
  • Wide power supply range: from 1.8 V to 5.5 V
  • Low power consumption
  • 400 kHz I²C-bus interface
  • No external components required
  • Manufactured in silicon gate CMOS process

32 Segment Drives

  • Up to sixteen 7-segment numeric characters
  • Up to eight 14-segment alphanumeric characters
  • Any graphics of up to 128 elements

Wide Logic LCD Supply Range

  • From 2.5 V for low-threshold LCDs
  • Up to 6.5 V for guest-host LCDs and high-threshold twisted nematic LCDs
