Automotive Sensors Tower® System Module

TWR-SENSOR-PAK-AUTO

Roll over image to zoom in

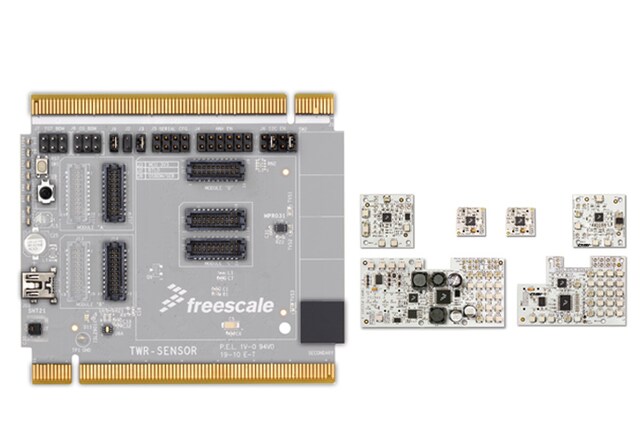

The TWR-SENSOR-PAK is a module in the Tower® System that features swappable sensor modules, or plug-ins. The plug-ins allow you to rapidly evaluate and compare an expanding portfolio of Sensors using real-time sensor data and interaction with your environment.

  • As new NXP® sensors are announced, the TWR-SENSOR-PAK module allows you to leverage additional low-cost sensor plug-ins or create your own plug-ins using I²C, SPI, or analog
  • With a dedicated S08QE96 MCU on board, the TWR-SENSOR-PAK module can be used stand-alone or as part of a complete Tower System

Product Details

Features

SPI Boards

  • TWRPI-MMA6900 with:
    • 2-Axis High Accuracy Low g Inertial Sensor MMA69xxKQ
  • TWRPI-MMA6800 with:
    • 2-Axis SPI Medium g 10-bit Inertial Sensor MMA68xxQ
  • TWRPI-MMA6500 with:
    • 2-Axis SPI Medium g 12-bit Inertial Sensor MMA65xx

DSI2.5 Boards

  • TWRPI-DSI2.5 with:
  • TWRMOD-MMA2600 with:

PSI5V1.3 Boards

  • TWRPI-PSI5V1.3
    • Airbag System Basis Chip(SBC) MC33789
  • TWRMOD-MMA5000
    • MMA51xx: PSI5 Z-Axis Xtrinsic Airbag Sensor
    • MMA52xx: PSI5 X-Axis Xtrinsic Airbag Sensor
