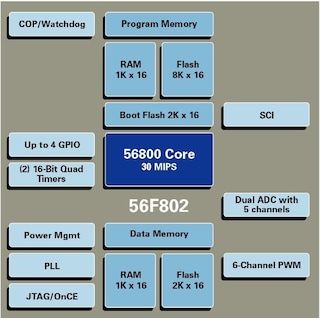

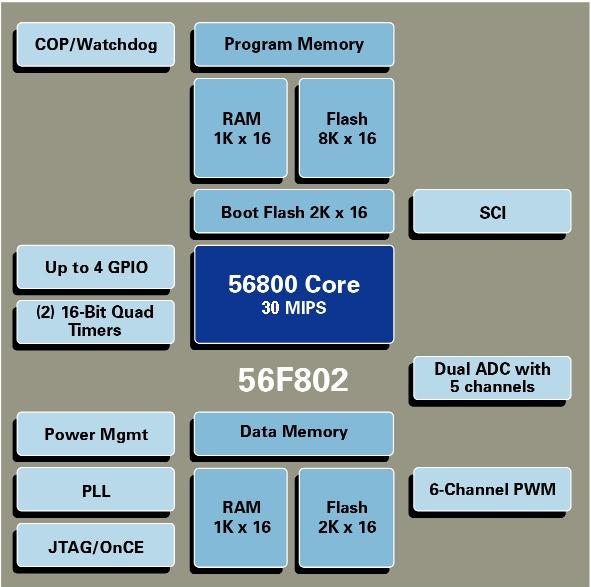

Join our teamThe 56F802TA60, a member of the 56800 core-based family of Digital Signal Controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. This creates an extremely cost-effective solution for a wide variety of motion control, power supply and control applications.
The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP- and MCU-style applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications.
Archived content is no longer updated and is made available for historical reference only.
Up to 30 MIPS opeartion at 60MHz core frequency
Up to 30 MIPS opeartion at 60MHz core frequency
