PC Evaluation Board for the I²C-bus RTC PCF85363A

OM13514
Active

Roll over image to zoom in

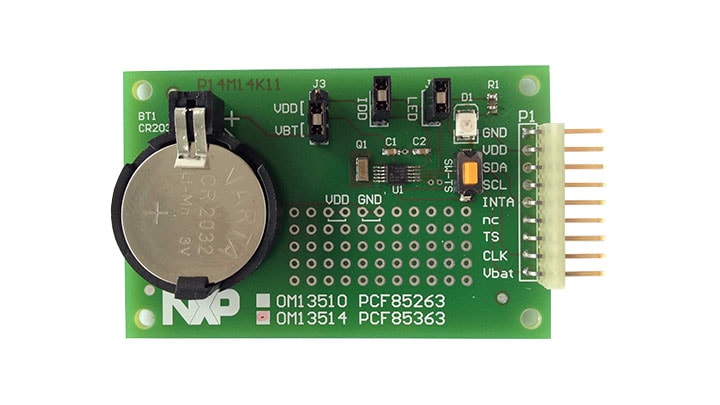

The OM13514 is the ideal evaluation and demo board to be used in the design phase of any project; just power and I²C-bus must be connected.

Product Details

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF85363A: Tiny Real-Time Clock/Calendar with 64 B RAM, Alarm Function, Battery Switch-Over Time Stamp Input and I²C-Bus

Features

Key Features

  • Battery back-up
  • 2 alarm facilities with 2 configurable interrupt outputs
  • Time stamp
  • 64 Bytes of RAM
  • Tracking time or stopwatch, with 1/100 s resolution
  • A scratch pad area is available to host some custom circuitry

Power Management

  • Battery on board for autonomous operation:
    • Can be switched off by placing Jumper J3 to VDD
  • Easy measurements of power consumption:
    • Jumper J2 to open, to link in a μA-meter

Connectivity

  • Connector P1 100 mil (2.54 mm) pin pitch
  • Access to all pins

Components

  • Push bottom SW-TS to trigger timestamp
