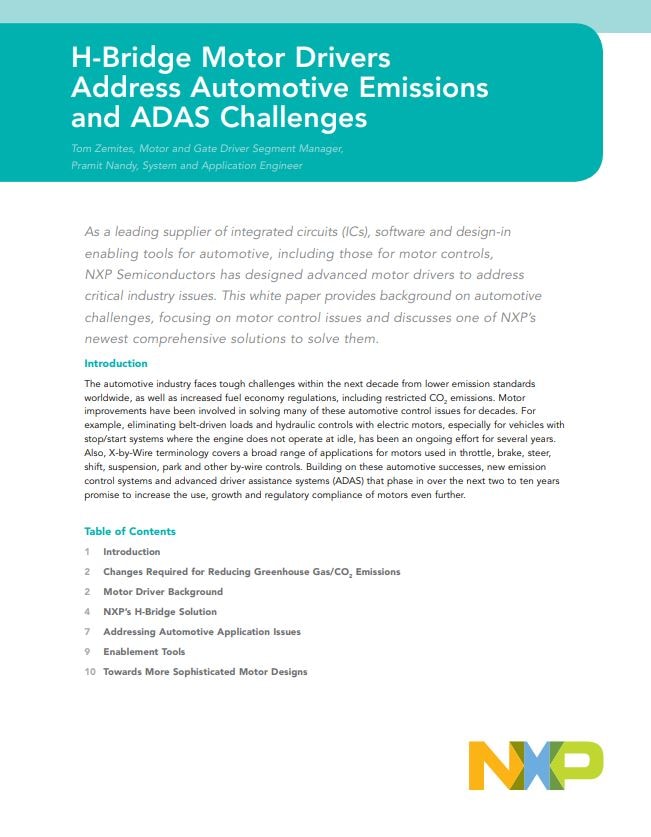

H-Bridge Motor Drivers Address Automotive Emissions and ADAS Challenges
Background on automotive challenges, focusing on motor control issues.
- Processors and Microcontrollers
- Identification and Security
- Analog
- Media and Audio
- Power Management
- RF
- Sensors
- Wireless
- Automotive Products
- Product Information
BLDC, H-Bridge, and Stepper Motor Drivers
NXP offers multiple driver solutions for automotive, commercial and industrial applications. For brushed DC and stepper motors, we offer fully integrated H-Bridge and dual H-Bridge products. For applications requiring external MOSFET's, we offer gate drivers for Brushed DC and BLDC motors.
| Product Type | Description | Featured Products |
|---|---|---|
| BLDC Gate Driver | NXP's three-phase MOSFET pre-driver with extended 60V range, fast and powerful gate in new small (8x8) HVQFN package for automotive applications. | MC33GD3000 |
| BLDC Gate Driver | NXP's three-phase MOSFET pre-driver with extended 60V range, fast and powerful gate in new small (8x8) HVQFN package for industrial applications. | MC34GD3000 |
| Integrated H-Bridge | NXP's new advanced H-Bridge Motor Driver family SPI programmable, multi-packages, ISO26262 ASIL B/D certified with 120 mohm typical RDS(ON) for high safety applications. | MC33HB2000 |
| Integrated H-Bridge | NXP's new advanced H-Bridge Motor Driver family SPI programmable, multiple packages, ISO26262 ASIL B/D certified with 65 mohm typical RDS(ON) for high safety applications. | MC33HB2001 |
| Integrated H-Bridge | NXP's continues to innovate by releasing new smaller packages using highly conductive epoxy for excellent thermal performance. | MC33926ES |
What's New
Embedded Analog Software
SPI H-Bridge based on HB2000/HB2001. KSDK and S32 SDK are supported.
We and the HB2001 at APEC 2016
Tom Zemites showcases the all-new HB2001 Advanced Motor Drivers live at APEC 2016.
