DSC Evaluation Board

MC56F8037EVM No Longer Manufactured

Roll over image to zoom in

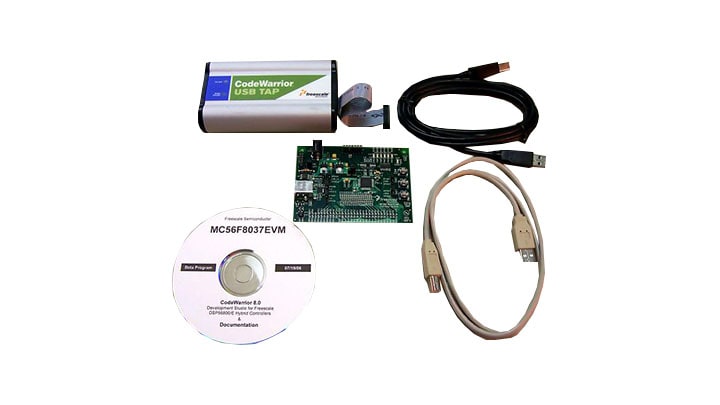

The MC56F8037EVM evaluation module allows easier and faster development for the NXP® 56F802x and 56F803x digital signal controllers. The module includes an MC56F8037 digital signal controller, RS-232 interface, user LEDs, user push button switches and a daughter card connector.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

  • 56F802X: Digital Signal Controller for Auto and Industrial Applications
  • 56F803X: Digital Signal Controller with CAN for Industrial Applications

Features

Connectivity

  • Built-in circuitry for RS-232 communication
  • Daughter card connectors.

User components

  • User LEDs
  • User push-button switches

Expansion Port

  • Motor control daughter card (APMOTOR56F8000E)
  • Flash programming socket daughter card for MC56F8013 (CPA56F8013E)
  • Flash programming socket daughter card for MC56F8014 (CPA56F8014E)
  • USB to JTAG adapter (USB-TAP) (CWH-UTP-ONCE-HE)
