i.MX8 Software Image Signal Processing

SOFTISP-I.MX8
The software image signal processing (SoftISP) includes five functions that are executed on the GPU of the NXP® i.MX 8 family device: bad pixel correction, white balance, histogram equalization, high-quality demosaicing and high-quality noise reduction. This pipelined image-processing engine, designed to take in high-speed video streams, is optimized for the on-chip GPU using two computing standards, OpenCL™ 1.2, and OpenVX™ 1.1.

Block Diagram

Software Image Signal

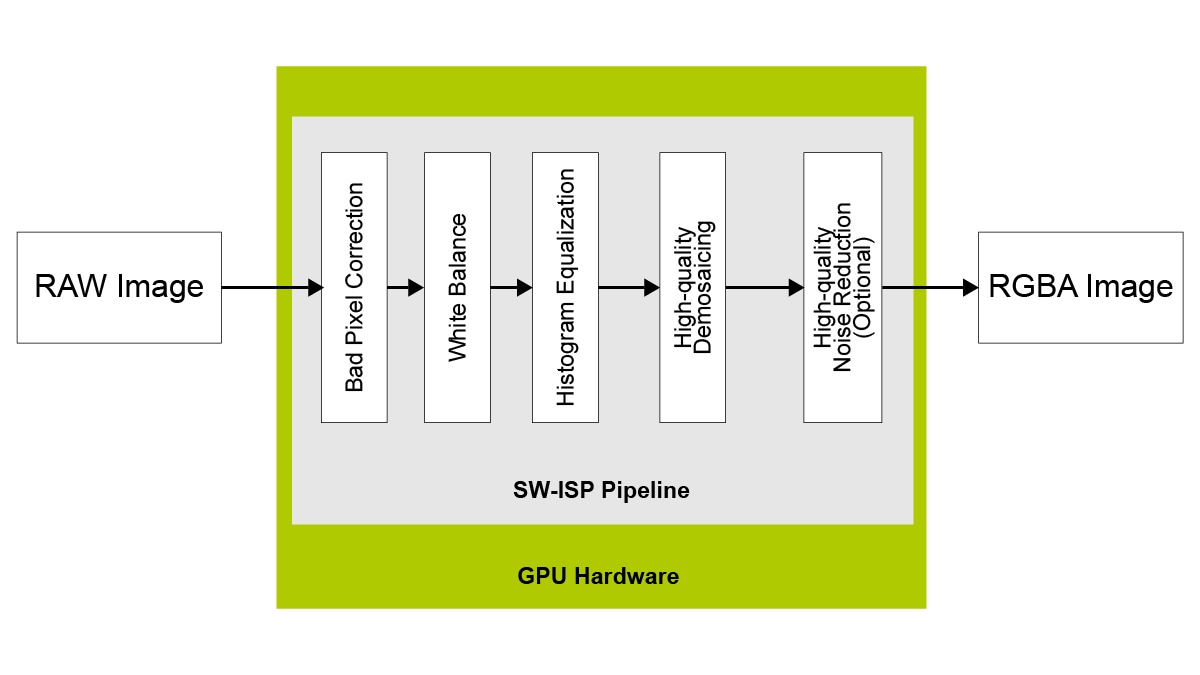

SoftISP Pipeline Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8: i.MX 8 Family – Arm® Cortex®-A53, Cortex-A72, Virtualization, Vision, 3D Graphics, 4K Video

Features

  • Supports the i.MX 8 family devices
  • Supports five ISP functions
  • Supports different function combinations (each ISP function is independent)
  • Off-line application - input raw images are captured by Bayer camera
  • Ported under graphics framework
  • Software
    • Linux OS-based application
    • SW-ISP pipeline optimized by OpenCL 1.2 and OpenVX 1.1
    • High application video performance (OpenVX ~43fps/1080p)

Buy Options

MCIMX8-8X-BB-Image

Click to expand

  • MCIMX8-8X-BB

  • i.MX 8QuadXPlus Multisensory Enablement Kit (MEK) Base Board.

  • $603.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MCIMX8QM-CPU-Image

Click to expand

  • MCIMX8QM-CPU

  • i.MX 8QuadMax Multisensory Enablement Kit (MEK).

  • $1206.35 USD
  • For a quantity of 1
Order from distributors
