TEF810x Fully-Integrated 77 GHz Radar Transceiver
TEF810X Receive alerts

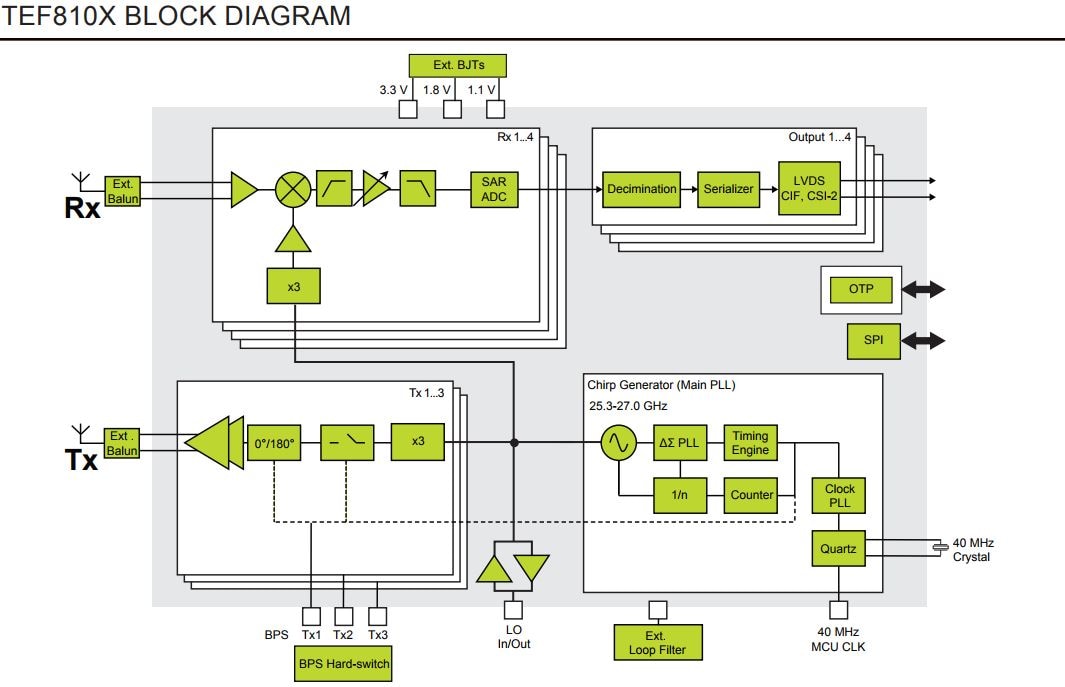

The TEF810X is a fully integrated single-chip RFCMOS 77 GHz automotive FMCW radar transceiver. This device is intended for usage in short-, medium- and long-range radar applications covering the full automotive radar frequency band from 76 GHz to 81 GHz. TEF810X radar transceiver is a low power radar transceiver which integrates 3 transmitters, 4 receivers, Analog-to-digital converters and low phase noise Voltage Controlled Oscillator (VCO).
This automotive radar device enables several key driver assistance and safety applications as listed below:
- Autonomous Emergency Braking (AEB)
- Adaptive Cruise Control (ACC)
- Blind-spot Detection/monitoring (BSD/BSM)
- Rear Cross Traffic Alert (RCTA)
- Front Cross Traffic Alert (FCTA)
- Rear Collision Avoidance (RCA)
- Parking Assist (PA)
- Rear Occupant Detection/Alert (ROD/ROA)
- Cocoon Radar
- Imaging Radar
Product Details
Features
System Features
- Fully integrated RFCMOS Radar Transceiver for 76-81 GHz
- 3 TX (w/BPSK), 4 RX Channels
- Optimized for Fast Chirp Modulation
- Support for 2 GHz bandwidth, 4 GHz with chirp stitching
- Automotive junction Temperature Range -40°C up to 135°C
- Support cascading of TEF810X devices for Imaging Radar
- CSI-2, CIF, and LVDS Interface
- Developed in accordance with ISO 26262 SEoOC methodology. Supporting ASIL B applications
- Built-in functional safety monitoring circuit
- Low power dissipation < 1.2 W

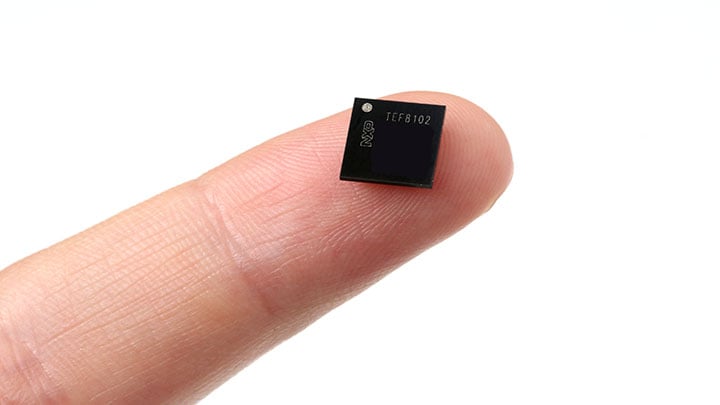

- Very small footprint : 7.5mm x 7.5mm eWLB package with 15 x 15 sized Ball Grid Array (BGA)
Product Longevity Program
- This product is included in the NXP Product Longevity program ensuring a stable supply of products for your embedded designs.
SafeAssure
When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies
system-level safety requirements in accordance with ISO 26262.
