MRKIII Tool Chain, SDK and C-Compiler

OM671x

Roll over image to zoom in

The OM6717 MRKIII Tool Chain - Software Development Kit “SDK”, is designed for the development of MRK III projects.

The SDK MRKIII provides the tools necessary to build MRK III-based projects:

  • MRKIII Tool chain (C-Compiler and linker) for building applications
  • For download and debugging options, the OM6718/5 (2-link) interface is mandatory and can be ordered in addition below

Product Details

Select a section:

Features

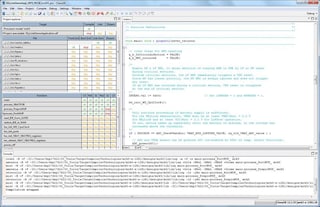

OM6717 MRKIII Tool Chain

  • Software Development Kit
  • Includes Code Editor, C-Compiler (Chess), Assembler (Darts), and Linker(Bridge)
  • Compatible to OM6718/5 MRKIII hardware debugger
  • Uses hardware debugging with OM6718/5
  • Operate on Windows 11, 10 and Linux

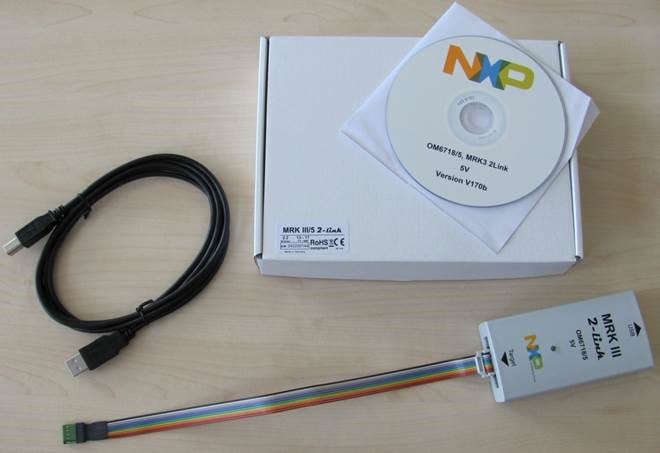

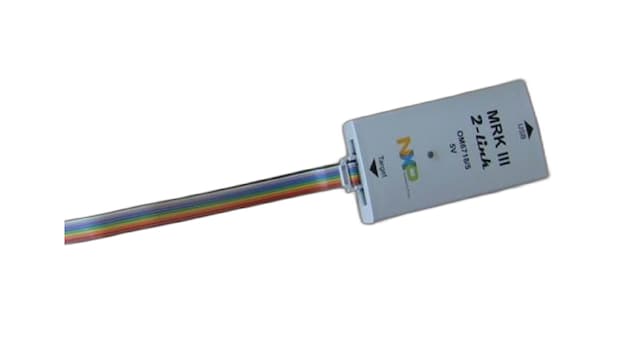

OM6718/5 (MRKIII 2-Link, Universal Download and Debug Board) Hardware Debugger

  • MRKIII 2-link is an all-in-one development and debug interface for the MRKIII microcontroller
    • Communicates with MRKIII target via monitor and download interface (MDI)
    • Allows access to the PC via USB interface
    • Operates for 3 V and 5 V devices
    • Requires 1 USB port on the PC
  • MRKIII 2Link software can be downloaded from NXP website

Buy Options

OM6717-Image

Click to expand

  • OM6717

  • MRKIII Tool Chain, SDK and C-Compiler.

  • Kit Contains:

    • OM6717, MRKIII Tool Chain, SDK and C-Compiler
    • Software CD containing: "IP Programmer for MRKIII" installer, end user license agreement, documentation

    Note:
    2 license versions are available:

    • OM6717 - Perpetual license with 1 year support service
    • OM6717/ANLI - Time based license valid for 1 year (including support service)
Buy Options
OM67117-Image

Click to expand

  • OM67117

  • MRKIII Tool Chain, SDK and C-Compiler.

  • Kit Contains:

    • OM67117, Flexible MRKIII Tool Chain, SDK and C-Compiler
    • Software CD containing: "IP Programmer for MRKIII" installer, end user license agreement, documentation

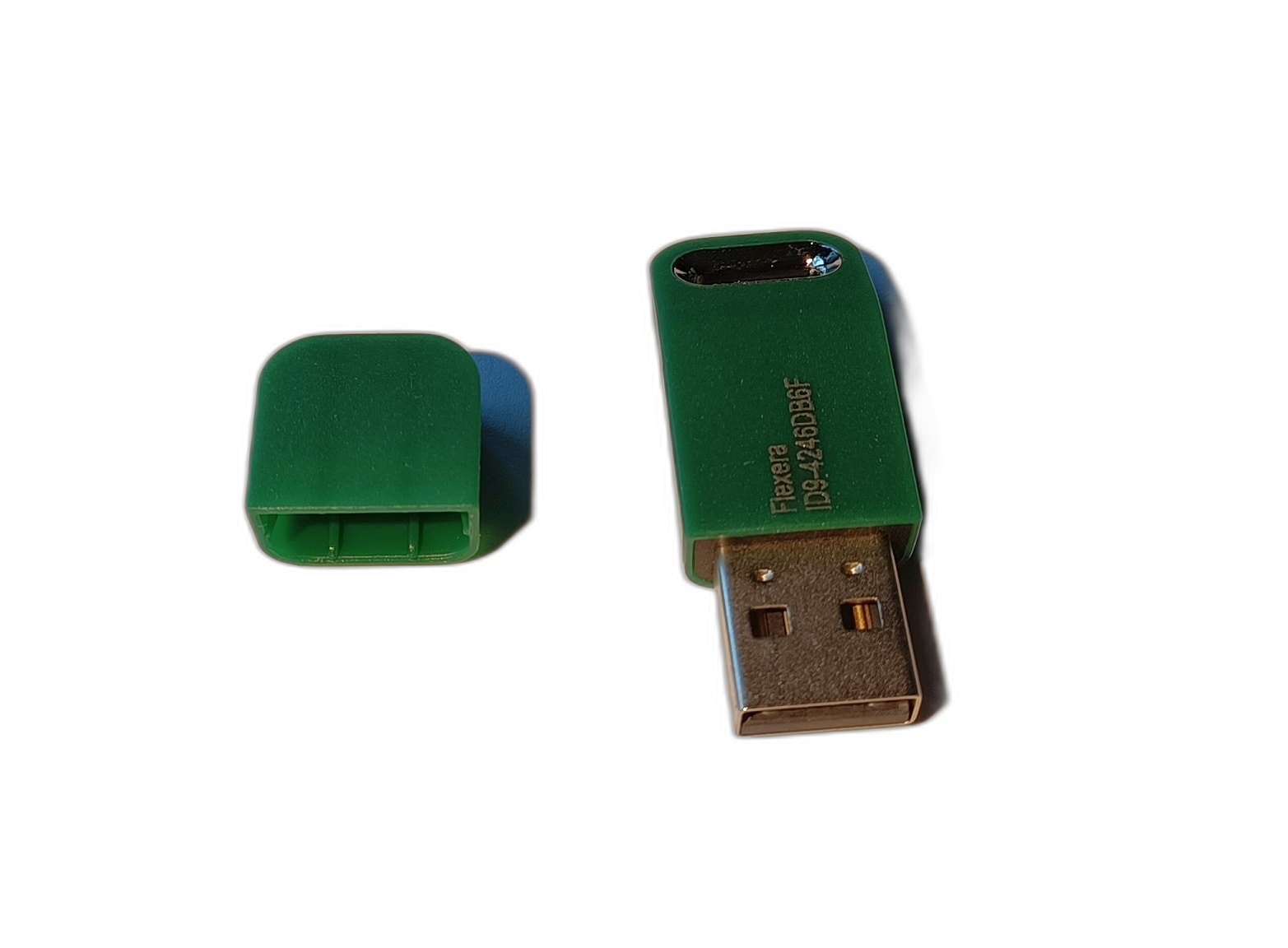

    • FlexNet ID Dongle (USB) with time based license valid for 1 year (including support service)
  • $2000.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 12
    • Shipping: Normally ships 1-2 business days
Buy from NXP
OM6718-Image

Click to expand

  • OM6718

  • MRKIII Tool Chain, SDK and C-Compiler.

  • Kit Contains:

    • Hardware debugger
    • Standalone programming hardware
    • Compatible to OM6717 and OM67117
  • $520.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
