OM6716, TED-Kit 2 with Optional RF Extension Board

OM6716
Active

Roll over image to zoom in

TED-Kit 2 is the second generation of the NXP transponder evaluation and demonstration kit. The TED-Kit 2 system contains hardware and software used to evaluate and demonstrate the base station (ABIC 1) and transponder functionality of NXP for RKE or PKE Applications the RF extension board (OM6716/434) has to use.

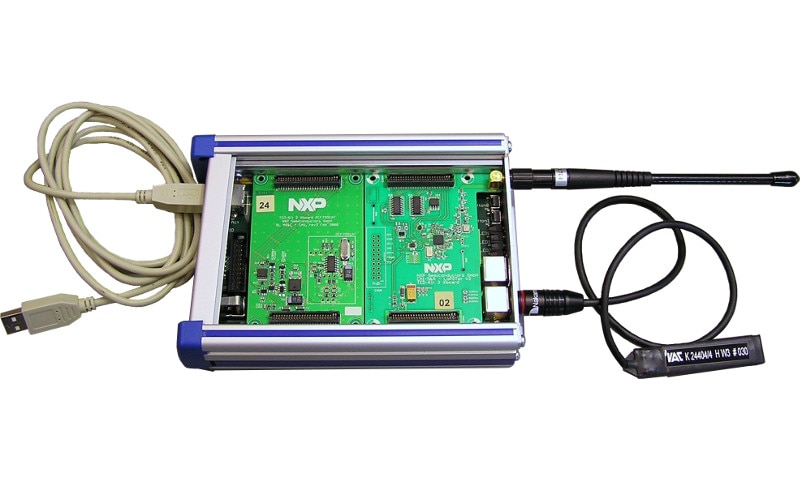

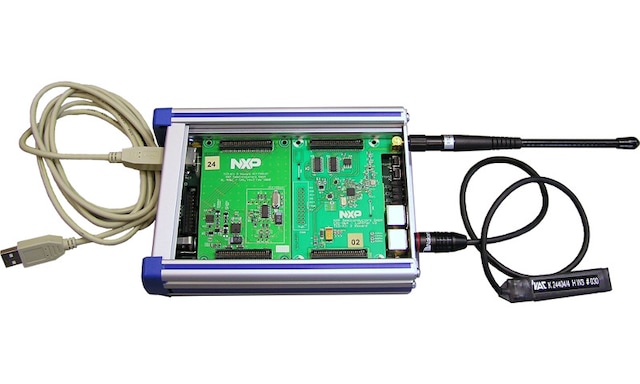

The RF extension board is optional and must be added to the Xslot 2 of the TED-Kit 2 main board. The TED-Kit 2 software is running on Windows operating systems and connects with the TED-Kit 2 box via USB.

Product Details

Features

Evaluation Tool for NXP‘s Car Access and Immobilizer Products

  • Transponder, HT2, HT2-E, HT3, HT-AES, HT-PRO
  • Basetstation, ABIC1
  • RF transceiver, LoPSTer

Platform for Reference Design / Demonstrator Developments

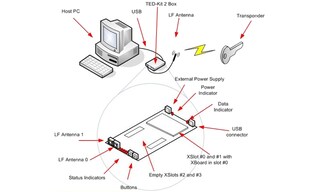

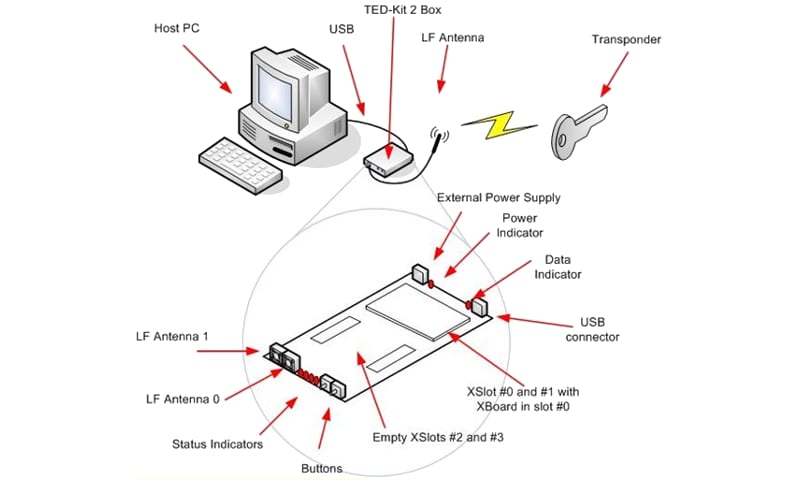

  • Broad modularity and extensibility using XSlot / XBoard concept
  • Windows application supports simultaneous operation of unlimited number of TED-Kit 2 boards
  • Allows full configuration of transponders for reference design evaluations
  • Fully documented including firmware source code and application examples

Programming Device for Customer Application

  • USB 2.0 interface allows paralleled programming
  • Application programming interface library (API DLL) including examples

Buy Options

OM6716-Image

Click to expand

  • OM6716
    Active

  • TED-Kit 2 with Optional RF Extension Board.

  • Kit Contains:

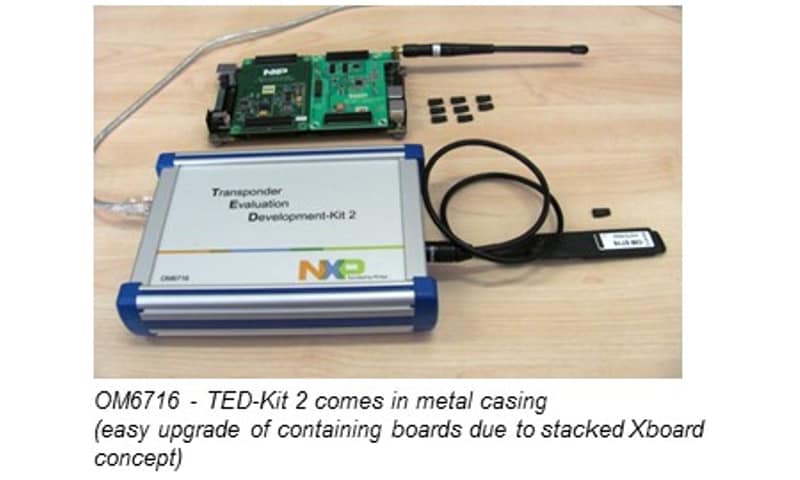

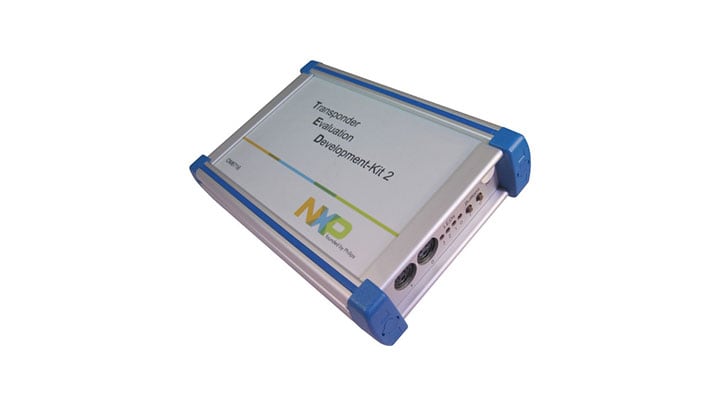

    • TED-Kit 2 in metal housing, equipped with a PCF7991AT (ABIC1)
    • LF antenna
    • Various transponder samples
    • USB cable
    • Leaflet with quick start instructions
    • TED-Kit 2 Software installation package downloadable after registration
    • OM6716, 599: TED-Kit 2 in metal housing
    • OM6716 / 434, 599: RF extension board (optional)

    Note: A non-disclosure agreement (NDA) is required in order to access the OM6716 software.

    For Software installation instructions please contact: OM6716.support@nxp.com
