DSI3/SPI Automotive Safety Digital Accelerometer
Compact List
Angular Rate and Acceleration Combo Sensors: Auto Combinational Generation 1 Sensors
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
The NCS101xx family is the first generation of active safety sensors for vehicle stability control.

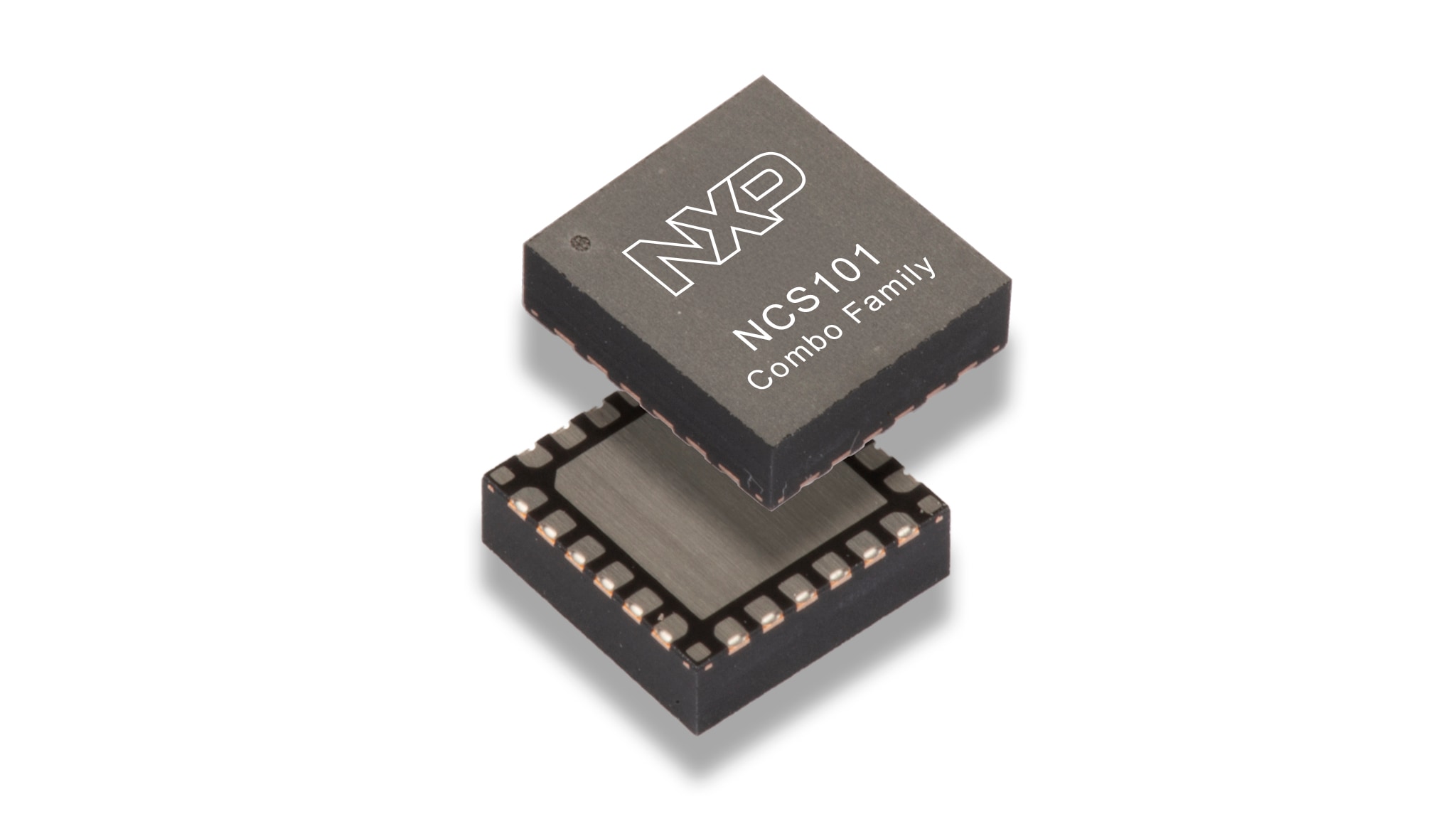

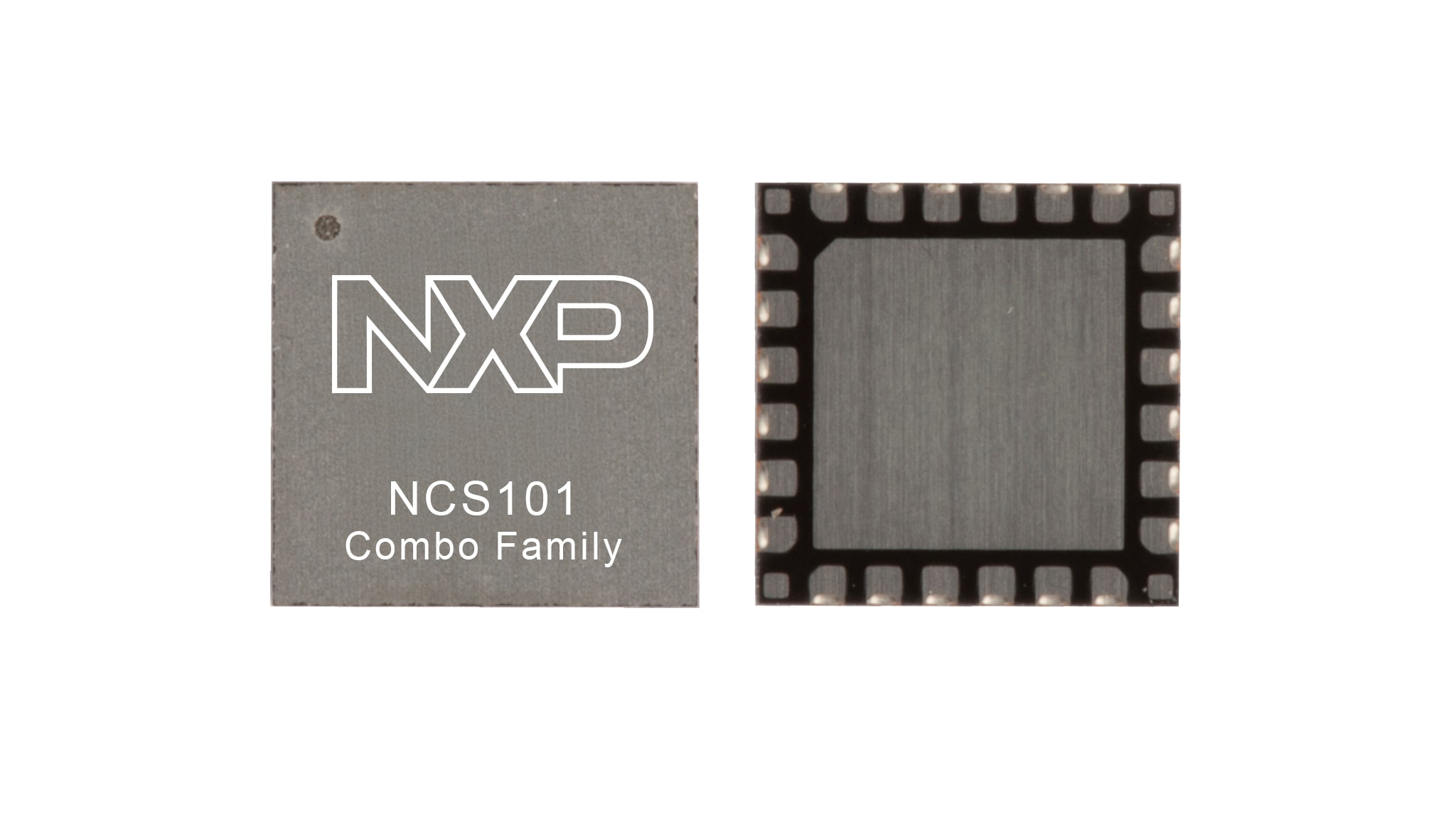

The devices are designed using NXP's state-of-the-art architecture, with multiple outputs per sensing axis to enable simultaneous use in both active and passive safety solutions. The device features a compact package of 24-pin quad flat no-lead (QFN) 6 mm x 6 mm x 1.90 mm with inspectable solder joints. The NCS101xx family is fully Automotive Electronics Council (AEC)-Q100 qualified up to 105 °C operating temperature and is compliant with the International Organization for Standardization (ISO) 26262/Automotive Safety Integrity Level (ASIL) B and with a Safe Serial Peripheral Interface (SafeSPI) interface for use in systems up to ASIL D.
For additional information and sample availability, contact your local sales office.
Product Details
Features
Operating Conditions and Functions
- Operating voltage: 3.3 V± 10 %
- Temperature range: -40 °C to 105 °C
- Angular rate: offset, sensitivity and temperature signal compensation and low-pass filter selectable between 12.5 Hz and 340 Hz
- Accelerometer: digital signal processing (16-bit data) offset, sensitivity and temperature signal compensation, low-pass filter selectable between 15 Hz and 400 Hz 32-bit SafeSPI 2.0 compatible, 11 MHz maximum serial peripheral interface (SPI) clock
Sensor Parameters
- Angular rate
- Z-axis angular rate sensor: ±125 dps (262 LSB/dps) to ±350 dps (65.5 LSB/dps)
- ±3.0% sensitivity accuracy over temperature and life
- ±3.0 dps offset accuracy over temperature and life
- X-axis, y-axis and z-axis Acceleration
- ±1.5 g to ±34 g range
- ±3.0% sensitivity accuracy over temperature and life
- ±50 mg offset accuracy over temperature and life
Package
- 24-pin QFN with integrated electromagnetic compatibility (EMC) Shield
- 6 mm x 6 mm x 1.90 mm
Functional Safety
ASIL B
Angular Rate and Acceleration Combination Sensors
| Part Number | Description | Interface | Other | Package |
|---|---|---|---|---|
| NCS10135 | ΩZ Angular Rate ±125 to ±350 dps and 3-Axis XYZ ±1.5 g to ±34 g | 32-Bit SPI: SafeSPI 2.0 | Automotive grade 2 qualification, -40 °C to 105 °C, ISO 26262:2018 ASIL B rating. | QFN 6 x 6 x 1.90 mm |
| NCS1012B | ΩZ Angular Rate ±125 to ±350 dps and 2-Axis XY ±1.5 g to ±34 g | 32-Bit SPI: SafeSPI 2.0 | Automotive grade 2 qualification, -40 °C to 105 °C, ISO 26262:2018 ASIL B rating. | QFN 6 x 6 x 1.90 mm |
| NCS1012C | ΩX Angular Rate ±125 to ±350 dps and 2-Axis YZ ±1.5 g to ±34 g | 32-Bit SPI: SafeSPI 2.0 | Automotive grade 2 qualification, -40 °C to 105 °C, ISO 26262:2018 ASIL B rating. | QFN 6 x 6 x 1.90 mm |
| NCS1012E | ΩX Angular Rate ±125 to ±350 dps and 2-Axis XY ±15.5 g to ±150 g | 32-Bit SPI: SafeSPI 2.0 | Automotive grade 2 qualification, -40 °C to 105 °C, ISO 26262:2018 ASIL B rating. | QFN 6 x 6 x 1.90 mm |
