Today's smart homes and modern buildings have 100 or more connected devices using different wireless standards.
NXP's RW61x provides a strong solution to this demand with easy and efficient wireless connectivity, making it a
highly integrated and secure tri-radio wireless MCU.
RW61x adds to NXP’s portfolio of
wireless MCUs by enabling wireless connectivity for multiple implementations of
the Matter standard such as Matter
over Thread, Matter over Wi-Fi
and Matter over Ethernet with advanced coexistence. In addition to this, RW61x provides
architectural flexibility for standalone or network coprocessor (NCP) hosted designs where simplicity and device
size are
critical.
Target applications include:
- Industrial applications such as building security, lighting and point-of-sale (POS) terminals
- Blood pressure monitor, fitness equipment, weighing scale and glucometer
- Home security and surveillance, in-home energy display, major home appliances, small and medium appliances
- Multiradio hub/smart device gateway for Internet connectivity
- Smart power socket and light switch
- Gaming accessories
The RW61x MCU subsystem includes a 260 MHz Arm® Cortex®-M33 core with Trustzone™-M, 1.2 MB on-chip SRAM, external
pSRAM support via FlexSPI and a high-bandwidth
Quad SPI interface with an on-the-fly decryption engine for securely accessing off-chip XIP flash.

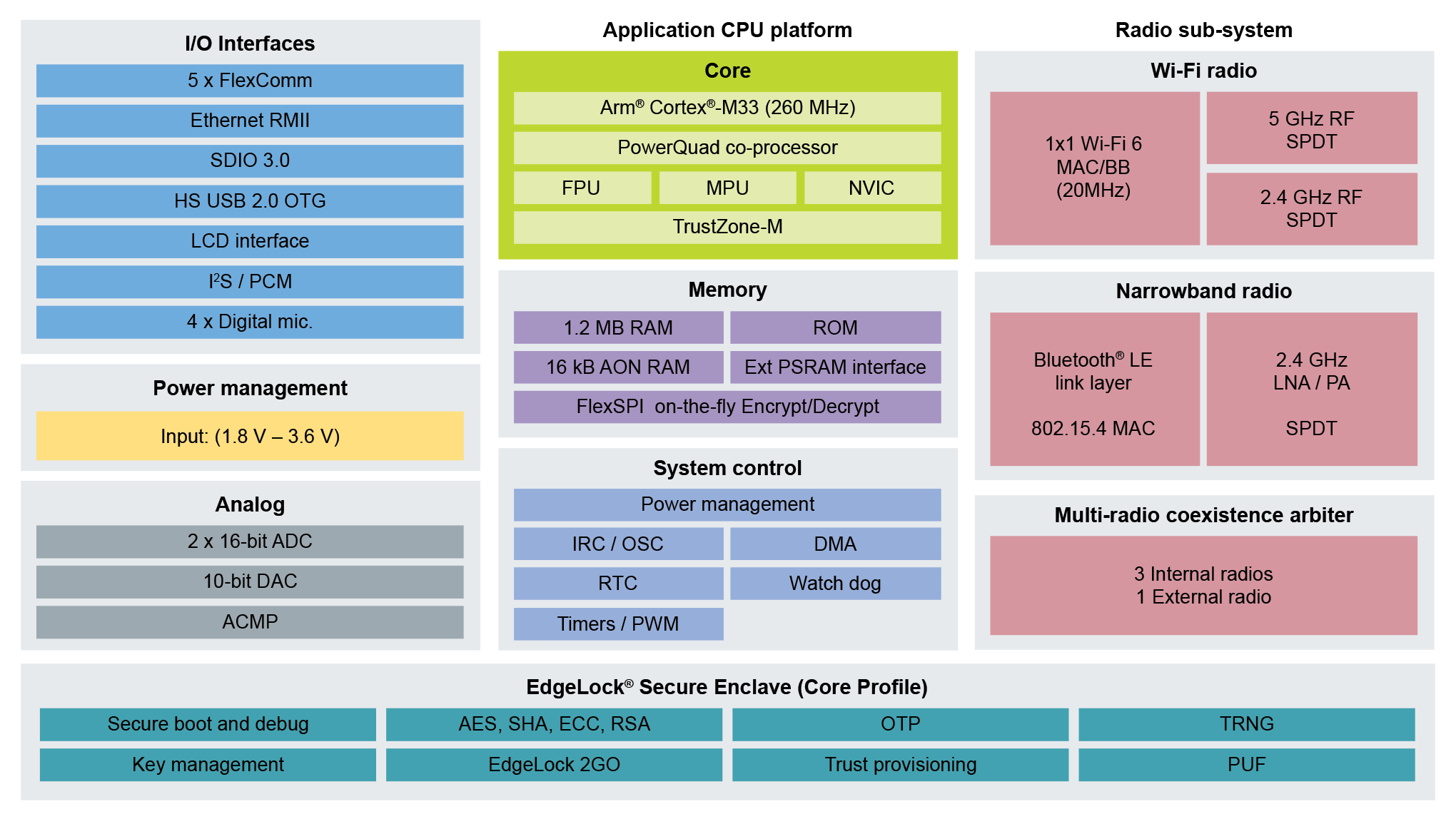

RW612 block diagram
For a better experience, download the
block diagram.
The RW61x includes a full-featured dual-band Wi-Fi 6 radio with support for 20 MHz channel bandwidth. Wi-Fi 6
(802.11ax) offers higher throughput, more efficient networking, lower latency and improved range over previous
generations of Wi-Fi standard. The Bluetooth LE radio
supports 2 Mbit/s high-speed data rate, long range and extended advertising. The on-chip 802.15.4 radio for RW612
supports
the latest Thread and Zigbee mesh networking protocol. In addition, the RW612 supports Matter over Wi-Fi, Matter
over Thread,
and Matter over Ethernet offering a common, interoperable application layer across ecosystems and products.
RW610 block diagram
For a better experience, download the
block diagram.
The advanced design of the RW61x delivers tight integration and highly secure operation in a space- and
cost-efficient wireless MCU requiring only a single 3.3 V power supply.
Industrial IoT Enablement
RW61X is an excellent fit for security cameras and lighting applications
Industrial enablement remains at the top of all the applications addressed by NXP and RW61X serves this purpose by
easily
becoming a part of this ecosystem under building security, lighting and point-of-sale (POS) terminals.
The RW61X also supports NXP’s EdgeLock 2GO services for simplified remote provisioning, management of device
credentials,
manufacturing and through the device life-cycle management mechanism, which addresses many of the customer concerns
that are
critical for credentials and not to be compromised once deployed. RW61X helps in developing simplified designs and
reduces the
complexity of supporting the new Matter standard.
Start planning your next connectivity design. Learn more about our
FRDM-RW612
development board.
Strong Foundation for Smart and Secure Homes
RW61X is a strong fit for seamless connectivity within all sorts of smart home appliances
As a Tri-Radio solution with an integrated MCU, RW61X is just the perfect choice for all sorts of smart home
applications
and solutions including blood pressure monitor, fitness equipment, glucometer, home security and surveillance,
in-home energy
display, major home appliances, multiradio hub/smart gateway for Internet connectivity, small and medium appliances,
smart
power sockets and light switches, weighing scales and more. RW61X can extensively help the smart device
manufacturers
working on such products to bring next-generation Matter products to the market.
Single Chip Solution for Open Thread Border Router
- Thread Border Router connects the Wi-Fi and Thread networks, can be integrated in Matter application product
devices
- Thread allows multiple Border Routers in a network to improve range and reliability
EdgeLock® Secure Enclave (Core Profile)
An important capability in the RW61x series is the EdgeLock Secure Enclave (Core Profile). Security features have been engineered
into the
RW61x from the beginning to address the growing needs for protection against cybersecurity attacks.
Diagram for EdgeLock® Secure Enclave (Core Profile)
The incorporated EdgeLock Secure Enclave (Core Profile) offers secure boot, secure debug, secure firmware updates and
secure life-cycle
management as well as hardware cryptography and physically unclonable function (PUF) for secure key management.
An important benefit of the EdgeLock Secure Enclave (Core Profile) is that customers can take advantage of NXP’s EdgeLock 2GO
service
platform for provisioning and managing IoT devices. The Matter wireless IoT protocol is built on a strong, proven
security
framework. Before a device can be onboarded to a Matter network, it must validate its identity and prove that it has
passed
Matter certification through an embedded Device Attestation Certificate (DAC).
As a Connectivity Standards Alliance (CSA)-approved product attestation authority (PAA), NXP provides product
manufacturers
with a one-stop-shop for Matter certification and security certificates, accelerating Matter product development and
deployment.
MCUXpresso Development Experience
At the heart of the RW61x experience is the MCUXpresso suite of software and tools. The MCUXpresso suite offers core
software
development kits (SDKs) and Integrated Development Environments (IDEs) and configuration tooling.
The SDK is flexible and can be used with a range of IDEs including:
- MCUXpresso for Visual Studio Code (VS Code): VS Code with extension from NXP to enable fast, flexible
development
- MCUXpresso IDE: Customized, Eclipse-based, IDE for NXP MCUs, optimized for ease of use
- IAR Embedded Workbench: Safety certified, highly optimizing compiler and development environment for C/C++
The RW61x also comes with FreeRTOS and Zephyr OS support.
Hardware Development with FRDM EVKs
Alongside the release of RW61x is low-cost FRDM development board for the RW612.
For rapid prototyping, we offer FRDM Development Boards
RW61x in 2024
Please visit RW61x on NXP.com
to get more information and the latest updates so you can start planning your next
connectivity design.
Learn about RW61x on NXP’s Community.
