Start a Conversation with NFC: Three Operating Modes

placeholder

Co-invented by NXP Semiconductors and Sony Electronics, Near Field Communication (NFC) is a subset of RF identification (RFID). It operates at 13.56 MHz and performs many of the same functions as RFID tags and contactless smartcards, while adding peer-to-peer communications.

With NFC, a simple tap is all it takes to initiate a transaction. Depending on the use case, that transaction can use one of three operating modes: Read/Write, Peer-to-Peer or Card Emulation. Here’s a short overview of each mode.

readwrite



Chameleon In Read/Write mode, the system performs the functions of a contactless reader/writer. The system’s NFC IC interacts with an NFC-enabled device – such as a contactless smart card, an NFC tag or an NFC-enabled smartphone (operating in Card Emulation Mode) – and either reads data in from the device or writes data out to it. This mode is used to get information or initiate an action.

peer-to-peer

wearable Peer-to-Peer mode is used to establish a two-way communication channel between a pair of NFC-enabled devices. Each NFC-enabled device serves as an endpoint, meaning the two systems can initiate a communication as equals, or peers. This mode uses either a passive or active communication scheme.



cardem

Card Emulation Mode lets the system behave as an ISO/IEC 14443-compliant contactless smart card.

nfc5-019626

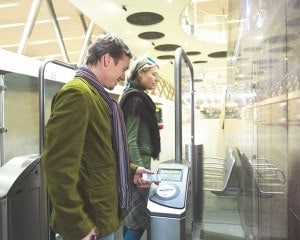

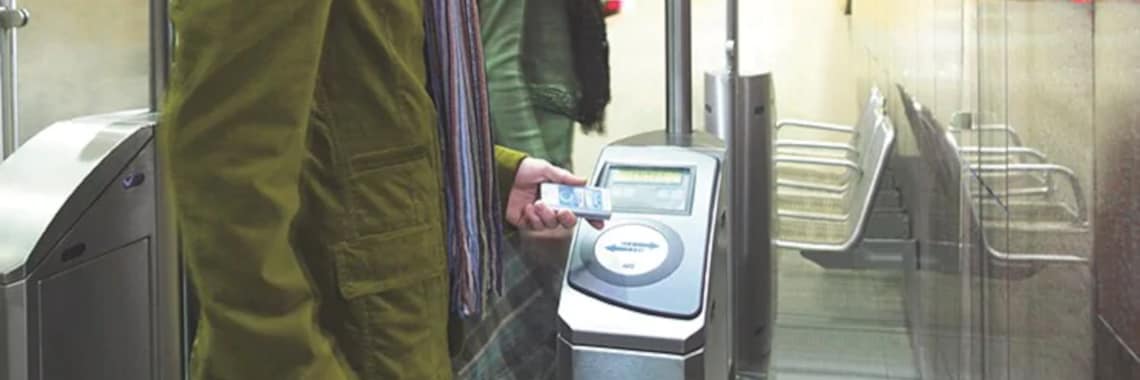

This means that the NFC-enabled device can be used in the existing contactless card infrastructure, for things like ticketing, access control, transit, tollgates and contactless payments.

Look at real-world systems

For block diagrams that show how NFC can be integrated into an application, check out these NFC-enabled systems:

Get the details

For an online overview of what NFC is and what it can do for you, visit our NFC Everywhere website.
