KITPF8X50FRDMEVM FRDM EVB KIT PF8150 and PF8250

KITPF8X50FRDMEVM

Roll over image to zoom in

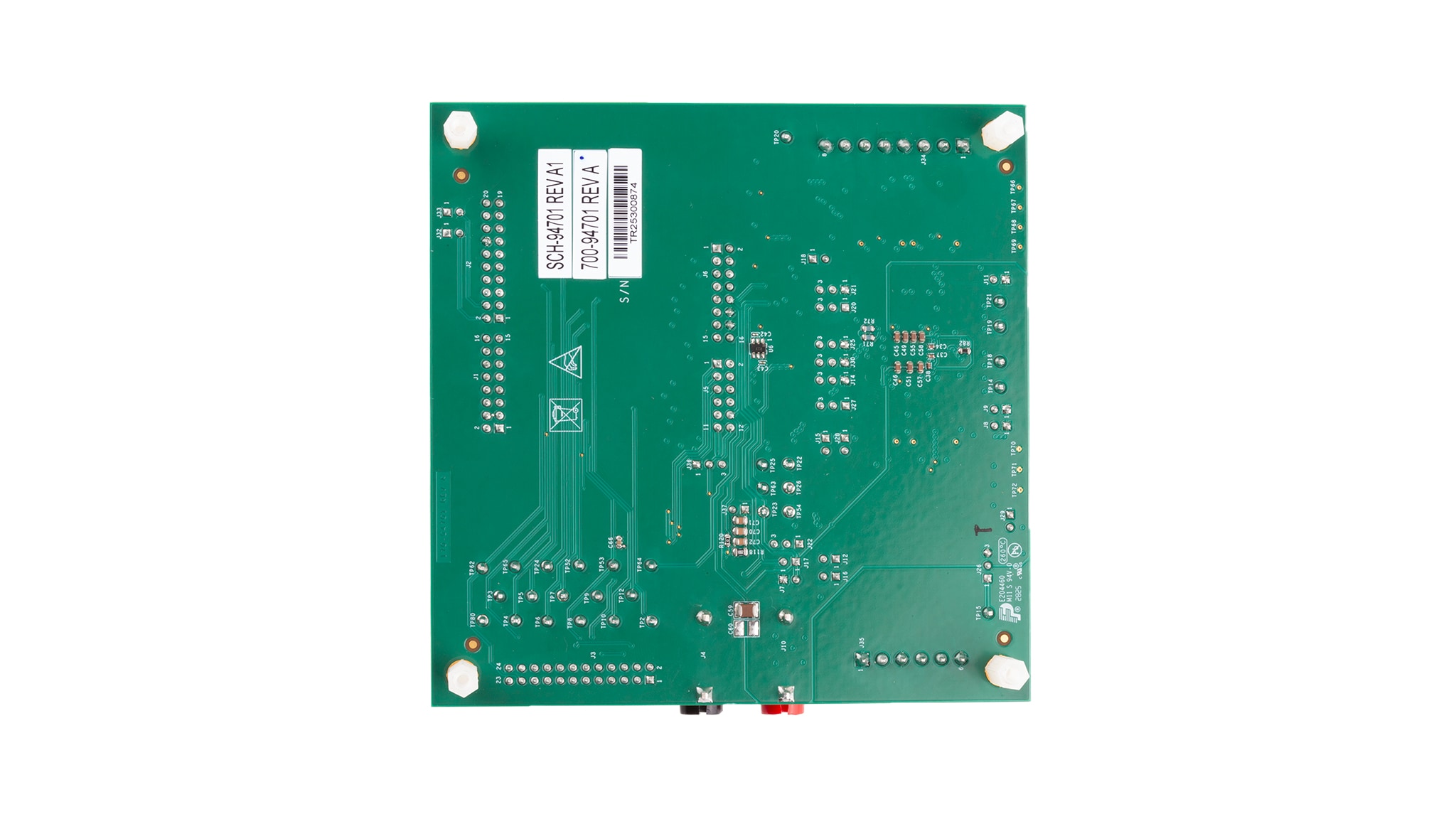

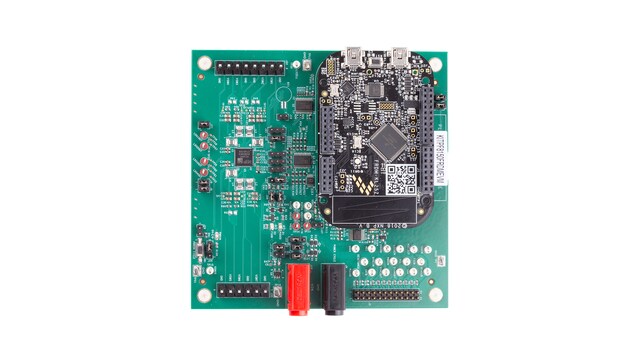

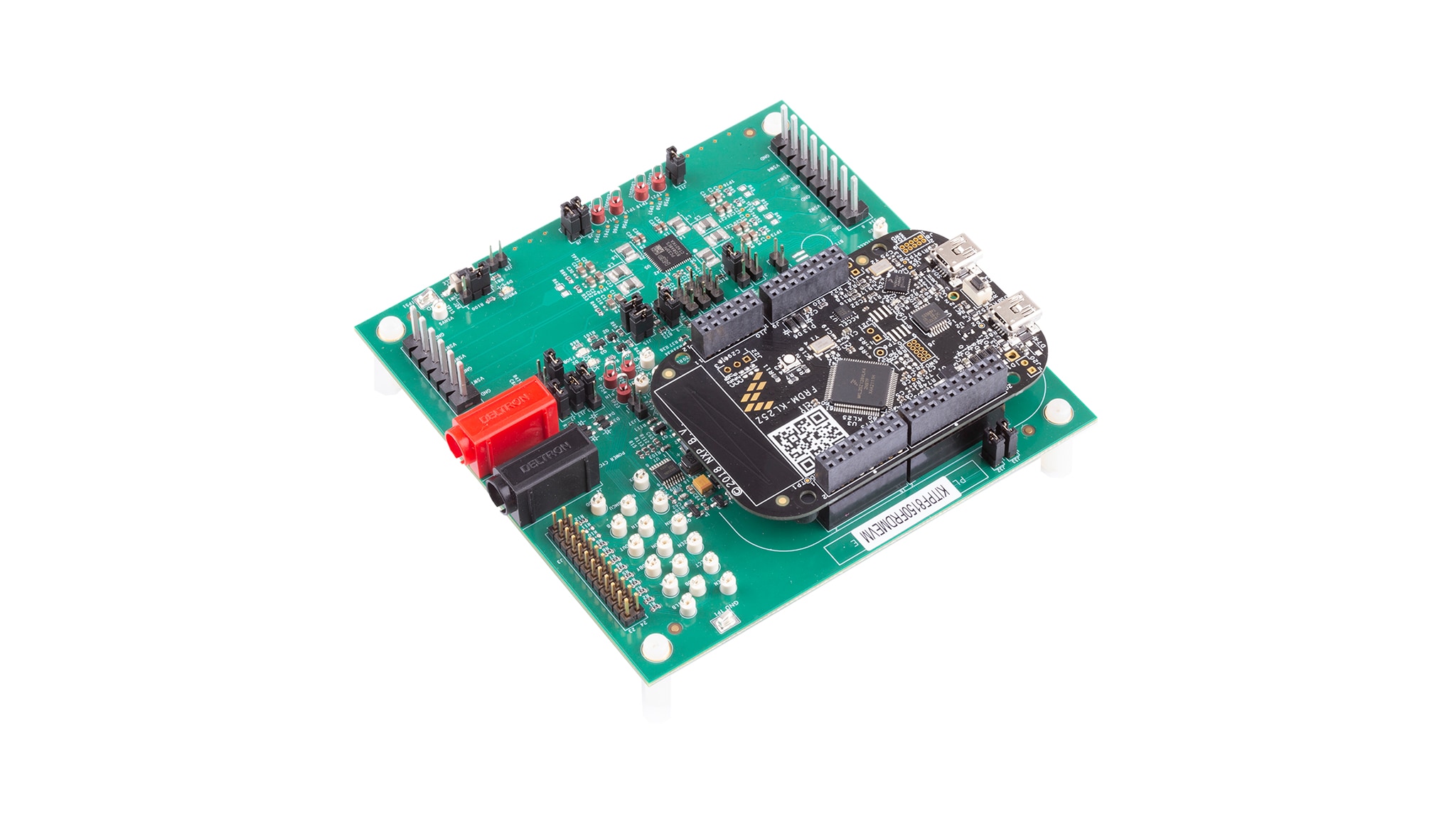

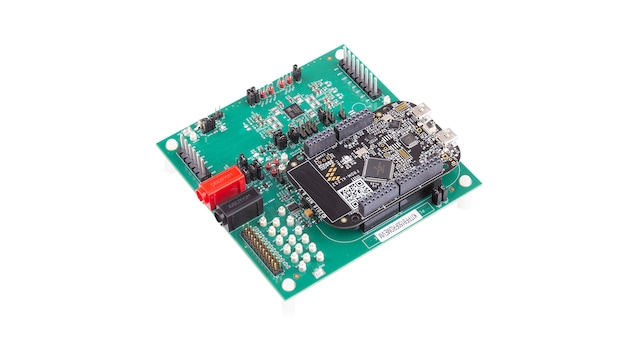

The KITPF8150FRDMEVM and KITPF8250FRDMEVM are evaluation boards featuring the PF8150 and PF8250 power management integrated circuit (PMIC). PF8150 and PF8250 are pin-to-pin compatible devices with PF8100 and PF8200.

The kits integrate all the hardware needed to fully evaluate the featured PMIC. It integrates a communication bridge based on the FRDM-KL25Z development board to interface with the graphic user interface (GUI) software interface to fully configure and control the PF8150/PF8250 PMIC.

Supported Devices

Power Management

5 V PMIC Solutions

  • PF81-PF82: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications

Features

Key Specifications

  • 2.7 V to 5.5 V operating input voltage range
  • USB-to-inter-integrated circuit (I²C) communication via the FRDM-KL25Z interface
  • Up to 1.0 MHz I²C communication
  • Selectable hardwire default PMIC configuration or one-time programmable (OTP)/try‑before‑buy (TBB) operation
  • Advanced system monitoring/diagnostic via PMIC and/or system analog multiplexer (AMUX)
  • Leader/follower interface connector for multi-PMIC support
  • On-board I/O regulator with 1.8 V/3.3 V selectable output voltage

PMIC Functionality

  • Up to seven switching regulators with multiphase capability
  • Four low-dropout (LDO) regulators with selectable switch-mode operation
  • Programmable output voltage and current limits
  • Programmable switching frequency with selectable frequency spread spectrum
  • Real-time clock (RTC) supplied with programmable coin-cell charger
  • Voltage monitoring circuits
  • System watchdog monitoring

Buy Options

KITPF8150FRDMEVM-Image

Click to expand

KITPF8150FRDMEVM
Active

KITPF8X50FRDMEVM FRDM EVB KIT PF8150 and PF8250.

    $229.14 USD
    In Stock :5

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    KITPF8250FRDMEVM-Image

    Click to expand

    KITPF8250FRDMEVM
    Active

    KITPF8X50FRDMEVM FRDM EVB KIT PF8150 and PF8250.

      $229.14 USD
      In Stock :5

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
