Maivin AI Vision Starter Kit

MAVK-SMART-8MPLUS-CAMERA
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

Click image to open expanded view

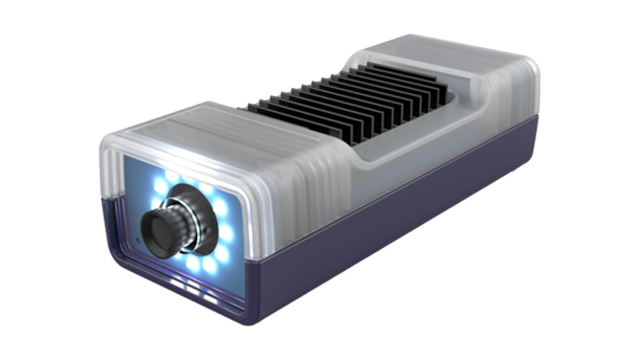

The Maivin AI Vision Starter Kit is a modular AI smart camera reference design available from Au-Zone Technologies, Toradex and Vision Components that is built with production-grade hardware and software components for quickly prototyping and field testing your next custom vision system. This vision kit is based on the i.MX 8M Plus applications processor.

Integrated out-of-the-box demo application examples for object detection, classification and tracking, this product can be customized by using eIQ® Toolkit for your own AI model or data set.​

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53, Machine Learning, Vision, Multimedia and Industrial IoT

Features

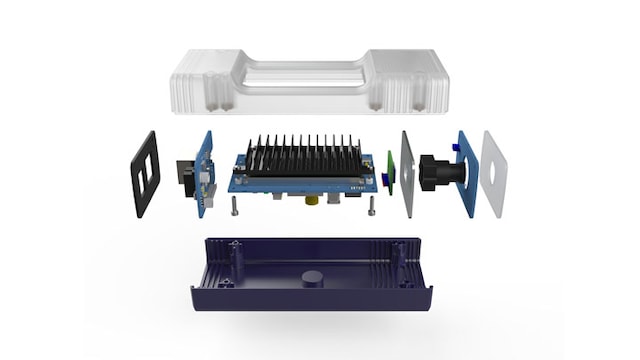

Modular i.MX 8M Plus Computer on Module

  • i.MX8M Plus SOC, 4GB LPDDR4 RAM, 16GB NAND FLASH, 802.11AC WiFi, ISP with dual MIPI CSI sensor I/F

Modular Base

  • Computer on Module Socket
  • Gigabit Ethernet
  • RS485 Serial
  • M.2 Expansion Module for SSD or LTE WAN Modem
  • POE interface (optional)
  • LED Camera Flash board (optional)

Modular Image Sensors

  • Sony IMX296 1440 x 1080 Mono, Global Shutter
  • Sony IMX327 1920 x 1080 HDR, Rolling Shutter

Modular Termination Boards

  • Ethernet (10/100/1000M) connector
  • CAN Transceivers
  • RS485 Serial
  • GPIO for External Trigger Sync

Modular Enclosure

  • Indoor enclosure (standard)
  • Outdoor IP67 enclosure (optional)

Included Software Enablement

  • Production BSP
  • ISP and Image Sensor Drivers

Compatible Production Middleware
