MCXW236AHN-Radio Device Module

MCXW236AHN-RDM new
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

Click image to open expanded view

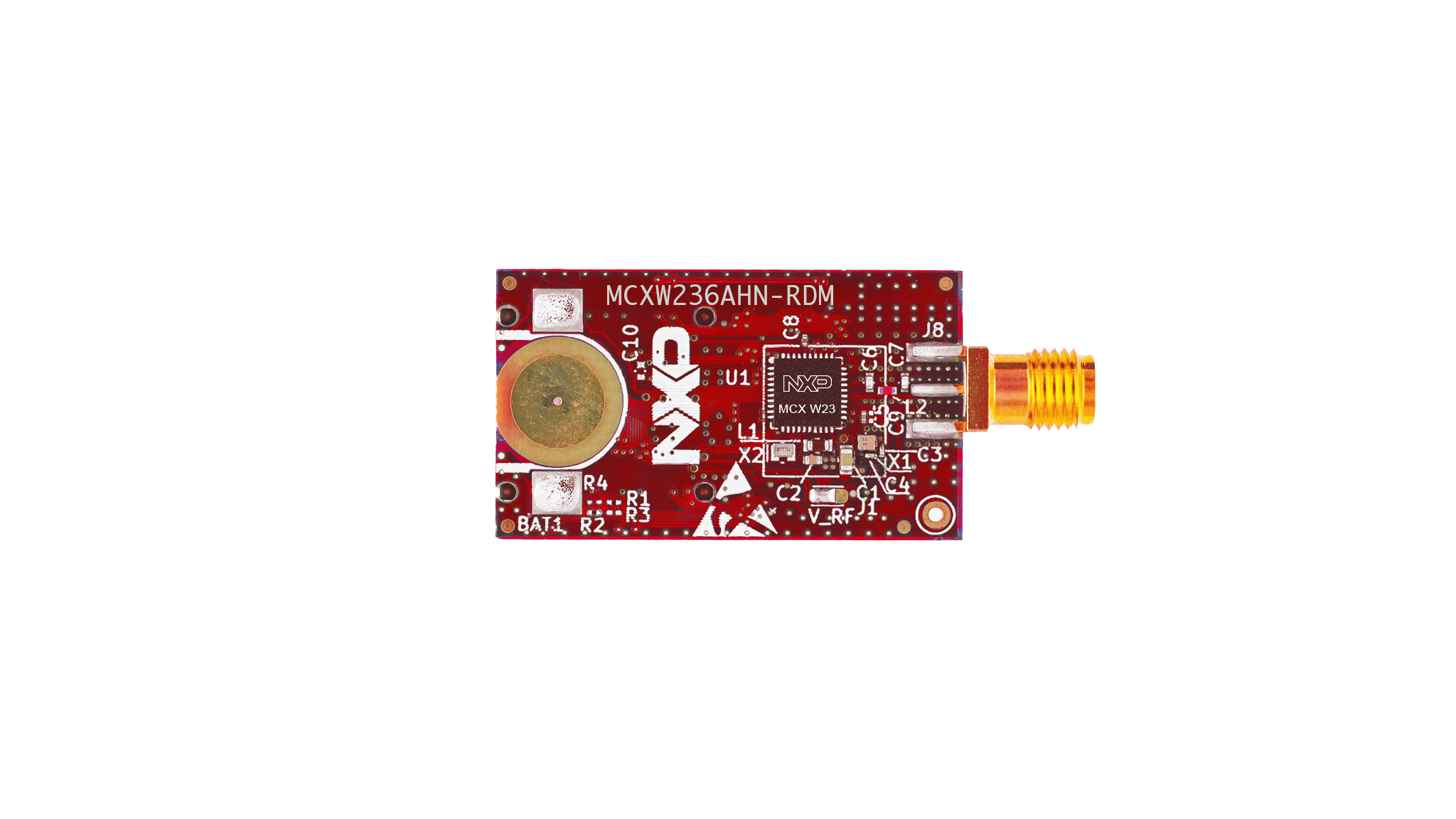

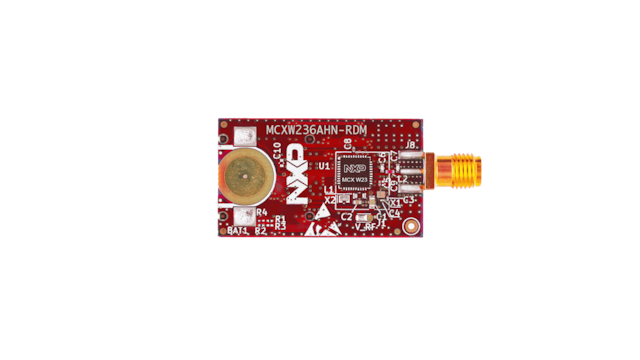

The MCXW236AHN-RDM are highly configurable, low-power and cost-effective evaluation and development board for application prototyping and demonstration of the MCXW236AHN device. The MCXW236AHN constitutes a highly integrated, single chip ultralow power Bluetooth Low Energy 5.3 wireless transceiver with embedded microcontroller and flash, targeted at internet of things (IoT) application.

Product Details

Features

Connectivity

  • NXP's ultra-low-power MCXW236AHN Wireless microcontroller unit (MCU) supporting Bluetooth LE
  • Fully compliant with Bluetooth 5.3 LE

Reference Design with Small-Footprint, Low-Cost RF Node

  • Single-ended input/output port
  • Low-count of external components
  • Maximum output power can reach up to +6 dBm at the SubMiniature version A (SMA) connector

Selectable Power Source

  • Configuration is done through solder jumpers
  • DC/DC converter
  • MCXW236AHN: boost capability for operation on the 1.5 V battery
  • 32 MHz reference oscillator for radio frequency (RF) operation
  • 32.768 kHz reference oscillator used for low power operation

Flexible RF Transmitter Level Configuration

  • TX Mode 1 (TXM1): Range from -31 dBm to +2 dBm when VDD_RF exceeds 1.1 V (default-configured mode)
  • TX Mode 2 (TXM2): Range from -28 dBm to +6 dBm when VDD_RF exceeds 1.7 V

Packaging

  • Printed-circuit board (PCB) Marking: MCXW236AHN-RDM
  • A 2-layer printed circuit board (PCB) with through-hole (TH) vias only
  • PCB color: Red
