BESS Cell Monitoring Unit (CMU) with 3x 18S Capability

RDI7018C3T1 new

Roll over image to zoom in

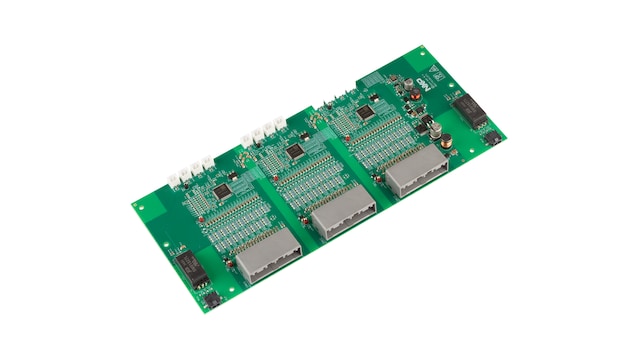

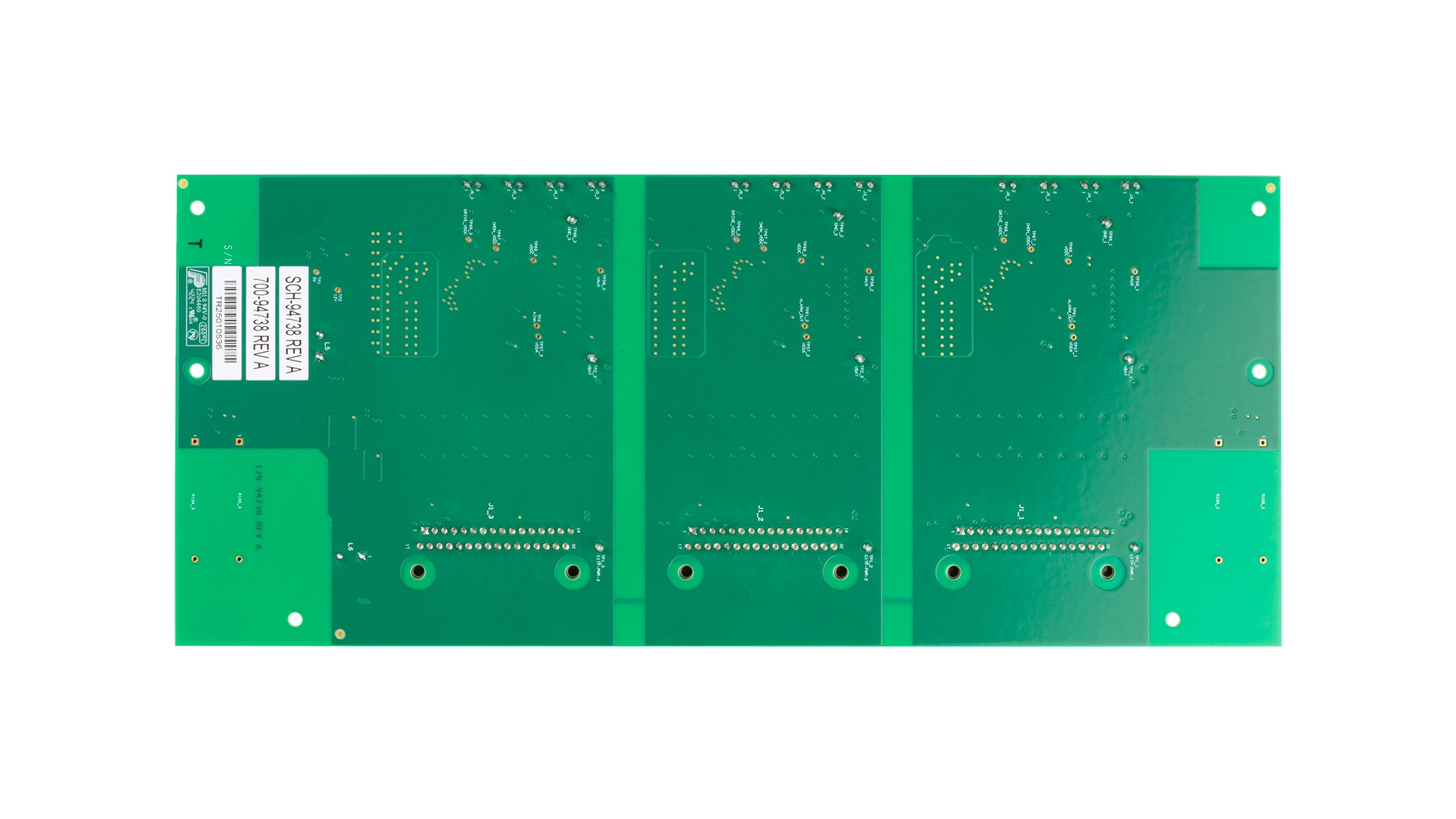

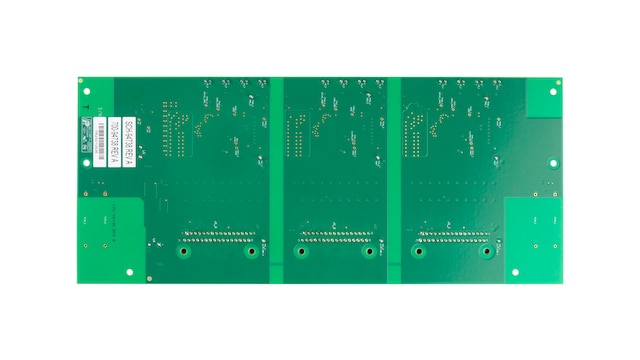

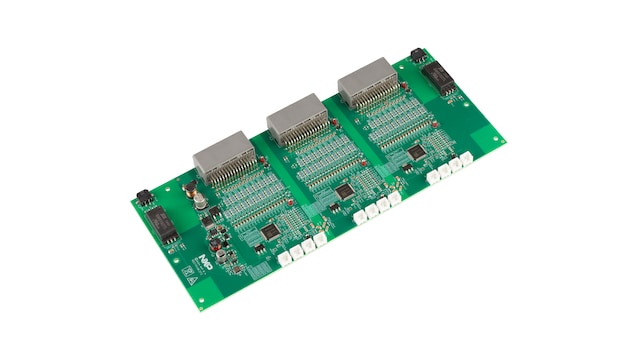

The RDI7018C3T1 is a battery cell monitoring unit (CMU) reference design with electrical transport protocol link (ETPL) communication interface toward a BMU. It is ideal for rapid prototyping of a high-voltage battery energy storage system (BESS) hardware and software. This board contains three BMI7018 analog front ends (AFEs) in a daisy chain.

It can be used to monitor a battery module with up to 54 cells. There are in total 27 GPIO/Analog measurement inputs for temperature or other measurements.

Block Diagram

RDI7018C3T1

RDI7018C3T1 Block Diagram
Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

  • BMI7018: 18-Channel Li-Ion Battery Cell Controller IC

Features

Voltage Measurement

  • 3 BMI7018 battery cell controllers (BCCs) for up to 54 cells, extendable by adding more CMUs to the daisy chain
  • Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

  • 3 x 9 analog inputs (including temperature sensors) or GPIOs with advanced filtering

Cell Balancing

  • Cell balancing with integrated temperature-controller function with up to 300 mA (using default setup)

Pressure Sensing

  • Onboard pressure sensor for thermal run away detection

Communication

  • Isolated TPL communication between CMU and BMU

Buy Options

RDI7018C3T1-Image

Click to expand

  • RDI7018C3T1

  • BESS Cell Monitoring Unit (CMU) with 3x 18S Capability.

  • Kit contains:

    • Assembled and tested evaluation board/module in antistatic bag
    • Three cell terminal cables
    • One transport protocol link (TPL) communication cable
    • Quick start guide
  • $379.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • Kit contains:

    • 1 ETPL cable, 30 cm-long
  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • Kit contains:

    • 1 ETPL cable, 50 cm-long
  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-18CTCABLE30-Image

Click to expand

  • BATT-18CTCABLE30
    Active

  • Cell Terminal (CT) cable, 18 cells, 30 cm-long.

  • Kit contains:

    • 1 Cell Terminal (CT) cable, 30 cm-long
  • $25.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
