S08RN Tower Module Development Board

TWR-S08RN60 Active

Roll over image to zoom in

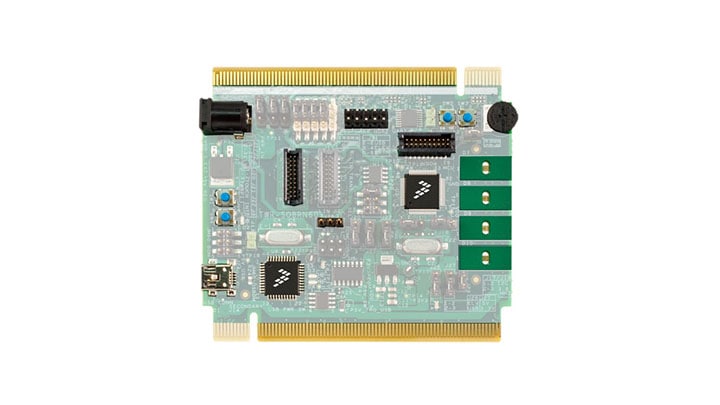

The TWR-S08RN60 module is a development board for the S9S08RN60, which are ideal for Automotive Body Applications. It is designed to enable rapid prototyping and development for applications requiring a low cost 8bit MCU, Connectivity through LIN, Basic Motor control and Basic Touch sensing requirements.

The TWR-S08RN60 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08RN: 8-bit EEPROM with TSI for Body Electronics MCUs

Features

Microcontroller

  • S9S08RN60 MCU

Connectivity

  • LIN Connector
  • Sockets for touch sensing and motor control daughter card expansion

Support

  • On-board OSBDM debug support with Mini-B USB connector

User Components

  • Potentiometer for ADC input
  • 4 touch pads each with LED indicator
  • Reset button and 3 functional switches
  • 8 MHz Crystal for system clock

Buy Options

TWR-S08RN60-Image

Click to expand

  • TWR-S08RN60
    Active

  • Tower Bd for S08RN60.

    • Part Number TWR-S08RN60 contains:
      • TWR-S08RN60 board with a S9S08RN60 8-bit MCU
      • DVD with IDE software, training materials and collateral
      • USB cable
      • NXP Warranty Card
    • Part Number TWR-S08RN60-KIT also contains:
      • TWR-ELEV: Tower System Elevator Module
      • TWR-PROTO: Prototyping Module with perfboard area
  • $299.00 USD
  • For a quantity of 1
