MC9S08LL 8-bit Segment LCD Tower System Module

TWR-S08LL64 Active

Roll over image to zoom in

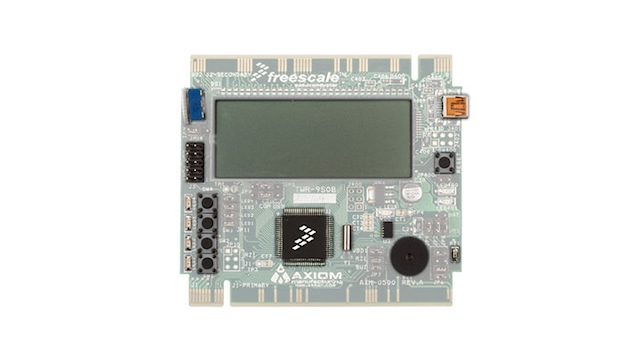

The TWR-S08LL64 module is a development board for the MC9S08LL64 segment LCD Controller that features a 3-axis accelerometer ADC input and a 2x28 segment LCD display.

  • The integrated OSBDM allows you to communicate with the board and target device using only a USB cable
  • The TWR-S08LL64 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08LL: 8-bit Segment LCD LL MCUs

Features

Microcontroller

  • MC9S08LL64 MCU

Connectivity

  • RS-232 port
  • Mini-B USB connector

Sensors

  • NXP® 3-axis accelerometer ADC input to MCU
  • Light sensor with LP filter and op amp

Display

  • 2 x 28 segments LCD display

User Components

  • 1 reset push button and 4 push switches
  • 32,768 Hz Crystal
  • Buzzer
  • 5 K One Turn Potentiometer

TWR-S08LL64 contains:

  • MC9S08LL64
  • Energy-Efficient Product Solution by NXP

Buy Options

TWR-S08LL64-Image

Click to expand

  • TWR-S08LL64
    Active

  • Tower System, 8-bit MCU Module, MC9S08LL, Segment LCD.

    • Part Number TWR-S08LL64 contains:
      • TWR-S08LL64 board with a MC9S08LL64 8-bit MCU
      • Necessary cables
      • DVD with lab tutorials, software, training and collateral
      • Quick Start Guide document
    • Part Number TWR-S08LL64-KIT also contains:
      • TWR-PROTO - Tower System Prototyping Module
      • TWR-ELEV - Tower System Elevator Modules
  • For a quantity of 1
Order from distributors
TWR-S08LL64-KIT-Image

Click to expand

  • $113.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
