MC9S08MM Medical Development Tower System Module

TWR-S08MM128
Preproduction

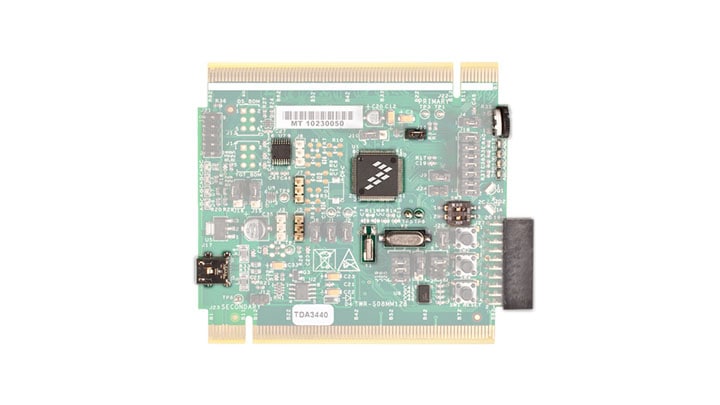

Roll over image to zoom in

The TWR-S08MM128 is a development tool for the NXP® 9S08MM128 Flexis® 8-bit MCUs.

  • It supports external communications interfaces and an open connector for an MED-EKG development board
  • Designed to aid in the evaluation and prototyping of medical applications and includes an electrocardiograph sensor (MED-EKG) as part of the evaluation system.
  • The TWR-S08MM128 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08MM: 8-bit Flexis USB MM128/64/32 MCUs

Features

Connectivity

  • Two 80-pin connectors on the outside to support debugging or expansion to LCD module
  • RS-232, RS485, CAN, USB
  • Open connector for MED-EKG development board

Power Management

  • Includes power regulation circuitry with standardized bus
  • Low power

Debug

  • Integrated open source BDM debugging tool

Support

  • Supports external communications interfaces

Size

  • Small form factor (59 mm x 90 mm)
  • The TWR-S08MM128 board contains a Flexis® MC9S08MM128, an Energy-Efficient Product Solution by NXP®
