MC9S08GW 8-bit Segment LCD Tower System Module

TWR-S08GW64 Active

Roll over image to zoom in

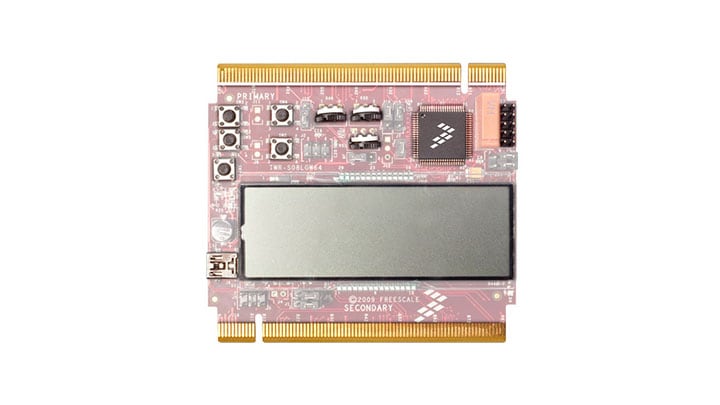

The TWR-S08GW64 module is a development board for the MC9S08GW64 Segment LCD controller that features an integrated dual 16 bit ADC, low-power position counter and independent real-time-clock and is designed to highlight the MCUs low-power features. The integrated OSBDM allows a designer to communicate with the board and target device using only a USB cable.

The TWR-S08GW64 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08GW: 8-bit LCD GW MCUs

Features

Microcontroller

  • MC9S08GW64 MCU

Connectivity

  • RS-232 port

Power Management

  • 3-phase AC voltage and current simulation input

Display

  • 2 x 28 segments LCD display

Debug

  • On-board OSBDM debug support with Mini-B USB connector

User Components

  • Potentiometers for ADC input and LCD contrast adjustment
  • 1 reset push button and 4 functional push switches
  • Separate 32,768 Hz Crystal for system clock and RTC

Buy Options

TWR-S08GW64-Image

Click to expand

  • TWR-S08GW64

  • Tower System, 8-bit MCU Module, MC9S08GW, Segment LCD.

    • Part Number TWR-S08GW64 contains:
      • TWR-S08GW64 board with a MC9S08GW64 8-bit MCU
      • Necessary cables
      • DVD with IDE Software, training materials and collateral
      • Quick Start Guide document
    • Part Number TWR-S08GW64-KIT also contains:
      • TWR-ELEV - Tower System Elevator Modules
      • TWR-PROTO - Tower System Prototyping Module
    • Availability: Pending Stock
ADD TO CART
TWR-S08GW64-KIT-Image

Click to expand

    • Availability: Pending Stock
ADD TO CART
