MPC5566 VertiCal Base Boards

MPC5566VBBOARDS Active

Roll over image to zoom in

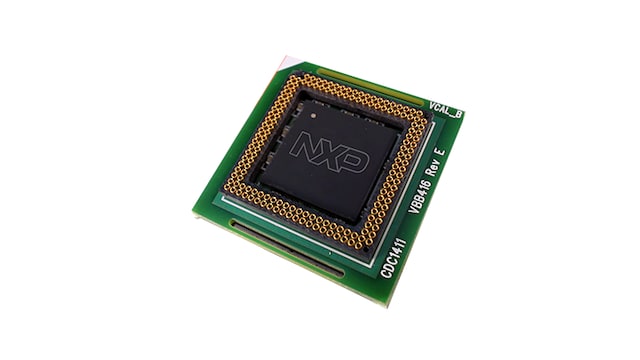

The VertiCal system enables the use of enhanced calibration and debugging tools for industrial and automotive applications, supporting a wide range of MPC5566 MCUs in different package types.

Based on Power Architecture®, the VertiCal offers production footprints and a standardized tool connector, allowing a variety of calibration and debug hardware to be connected and reused.

Product Details

Supported Devices

Processors and Microcontrollers

MPC55xx MCUs

  • MPC5566: 32-bit MCU for Automotive Powertrain Applications

Features

Specifications

  • VertiCal system compatible
  • Standardized hardware across MPC5566 MCus (using production silicon)
  • Up to 422 pins
  • Pitch 1.00 mm
  • Allows system calibration without impacting standard MCU I/O resources
  • Interconnect standard supported by multiple calibration tool developers
  • Support for simplified implementation of overlay memory
  • Flexibility to support new MCU features for prototyping use
  • Uses tried and tested technology

Buy Options

LFVBBOM66W1A-Image

Click to expand

  • LFVBBOM66W1A
    Active

  • Qorivva MPC5566 422 PIN 1.0MM Vertical Calibration Base Board.

  • Kit Contains:

    • Extraction Tool
    • Bill of Materials
    • Packing List
  • $978.60 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFVBBM66WA-Image

Click to expand

  • LFVBBM66WA
    Active

  • Qorivva MPC5566 416 PIN 1.0MM PGA Vertical Calibration Base Board.

  • Kit Contains:

    • Extraction Tool
    • Bill of Materials
    • Packing List
  • $978.60 USD
  • For a quantity of 1
Order from distributors
