MPC564xA Engine Management Evaluation System

XPC564AEVBKIT

Roll over image to zoom in

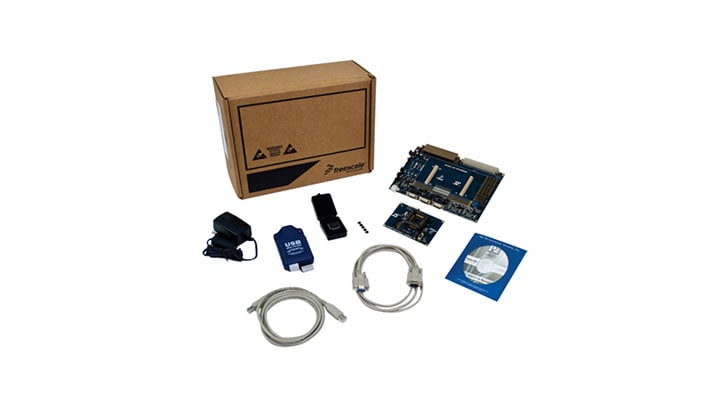

The XPC564A EVB is an evaluation system supporting the NXP® MPC564xA microprocessors.

  • The complete system consists of an XPC56xxMB motherboard and an XPC564AADPT mini-module that plugs into the motherboard.
  • Different mini-modules are available for evaluating devices with different footprints in the MPC564xA family of microprocessors.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC564xA: Ultra-Reliable MPC564xA MCU for Automotive and Industrial Engine Management

Products

No Longer Manufactured

  • MC33730: Power Supply with Multiple Linear Regulators

Features

XPC564AADPT Mini-Module Board

  • Can be used as a standalone board by providing external 5 V power supply input
  • XPC564AADPT176S has socket for MPC564xA in 176LQFP footprint
  • XPC564AADPT208S has socket for MPC564xA in 208BGA footprint
  • XPC564AADPT324S has socket for MPC564xA in 324BGA footprint
  • ON/OFF Power Switch with LED indicator
  • Reset button with filter and LED indicator

XPC56xxMB Board

  • A 12 VDC power supply input barrel connector
  • 2 CAN channels with jumper enable
    • One channel with High-Speed transceiver
    • One channel with Low-Speed Fault Tolerant and High-Speed transceiver(selectable with jumpers)
  • 2 LIN channels with jumper enable
    • One with transceiver and pin header connector populated
    • One channel with footprints only
  • 1 SCI channel with jumper enables
  • 2 FlexRay channels with jumper enable
    • One channel with transceiver and DB9 male connector
    • One channel with footprint only
  • 4 user push buttons with jumper enables and polarity selection
  • 4 user LED's with jumper enables
  • 1 potentiometer for analog voltage input

Buy Options

MPC564AADPT176-Image

Click to expand

  • MPC564AADPT176
    Active

  • Stand-alone Mini-module for Qorivva MPC564xA LQFP 176.

    • XPC56xxMB Motherboard
    • One of the following Adapter Cards:
      • XPC564AADPT176S
      • XPC564AADPT208S
      • XPC564AADPT324S
    • XPC56xx Resources CD–ROM
    • P&E USBvML–PPCNEXUS Hardware Interface Cable
    • USB A–to–B Cable
    • NXP Warranty Card
  • $299.00 USD
  • For a quantity of 1
MPC564AADPT208-Image

Click to expand

  • MPC564AADPT208
    Active

  • Stand-alone Mini-module for Qorivva MPC564xA BGA 208.

  • $299.00 USD
  • For a quantity of 1
MPC564AKIT176-Image

Click to expand

  • MPC564AKIT176
    Active

  • Evaluation Kit for Qorivva MPC564xA, XPC56xxMB2 Motherboard and MPC564AADPT176 mini-module.

  • $649.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MPC564AKIT208-Image

Click to expand

  • MPC564AKIT208
    Active

  • Evaluation Kit for Qorivva MPC564xA, XPC56xxMB2 Motherboard and MPC564AADPT208 mini-module.

  • $699.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MPC564AKIT324-Image

Click to expand

  • MPC564AKIT324
    Active

  • Evaluation Kit for Qorivva MPC564xA, XPC56xxMB2 Motherboard and MPC564AADPT324 mini-module.

  • $497.00 USD
  • For a quantity of 1
XPC564AADPT208S-Image

Click to expand

  • XPC564AADPT208S
    Active

  • Daughter Card for Qorivva MPC564xA BGA 208, with socket adapter.

  • $175.00 USD
  • For a quantity of 1
XPC564AADPT324S-Image

Click to expand

  • XPC564AADPT324S
    Active

  • Daughter Card for Qorivva MPC564xA BGA 324, with socket adapter.

  • $135.00 USD
  • For a quantity of 1
XPC564AKIT176S-Image

Click to expand

  • XPC564AKIT176S
    Active

  • Eval Kit for Qorivva MPC564xA, Includes XPC56xxMB2 Motherboard and XPC564AADPT176S daughter card.

  • $450.00 USD
  • For a quantity of 1
XPC564AKIT208S-Image

Click to expand

  • XPC564AKIT208S
    Active

  • Eval Kit for Qorivva MPC564xA, Includes XPC56xxMB2 Motherboard and XPC564AADPT208S daughter card.

  • $439.99 USD
  • For a quantity of 1
XPC564AKIT324S-Image

Click to expand

  • XPC564AKIT324S
    Active

  • Eval Kit for Qorivva MPC564xA, Includes XPC56xxMB2 Motherboard and XPC564AADPT324S daughter card.

  • $799.00 USD
  • For a quantity of 1
Order from distributors
