Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

MPC564xL: Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications

Products

mWallet 2GO

MC33730: Power Supply with Multiple Linear Regulators

Features

MKT564L KIT Features

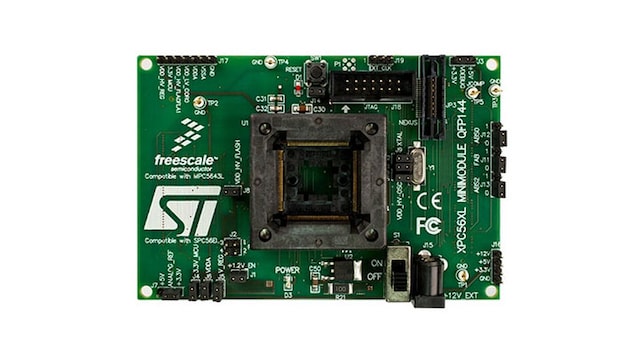

XKT564L144S1M (KIT) contains a XDC564L144S1M (Mini-Module board) which has a socket for MPC5643L in 144LQFP footprint / XKT564L257S1M (KIT) contains a XDC564L257S1M (Mini-Module board) which has a socket for MPC5643L in 257MAPBGA footprint
The Mini-Module Boards can be used as a standalone board by providing external 12V power supply input
XPC56xxMB2 motherboard
ON/OFF Power Switch with LED indicator
Reset button with filter and LED indicator
XPC56xx Resources CD-ROM
P&E USB-ML-PPCNEXUS Hardware Interface Cable
USB A-to-B Cable

XPC56xxMB2 Board Features

A 12 V DC power supply input barrel connector
2 CAN channels with jumper enable
- One channel with High-Speed transceiver
- One channel with Low-Speed Fault Tolerant and High-Speed transceiver (selectable with jumpers)
2 LIN channels with jumper enable
- One with transceiver and pin header connector populated
- One channel with footprints only
1 SCI channel with jumper enables
2 FlexRay channels with jumper enable
- One channel with transceiver and DB9 male connector
- One channel with footprint only
4 user push buttons with jumper enables and polarity selection
4 user LED’s with jumper enables
1 potentiometer for analog voltage input

Buy Options

Click to expand

MDC564L144S1M
Active

Daughter Card for Qorivva MPC5643L LQFP 144.

$120.00 USD

Pending Stock

ADD TO CART

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MKT564L257S1M
Active

Eval Kit for Qorivva MPC5643L, Includes MPC56xxMB2 Motherboard and MDC564L257S1M daughter card.

$1029.00 USD

Pending Stock

ADD TO CART

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MKT564L144S1M
Active

Eval Kit for Qorivva MPC5643L, Includes MPC56xxMB2 Motherboard and MDC564L144S1M daughter card.

$497.00 USD

Pending Stock

ADD TO CART

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

XKT564L100S1M
Active

Eval Kit for Qorivva MPC5643L, Includes XPC56xxMB2 Motherboard and XDC564L100S1M daughter card.

Kit Contains

XPC56xxMB2 Motherboard
XDC564L144S1M or XDC564L257S1M Mini-Module
XPC56xx Resources CD-ROM
P&E USB-ML-PPCNEXUS Hardware Interface Cable
USB A-to-B Cable
NXP Warranty Card

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

XDC564L100S1M
Active

Daughter Card for Qorivva MPC5643L LQFP 100, with socket adapter.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MDC564L257S1M
Active

Daughter Card for Qorivva MPC5643L MAPBGA 257.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MDC564L100S1M
Active

Daughter Card for Qorivva MPC5643L LQFP 100.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MKT564L100S1M
Active

Eval Kit for Qorivva MPC5643L, Includes MPC56xxMB2 Motherboard and MDC564L100S1M daughter card.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

3 documents

Compact List

Component list for xPC56XXMB[XPC56XXMBCL]Featured

PDFJun 12, 2008Rev A

XPC56xxMEVB User Manual[XPC56XXMEVBUM]FeaturedGetting Started

PDFJun 12, 2008Rev 1
MPC564xL EVB Freescale User Manual[XPC564XLEVB_UM]FeaturedGetting Started

PDFAug 21, 2012Rev 1.02

Design Resources

Design Files

Quick reference to our design files types.

3 design files

Printed Circuit Boards and Schematics
XPC56XLADPT144S Schematic and Component Placement

PDFRev BAug 21, 2012 00:00:00184.48 KBXPC56XLADPT144S_SCH

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
XPC56XLADPT100S Schematic

PDFRev AAug 21, 2012 00:00:0066.75 KBXPC56XLADPT100S_SCH

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
XPC56XLADPT257BS Schematic and Component Placement

PDFRev BAug 21, 2012 00:00:00219.74 KBXPC56XLADPT257BS_SCH

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
