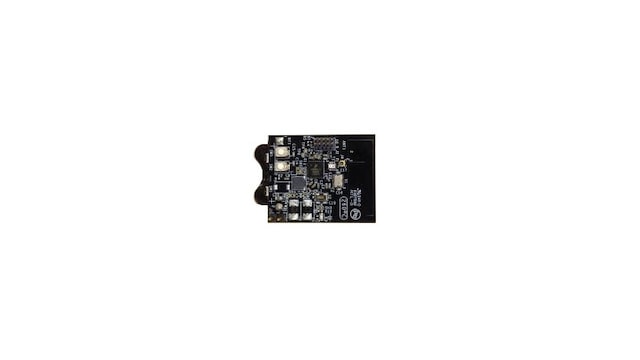

Bluetooth® Low Energy Beacon Reference Design

BLUETOOTH-BEACON

Roll over image to zoom in

The Bluetooth low energy beacon reference design is a compact form factor, open source design, which can be used with the popular beacon profiles such as iBeacon, Eddystone, and custom NXP® beacon profile. The Bluetooth Low Energy Beacon reference design is powered by the KW30Z system on-chip (SoC), which includes an Arm® Cortex™-M0+ processor together with a 2.4 GHz radio for Bluetooth Low Energy.

Note: QN9090/30 is preferred for any new Bluetooth LE design. No new software releases planned

Block Diagram

Bluetooth Beacon

BLE Beacon Reference Design Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • KW30Z: Kinetis® KW30Z-2.4 GHz Bluetooth Low Energy 4.1 Microcontroller based on Arm® Cortex®-M0+

Features

Compatibility

  • Complete suite of software with the firmware for Bluetooth low energy stack, iBeacon and custom beacon firmware, Android™ and iOS apps

Buy Options

USB-KW40Z-Image

Click to expand

  • USB-KW40Z
    Active

  • USB Dongle, Kinetis W MCU, KW40Z, KW30Z, KW20Z.

  • Kit contains:

    • USB-KW40Z packet sniffer/dongle
    • Quick Start Guide
  • $103.50 USD
  • For a quantity of 1
Order from distributors
FRDM-KW40Z-Image

Click to expand

  • FRDM-KW40Z
    Active

  • Freedom Development boards for Kinetis KW20Z, KW30Z and KW40Z MCUs.

  • Kit contains:

    • 2 FRDM-KW40Z Freedom development boards
    • Quick Reference Card
    • 2 USB cables
  • $224.25 USD
  • For a quantity of 1
Order from distributors
