PF5300 / PF5301 / PF5302 Socketed Programming Board

KITPF5300SKTEVM

Roll over image to zoom in

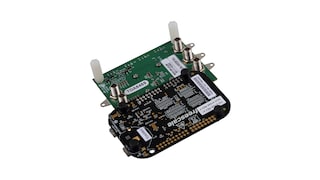

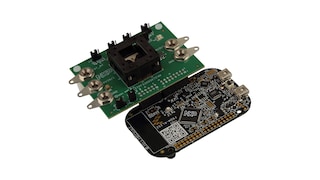

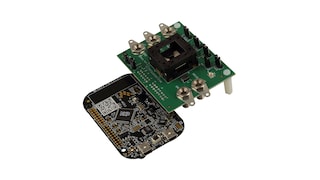

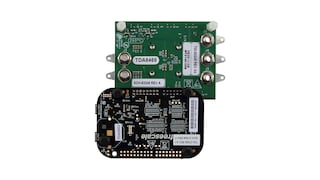

The KITPF5300SKTEVM is a customer evaluation board for OTP programming the PF5300 / PF5301 / PF5302.

The kit integrates all hardware needed to OTP program the PF5300, PF5301 and PF5302. It integrates a communication interface based on the FRDM-KL25Z development board to interface with the NXP GUI software to fully configure and control the PF53 PMIC.

Supported Devices

Power Management

5 V PMIC Solutions

  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog

Features

PMICs

  • PF5300, PF5301 and PF5302 power management integrated circuits (PMICs)

Features

  • High current core supply
  • OTP Programmable
  • Fit up to ASIL D level

Connectivity

  • High-speed I²C through KL25Z

Jumpers and Switches

  • PMIC enable and IO control

Buy Options

KITPF5300SKTEVM-Image

Click to expand

KITPF5300SKTEVM
Active

PF5300 / PF5301 / PF5302 Socketed Programming Board.

    $175.60 USD
    In Stock :12

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
