  • KEA128 and MC10XS3425 Light Control and E-Switch Reference Design

KEA128 and MC10XS3425 Light Control and E-Switch Reference Design

KEA128LEDLIGHTRD

Roll over image to zoom in

The KEA128LEDLIGHTRD is a reference design for controlling automotive lighting (high/low beam, turning and braking) and for diagnosing the status of the front headlamp using with eXtreme switch.

Based on the 32-bit Arm® Cortex®-M0+ Kinetis® KEA128 automotive-grade MCU and the MC10XS3425 eXtreme switch, the KEA128LEDLIGHTRD offers a LIN and CAN communication-based complete headlight environment control solution, including LEDs, tail lights, turn signals, lamp current control and diagnostics.

Product Details

Select a section:

Block Diagram

Light Control and E-switch

KEA128LEDLIGHTRD Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

KEA Automotive MCUs

  • KEA: Ultra-Reliable KEA Automotive Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Power Management

High Side Switches

  • MC12XS3: 12 V Automotive Exterior Lighting Multi eXtreme Switch

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

Automotive LIN Solutions

  • MC33662: LIN 2.1 / SAEJ2602-2, LIN Physical Layer

Features

  • Light level control and bulb status
  • Serial peripheral interface (SPI) communication throughout the system
  • Light connector interface increases the number of controlled lights
  • SWD connector interface for debugging
  • 4 x LEDs
  • 4 x potentiometers

Buy Options

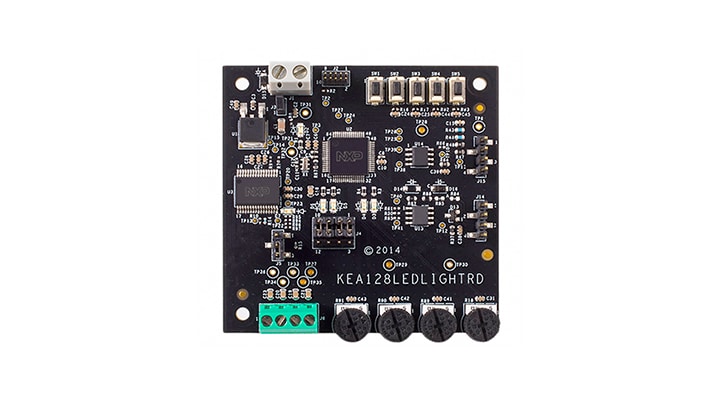

KEA128LEDLIGHTRD-Image

Click to expand

  • KEA128LEDLIGHTRD

  • KEA128 and MC10XS3425 Light Control and E-switch reference design..

  • Kit contains:

    • KEA128LEDLIGHTRD reference design board
    • KEA128LEDLIGHTRD Quick Start Guide
  • $150.42 USD
  • For a quantity of 1
Buy From Distributor
