Name: FlexRay Daughter Card FRDC
Price: 499.00 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

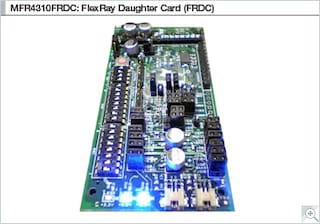

The Flexray Daughter Card (FRDC) is an additional board that can be used in conjunction with some NXP^® Evaluation Boards (EVBs) to enable customers to learn about and evaluate Flexray Networks using NXP solutions that do not have Flexray on chip. The FRDC can be connected to a number of different EVB's including some from the MPC500, MPC5500 and S12(X) (families).

A list of MCUs and tools that can be used in conjunction with the FRDC is shown under “Supported Devices.” For a complete solution, the adapter board must be ordered with the MFR4310FRDC.

NXP has a wide range of products which include integrated Flexray controllers.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

MPC55xx MCUs

MFR4310: FlexRay Communication Controller
MPC5561: 32-bit MCU for Automotive ADAS Applications
MPC5567: 32-bit MCU for Auto Powertrain Applications

16-Bit S12 and S12X MCUs

S12XA: S12XA Automotive and Industrial Microcontrollers (MCUs)
S12XB: S12XB Automotive and IndustrialMicrocontrollers (MCUs)
S12XE: Ultra-Reliable S12XE High-Performance Automotive and Industrial Microcontrollers
S12XF: S12XF Automotive and Industrial Microcontrollers (MCUs)
S12XHY: S12XHY Scalable Cluster Microcontrollers (MCUs) with CAN
S12XHZ: S12XHZ Scalable Instrument Clusters Microcontrollers (MCUs) with CAN
S12XS: S12XS Automotive and Industrial Microcontrollers (MCUs)

The Flexray Daughter Card compatibility

	Microcontroller	Microcontroller Evaluation Board (EVB) Part Number	Adaptor Board	Adaptor Board Part Number
MPC500 (Family)	MPC561, MPC562, MPC563, MPC564	MPC564EVBE	FLXRAYADPT500	FLXRAYADPT500
MPC5500 (Family)	MPC5553, MPC5554	MPC5553EVBE, MPC5554EVBE	FLXRAYADPT5500	FLXRAYADPT5500
S12	HCS12 Dx, A, and B Family MCUs	M68KIT912DP256	SCFLXRAYADPTS12	SCFLXRAYADPTS12
S12XDP512	MC9S12XDP512	EVB9S12XDP512	No Adapter Needed - Plugs in directly to EVB

Buy Options

Click to expand

MFR4310FRDC
Active

FlexRay Daughter Card for MPC500/MPC5500 and S12(X) Evaluation Boards.

Kit Contains

MFR4310 controller
2 x IP connectors (Logic and IO) for signal routing
2 x Physical Layers
2 x Channel Connectors
40MHz Oscillator with Selectable Frequencies
3.3V and 5V IO and MFR4xxx Voltage Selector
Selectable Reset Sources
Power LEDs

Note: These are targeted for evaluation purposes with own or NXP hardware.

$499.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
