SIPI-ERM8-ZIPCBL: Zipwire Cable Assembly

Overview

Zipwire is a new bus for communicating between two devices over a high speed (240 MHz) serial interface. It is implemented using a Serial Inter-Processor Interface (SIPI) over an LVDS Fast synchronous Serial Transmission Interface (LFAST). The SIPI module controls the higher level protocol of the interface, and the LFAST controls the physical interface. SIPI-ERM8-ZIPCBL is a Zipwire cable assembly that allows for communication between two boards (not included) via Zipwire.

CAUTION

Zipwire is intended to be used between two devices on the same printed circuit board. This connector and cable is only intended for evaluation of products and not for actual customer implementations

MoreLess

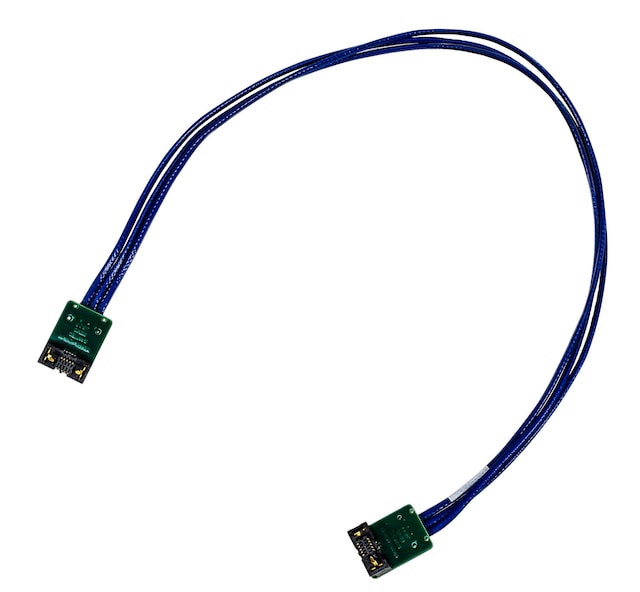

Zipwire Cable Assembly

Specifications

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

MPC5746R : Automotive & Industrial Engine Management MCU
MPC574xP : Ultra-Reliable MPC574xP MCU for Automotive & Industrial Safety Applications
MPC5777C : Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management
MPC5777M : Ultra-Reliable MPC5777M MCU for Automotive & Industrial Engine Management
MPC577xK : Ultra-Reliable MPC577xK MCU for ADAS and Radar

MoreLess

Technical and Functional Specifications

The Zipwire interface consists of five signals:

A pair of LVDS transmits pins
A pair of receive LVDS pins
A clock. The clock is unidirectional and is defined to be an output on the Follower and an input on the Controller node

Additional information about the Zipwire Interface is available in the application note AN5134 “Introduction to Zipwire” which can be found at www.nxp.com

Buy

SIPI-ERM8-ZIPCBL ^Active
SIPI ZIP WIRE CABLE, 2X5 PIN SIPI CONN, 0.8MM PITCH 12 IN LENGTH

SIPI-ERM8-ZIPCBL
1 @ US
$125.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

Design Resources

Documents ( 1 )

Application Note ( 1 )

Documents

Application Note ( 1 )

AN5134, Introduction to the Zipwire - Application notes^{(REV
0
)}

AN5134: This application note provides an overview of the Zipwire Interprocessor communication interface, including the hardware interface, the recommended software API, and an example of a typical use to transfer information between two devices.
- PDF
- 659.4 kB
- 04 Jun 2015
- AN5134
- [ English ]
