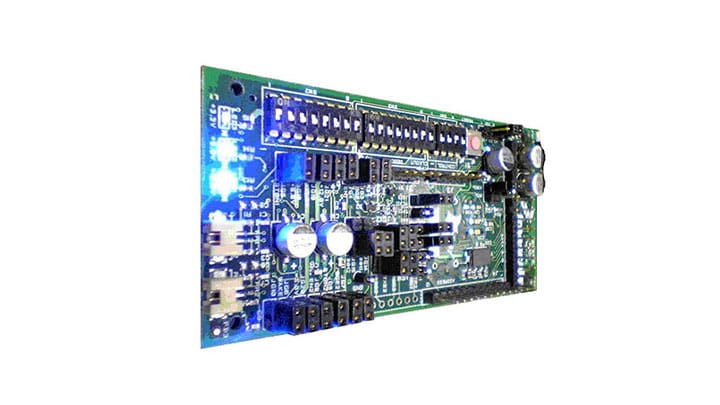

FlexRay Daughter Card (FRDC)

MFR4310FRDC

Roll over image to zoom in

The Flexray Daughter Card (FRDC) is an additional board that can be used in conjunction with some NXP® Evaluation Boards (EVBs) to enable customers to learn about and evaluate Flexray Networks using NXP solutions that do not have Flexray on chip. The FRDC can be connected to a number of different EVB's including some from the MPC500, MPC5500 and S12(X) (families).

A list of MCUs and tools that can be used in conjunction with the FRDC is shown under “Supported Devices.” For a complete solution, the adapter board must be ordered with the MFR4310FRDC.

NXP has a wide range of products which include integrated Flexray controllers.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

MPC55xx MCUs

  • MFR4310: FlexRay Communication Controller
  • MPC5561: 32-bit MCU for Automotive ADAS Applications
  • MPC5567: 32-bit MCU for Auto Powertrain Applications

16-Bit S12 and S12X MCUs

  • S12XA: S12XA Automotive and Industrial Microcontrollers (MCUs)
  • S12XB: S12XB Automotive and IndustrialMicrocontrollers (MCUs)
  • S12XD: S12XD Automotive and Industrial Microcontrollers (MCUs)
  • S12XE: Ultra-Reliable S12XE High-Performance Automotive and Industrial Microcontrollers
  • S12XF: S12XF Automotive and Industrial Microcontrollers (MCUs)
  • S12XHY: S12XHY Scalable Cluster Microcontrollers (MCUs) with CAN
  • S12XHZ: S12XHZ Scalable Instrument Clusters Microcontrollers (MCUs) with CAN
  • S12XS: S12XS Automotive and Industrial Microcontrollers (MCUs)

The Flexray Daughter Card compatibility

  Microcontroller Microcontroller Evaluation Board (EVB) Part Number Adaptor Board Adaptor Board Part Number
MPC500 (Family) MPC561, MPC562, MPC563, MPC564 MPC564EVBE FLXRAYADPT500 FLXRAYADPT500
MPC5500 (Family) MPC5553, MPC5554 MPC5553EVBE, MPC5554EVBE FLXRAYADPT5500 FLXRAYADPT5500
S12 HCS12 Dx, A, and B Family MCUs M68KIT912DP256 SCFLXRAYADPTS12 SCFLXRAYADPTS12
S12XDP512 MC9S12XDP512 EVB9S12XDP512 No Adapter Needed - Plugs in directly to EVB

Buy Options

  • MFR4310FRDC

  • FlexRay Daughter Card for MPC500/MPC5500 and S12(X) Evaluation Boards.

    • MFR4310 controller
    • 2 x IP connectors (Logic & IO) for signal routing
    • 2 x Physical Layers
    • 2 x Channel Connectors
    • 40MHz Oscillator with Selectable Frequencies
    • 3.3V and 5V IO and MFR4xxx Voltage Selector
    • Selectable Reset Sources
    • Power LEDs

    Note: These are targeted for evaluation purposes with own or NXP hardware.

  • $499.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1 documents

  • Reference Manual

    MFR4300 User Manual Featured

    PDFRev CMar 13, 20081.8 MBMFR4300_UMEnglish
    Sign in required

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    MFR4300 Schematic

    PDFRev CMar 13, 2008 00:00:00107.4 KBMFR4300SCH
    Sign in required
    Download

Software

Filters

3 software files

  • Code Snippets

    How to generate SW delay by means of ECT

    ZIPRev 1Mar 21, 2014 00:00:00491.4 KBXDP512-ECT-DELAYGEN-CW47
    Download
  • Code Snippets

    This example project presents how to erase/read/write Flash EEPROM on the MC9S12XDP512

    ZIPRev 1.1Mar 21, 2014 00:00:00950.2 KBXDP512-FLASH-EW-CW47
    Download
  • Test, Debug and Analyzer Software

    D-Bug12XZ

    ZIPRev 6.0.0b19Jul 18, 2017 00:00:00931.8 KBD-BUG12XZV6FW
    Download
