MPC5646C Devlce and Target Adapters

MPC5646C-DB
Active

Roll over image to zoom in

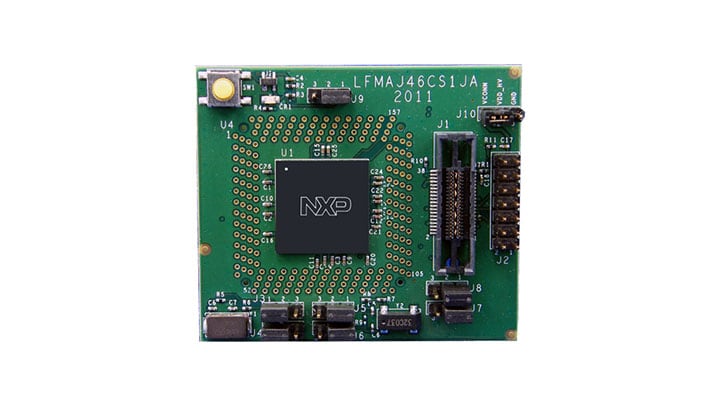

MPC5646C hardware adapter boards allow development of MPC5646C based designs using Nexus/JTAG or Ethernet based tools. Development options are distributed across a range of tools: LFETHJ46CS1A, LFETHJ46CS1NT, LFMAJ46CS1A or LFMAJ46CS1NT. Adapt to other packages using: LFTAJ46CNQA, LFTAJ46CNLT or LFTAJ46CNM2T. Mount to a target footprint using the appropriate conversion kit: LFBGARBQAO, LFTQSM2T, LFBGARBS1AO and LFTQSLT.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC564xB-C: Ultra-Reliable MPC564xB-C MCU for Automotive and Industrial Control Applications

Features

  • On-board crystal

Connectivity

  • Nexus connector
  • JTAG connector
  • Ethernet connector
  • Package-converting daughter card

Components

  • On-board reset circuit

Buy Options

LFTAJ46CNQA-Image

Click to expand

LFTAJ46CNQA
Active

Qorivva MPC5646C 208 Pin 1.0mm PGA target adapter.

    $160.00 USD
    Pending Stock
    ADD TO CART
    Order from distributors
    LFTAJ46CNM2T-Image

    Click to expand

    LFTAJ46CNM2T
    Active

    Qorivva MPC5646C 176 Pin 0.5mm QFP target adapter.

      $210.00 USD
      Pending Stock
      ADD TO CART
      Order from distributors
      LFMAJ46CS1NT-Image

      Click to expand

      LFMAJ46CS1NT
      Active

      Qorivva MPC5646C 256 Pin 1.0MM PGA to 208 Pin 0.5mm QFP Nexus Debug Board.

        $420.00 USD
        Pending Stock
        ADD TO CART
        Order from distributors
        LFMAJ46CS1A-Image

        Click to expand

        LFMAJ46CS1A
        Active

        Qorivva MPC5646C 256 Pin 1.0MM PGA Nexus Debug Board.

          $420.00 USD
          Pending Stock
          ADD TO CART
          Order from distributors
