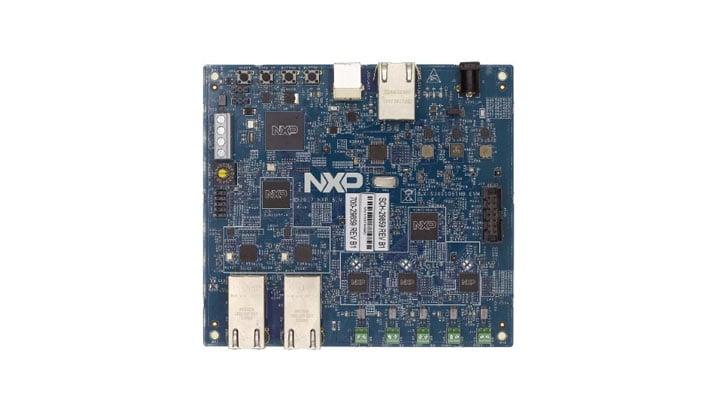

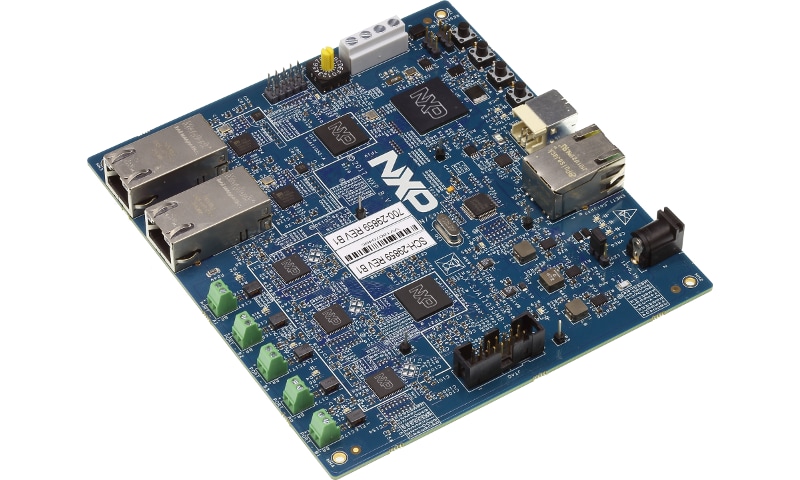

The SJA1105SMBEVM enables early SW development for SJA1105P/Q/R/S Automotive Ethernet switch family and the TJA1102 Automotive Ethernet PHYs on a market-leading Automotive MPC5748xG MCU.

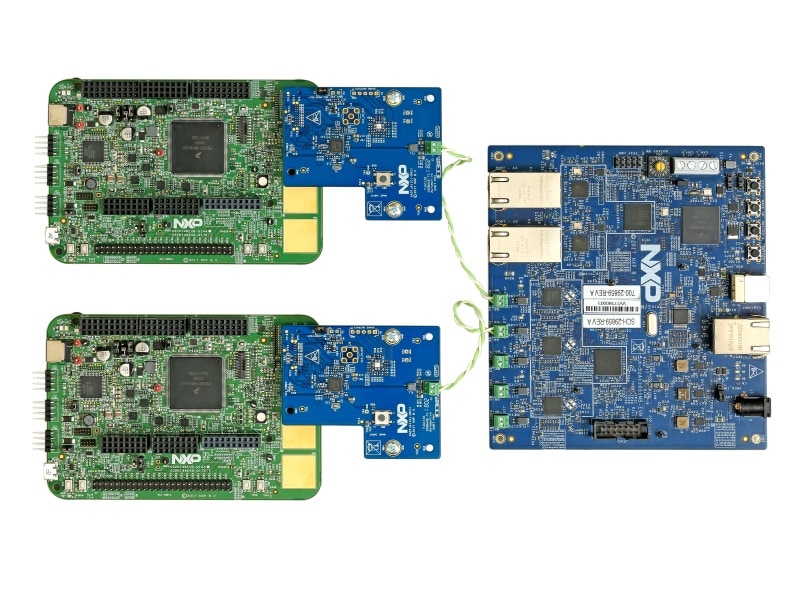

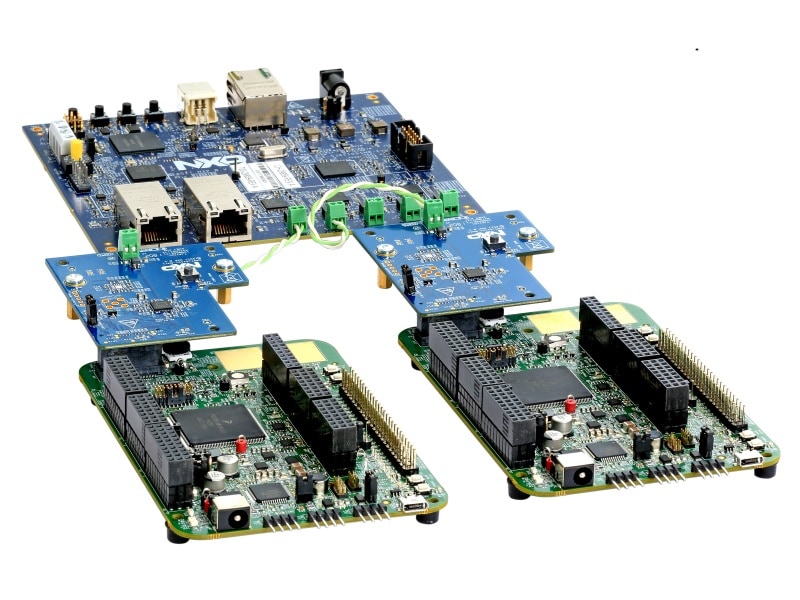

The board hosts two switches enabling the evaluation of the part in a cascaded mode. The TJA1102 PHYs enable the evaluation of the OPEN-Alliance TC10 “Wake Up” function.

Finally, the PCB includes two 1000Base-T Ethernet PHYs for easy connection to a PC and or monitoring equipment and a CAN-FD transceiver.

Design Files

Software

Product Details

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1145: High-Speed CAN Transceiver for Partial Networking

Automotive Ethernet Switches

SJA1105PQRS: SJA1105PEL/QEL/REL/SEL Series Ethernet Switches

Automotive Ethernet PHYs

TJA1102-TJA1102S: TJA1102/TJA1102A: Dual Port 100BASE-T1 PHY Transceiver

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

MPC574xB-C-G: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Features

Evaluate SJA1105P/Q/R/S Switch in cascaded mode
Evaluate TJA1102 Open Alliance Wake Up function

Enables Ethernet SW development on MPC57xG MCU
Enable Ethernet-to-CAN evaluation

Buy Options

SJA1105SMBEVM
MPC574xB/C/G and SJA1105P/Q/R/S Gateway Evaluation Kit.

$1179.52 USD
For a quantity of 1
- Availability: In stock
- Inventory: 10
- Shipping: Normally ships 1-2 business days

Buy from NXPBuy From Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

2 documents

^{User Guide}
Get Started with the SJA1105SMBEVMGetting Started

HTMLApr 16, 2019NGS-SJA1105SMBEVMEnglish
^{User Manual}
AH1721 SJA1105SMBEVM User Manual

PDFRev 1.0Jul 9, 20212.0 MBAH1721English
Sign in required

Design Resources

Design Files

2 design files

^{Printed Circuit Boards and Schematics}
SJA1105SMBEVM Schematics

PDFRev B0-04Jul 12, 2021 14:03:006.5 MBSJA1105SMBEVM-SCHEMATICS
Sign in required

Download
^{Printed Circuit Boards and Schematics}
SJA1105SMBEVM layout

ZIPRev DJul 13, 2021 18:49:005.5 MBSJA1105SMBEVM-LAYOUT
Sign in required

Download

Software

1-5 of 6 software files

^Libraries
Automotive Ethernet Audio Video Bridging (AVB)
^{Embedded Software - miscellaneous}
sja1105smbevm SDK firmware

ZIPRev 2.0Jul 13, 2021 18:40:001.1 MBSJA1105SMBEVM-SDK-FIRMWARE
Sign in required

Download
^{IDE and Build Tools}
S32 Design Studio for Power Architecture^®

Download Options
^{Code Generation Tools}
SJA1105x Configuration Tools

ZIPRev 1.1Feb 26, 2021 23:59:00740.1 KBSJA1105X_CONFIG-GENTOOL
Sign in required

Download
^AUTOSAR
AUTOSAR 4.2.x (Classic Platform) Software

Download Options
^AUTOSAR
AUTOSAR 4.3 Drivers for SJA1105P/Q/R/S

Show All
