MPC5643L Functional Safety Development Board

MPC5643L_DEVB

Roll over image to zoom in

The LFMAJ43Lxx tools allows users to develop MPC5643L based designs using Nexus/JTAG based tools.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC564xL: Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications

Features

Processor

  • PPC5643L Processor
  • Mictor Nexus and JTAG Header
  • 40MHz Crystal

Connectivity

  • Configurable Jumper settings

Size

  • Small form-factor

Components

  • Reset switch

Buy Options

  • LFMAJ43LT3LT

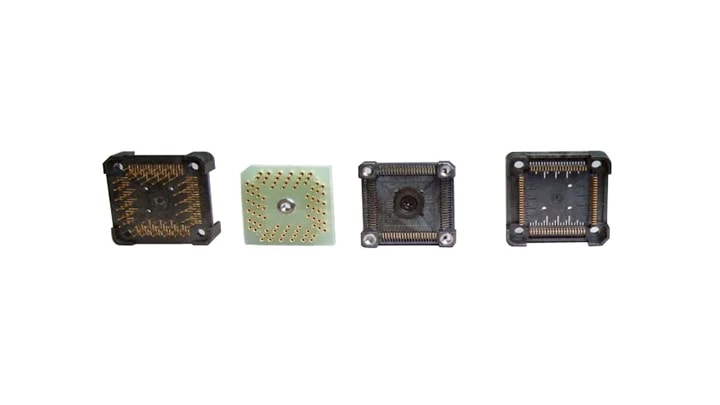

  • Qorivva MPC5643L 257 Pin 0.8mm PGA to 144 Pin 0.5mm QFP Nexus Debug board.

    • Packing Slip
    • Device
  • $420.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

  • LFMAJ43LT3A

  • Qorivva MPC5643L 257 Pin 0.8mm PGA Nexus Debug board.

  • $420.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
