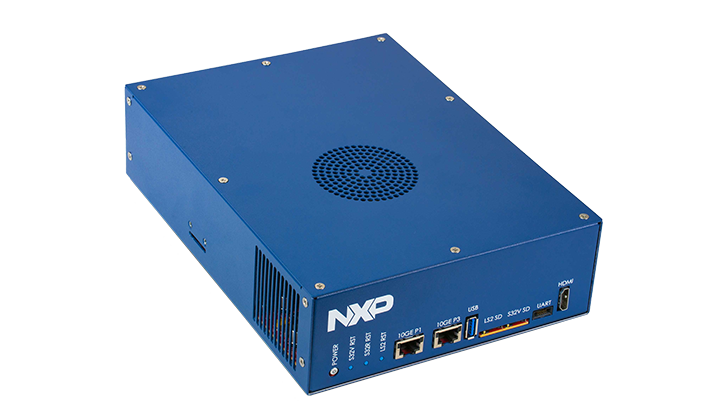

NXP BlueBox: Autonomous Driving Development Platform

Overview

BLBX2-DB
BLBX2-DB

BLBX2-DB

Concept Car Demo Highlights NXP Electrification, Autonomy and Connectivity Solutions

Concept Car Demo Highlights NXP Electrification, Autonomy and Connectivity Solutions

New NXP Automated Drive Kit: Available by AutonomouStuff

New NXP Automated Drive Kit: Available by AutonomouStuff

Rinspeed's Snap! 2018 Car powered by NXP

Rinspeed's Snap! 2018 Car powered by NXP

6 ADAS Technologies for Safe and Secure Connected Vehicles

6 ADAS Technologies for Safe and Secure Connected Vehicles

Autonomous Cars Shift into High Gear with NXP BlueBox

Autonomous Cars Shift into High Gear with NXP BlueBox

Automated Drive Kit new

The Automated Drive Kit is a software-enabled platform that provides the required performance, functional safety and automotive reliability for engineers to develop and test self-driving cars.

Read more.

Specifications

Supported Devices

Processors and Microcontrollers

S32V2 Vision MPUs
  • S32V234 : S32V2 processors for Vision, Machine Learning, and Sensor Fusion
Layerscape Multicore Processor
  • LS2084A : QorIQ® Layerscape 2084A and 2044A Multicore Communications Processors
S32R Radar MCUs
  • S32R2X : S32R26 and S32R27 microcontrollers for High-Performance Radar

MoreLess

Technical and Functional Specifications

Interfaces
  • Different enclosure styles possible for lab and in-vehicle use
  • ASIL-B compute, automotive interfaces with vision acceleration
  • ASIL-D subsystem, with dedicated interfaces
  • Automotive I/O, numerous interfaces
  • 12 V /24 V vehicle compatible power input
  • High performance compute with 16 GB DDR4 and 256 GB SSD
  • Ethernet 100M/1G/10Gbps, SFP+, 8 x 100BASE-T1, CAN-FD, FlexRay™, 8 x cameras

Buy

  • BLBX2-DB   Active

  • NXP BlueBox: Autonomous Driving Development Platform
    • 1 x NXP BLBX2-DB
    • 1 x BLBX2 User Guide (On MicroSD card)
    • 1 x Power supply, 12 V,16 A, 192 W (with universal AC plug adapter)
    • 2 x MicroSD Card (16 GB) (One pre-imaged with S32V234 Linux image)
    • 1 x USB MicroSD Card Reader
    • 1 x 4-port USB to UART adapter kit
    • 1 x 3-port UART to RS232 adapter cable
    • 1 x Custom automotive cabling for Ethernet
    • 1 x Custom automotive cabling for CAN/FlexRay™/remote power monitoring and control
    • 1 x Custom external power cable
    • 2 x 10 feet shielded CAT6A Ethernet cable
    • 1 x HDMI-to-HDMI cable
    • 1 x Debug adapter kit with CPLD cable and 10pin-to-5pin JTAG adapter
    • 1 x SFP+ 10 Gb/s 3.3 V multimode optical transceiver
    • 1 x LC Duplex fiber optic patch cord, 2 meters
    • 1 @ US
    • $6000.00
      • Buy Direct
      • Distributor
BLBX2-DB-Image
1579109330588723448640

Design Resources

Documents   ( 3 )

Software   ( 2 )

Documents

Fact Sheet  ( 3 )

Software

Embedded Software  ( 1 )

BSP, Drivers and Middleware  ( 1 )

Support Services  ( 1 )

Support Services  ( 1 )
