S12XE General Purpose Evaluation Board

DEVKIT-S12XE

Roll over image to zoom in

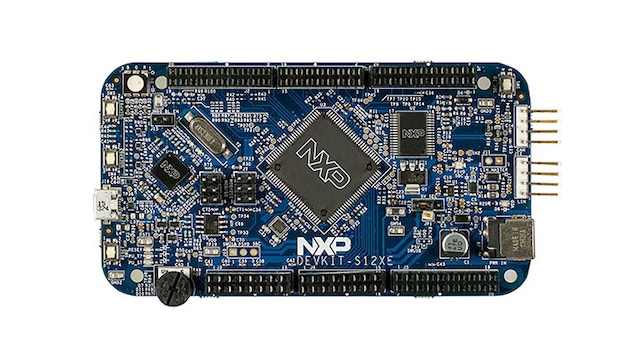

The DEVKIT-S12XE board features the 9S12XEP100 16-bit microcontroller for automotive and industrial general purpose applications. The S12XE family features an S12X core, scalable memory up to 1MB of Flash, 5 x CAN, 3 x SPI, 8 x SCI, 2 x IIC and is offered in 80, 112, 144 LQFP and 208 MAPBGA packages and supports -40 to 125 °C temperatures.

The DEVKIT-S12XE is a low-cost development kit with CAN, LIN and SCI connections and 12-bit ADC in a small form factor board compatible with the Arduino® Rev3 UNO pinout. It has expansion options using the DEVKIT-COMM board. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

16-Bit S12 and S12X MCUs

  • S12XE: Ultra-Reliable S12XE High-Performance Automotive and Industrial Microcontrollers

Features

Microcontroller

  • 9S12XEP100 MCU

Connectivity

  • USB to Serial Interface
  • Supports CAN and LIN connectors

Debug

  • OSBDM onboard open source programming and debugging tool

Components

  • ADC Potentiometer
  • RGB LED
  • Power LEDs indicators
  • Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

Buy Options

  • DEVKIT-S12XE

  • S12XE General Purpose Evaluation Board.

    • DEVKIT-S12XE Development Board
  • $69.00 USD
  • For a quantity of 1
Buy From Distributor
