MC9S08P Tower System Daughter Card

TWR-S08DC-PT60

Roll over image to zoom in

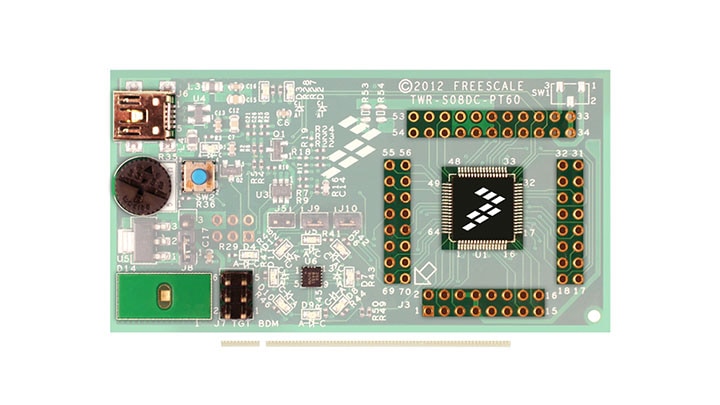

The low-cost TWR-S08DC-PT60 daughter card, a standalone demo board with on-board debugger, is designed to demonstrate the capabilities of the NXP® MC9S08P family.

  • Pre-programmed with a potentiometer demo, accelerometer demo with orientation/shake/tap/transient modes, flash and EEPROM demo, and a BDM debugger demo.
  • Enables quick and cost-effective product evaluation and application development, and can be used in standalone mode or mounted to the TWR-S08UNIV module to gain access to the full breadth of our Tower® ecosystem.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08SU: 8-bit Ultra High Voltage Motor Control SU MCUs

Features

Memory

  • Flash/EEPROM operation on silicon

Sensors

  • IIC to low-g inertial sensor (accelerometer)
  • Touch Sensing Interface (TSI) with one-touch pad

User components

  • ADC from potentiometer input
  • GPIO output through LEDs
  • Additional functionality with TWR-S08UNIV mother board

Buy Options

  • TWR-S08DC-PT60

  • 8-bit MCU demo kit, MC9S08P Daughter Card.

    • TWR-S08PT60 board with MC9S08PT60 8-bit MCU
    • Necessary cables
    • DVD with lab tutorials, software, training and collateral
    • Quick Start Guide
  • $21.85 USD
  • For a quantity of 1
Buy From Distributor
