EasyEVSE EV Charging Signal Board

EVSE-SIG-BRD updated
Active

Roll over image to zoom in

The EVSE-SIG-BRD2X and SIGBRD-HPGP EV charging signal boards deliver a seamless path to implementing ISO 15118 high level communication between the Electric Vehicles (EV) and Electric Vehicle Supply Equipment (EVSE) using the Lumissil CG5317 HomePlug Green PHY.

EVSE-SIG-BRD2X

  • Enables ISO 15118 standard-based communication between vehicle and charging station
  • Incorporates LPC55S36 MCU for low-level communication, GPIO switching, relay drive, accurate metrology and functional safety libraries
  • Incudes the TJA1021BT LIN transceiver for SAE J3068
  • Uses the TJA1044GT CAN transceiver
  • Includes the SJA1110 Ethernet switch to enable switching between several ethernet sources
  • Interconnects with NXP evaluation and development boards for i.MX 8 and 9 applications processors, i.MX RT106x Crossover MCUs, S32G automotive processors and S32K3 MCUs

Use the EVSE-SIG-BRD2X to demonstrate basic charging and high-level communication (ISO 15118) by sending data signals between an EV and EVSE host controller board. The EVSE-SIG-BRD2X board is compatible with EasyEVSE MPU‑based and MCU‑based development platforms.

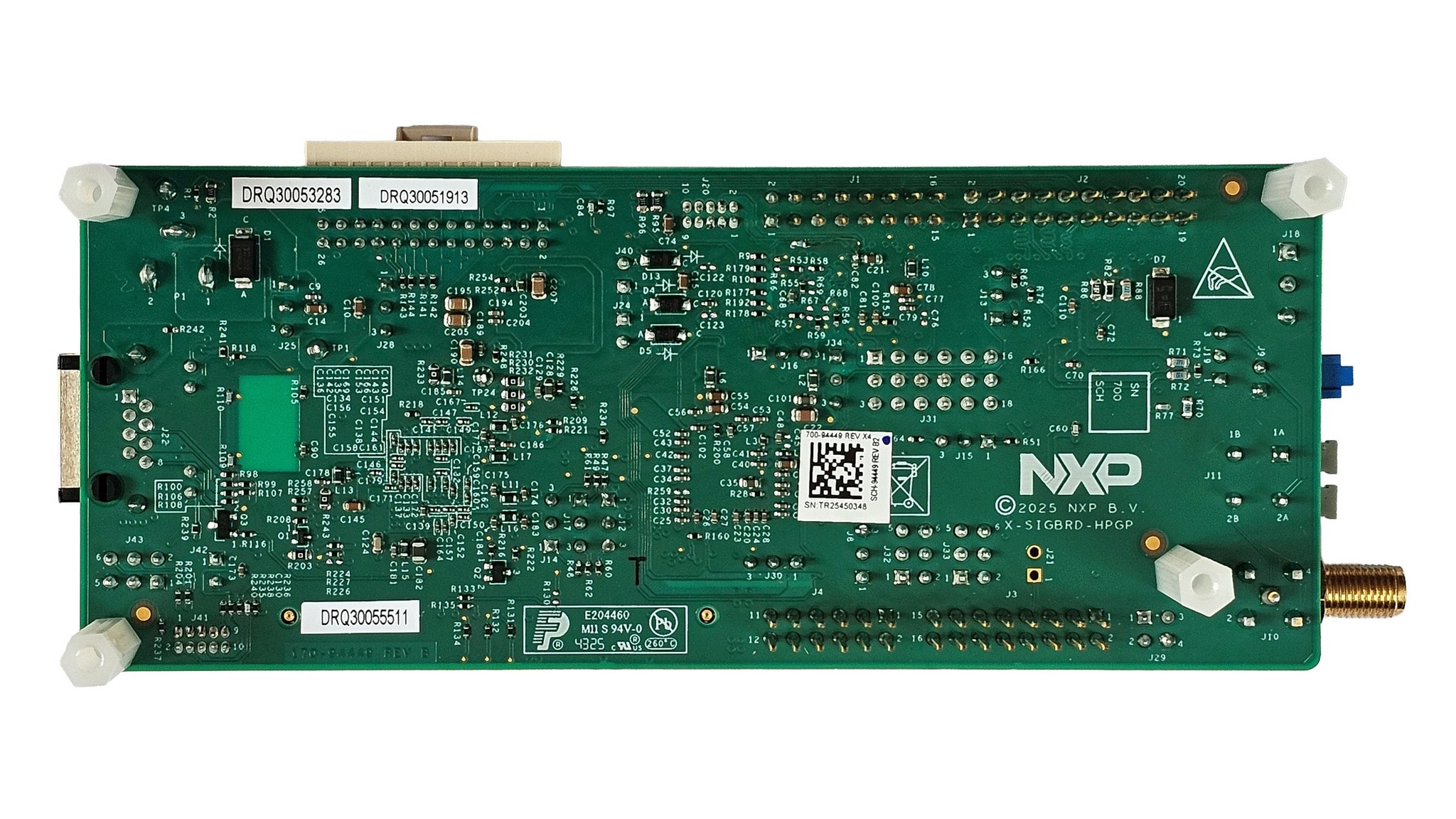

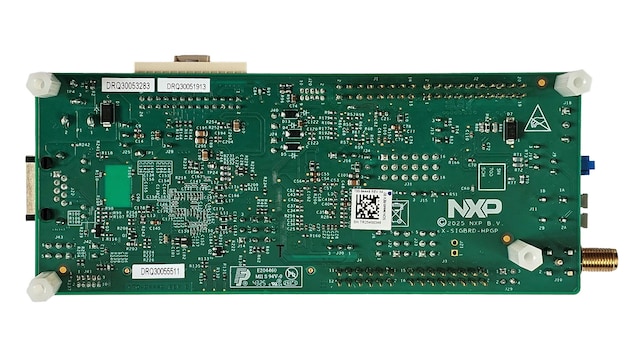

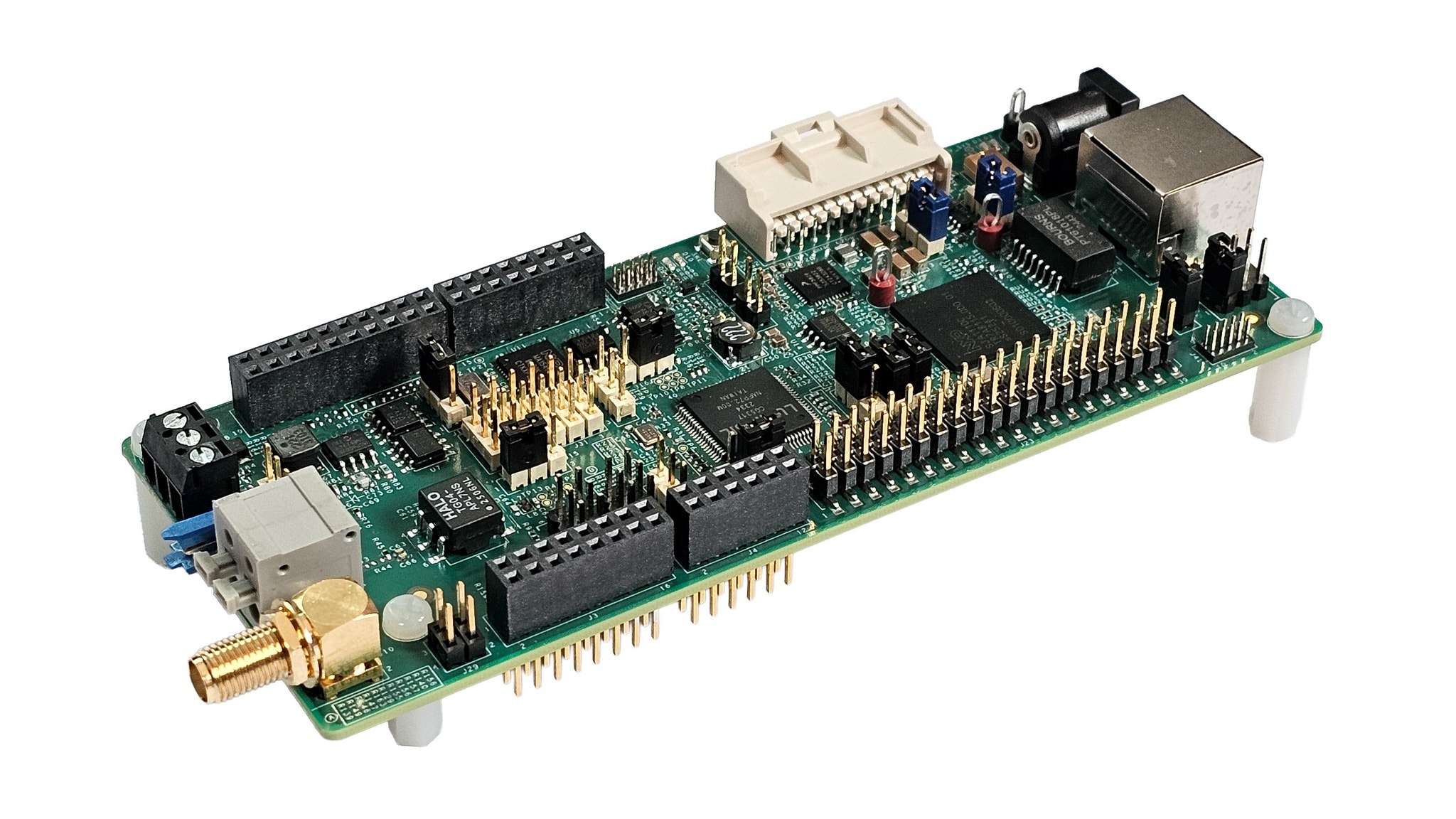

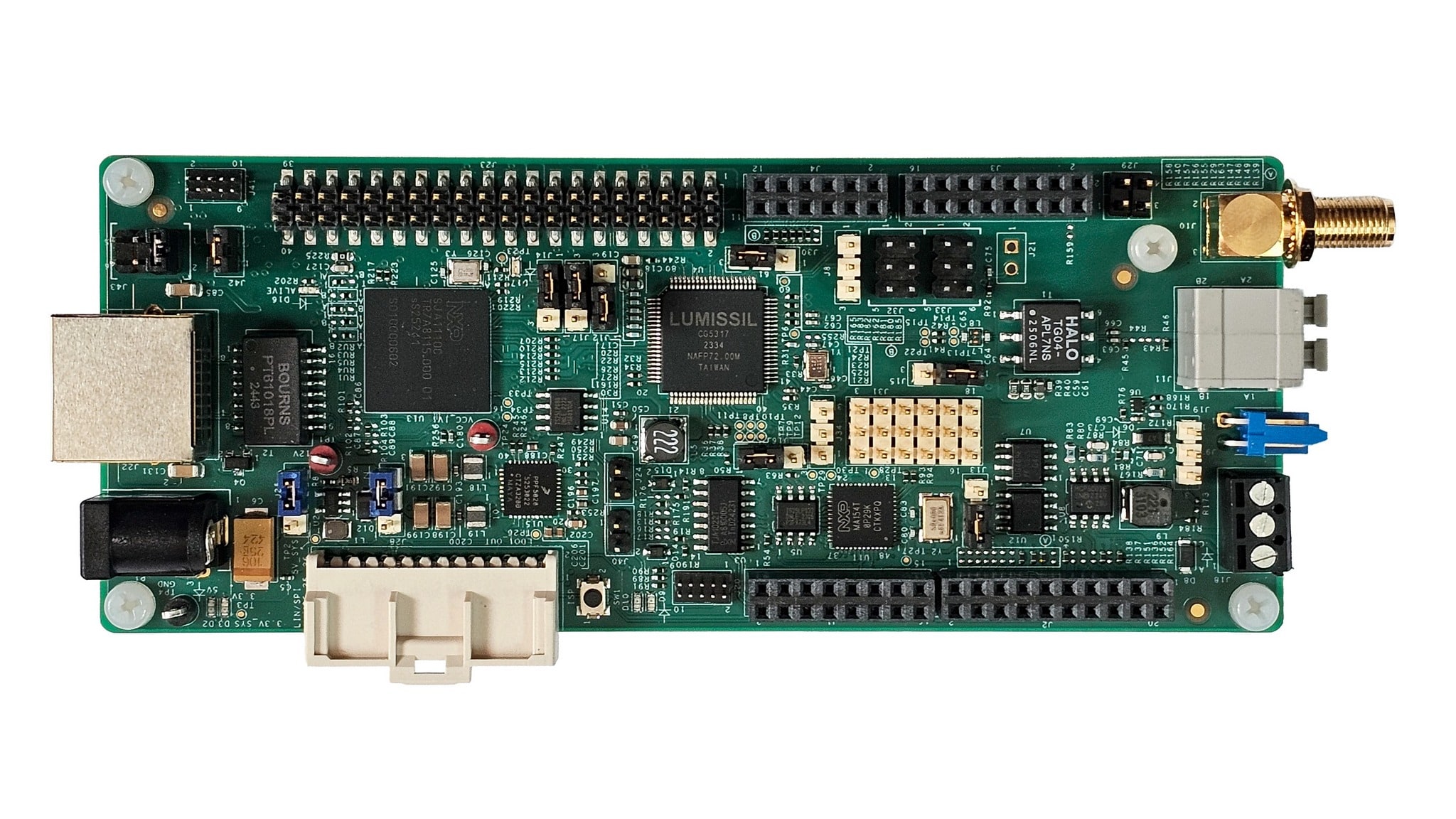

SIGBRD-HPGP

  • Enables ISO 15118 standard-based communication between vehicle and charging station
  • Interfaces to the EVSE-EMETER for multiphase grid power and low-level communication to the EV for EVSE side operations
  • Uses the MCXA154VFT to support Control Pilot, Proximity Pilot, PWM and UART for the EV side
  • Incudes the TJA1022T LIN transceiver for SAE J3068 for EV and EVSE side implementations
  • Includes the SJA1110C Ethernet switch to enable switching between several sources
  • Interconnects with NXP evaluation and development boards for i.MX 8 and 9 applications processors, i.MX RT106x Crossover MCU and S32G automotive processors

The SIGBRD-HPGP is designed with distinct configurations for EV and EVSE side applications. Combine the SIGBRD-HPGP with EVSE-EMETER board on the EVSE side to measure the gird voltage supplied to the EV with high accuracy and continuously monitor charging current and energy during a charging session between the EV and EVSE. Add the SIGBRD-HPGP board on the EV side for PLC communication between the EV and EVSE side. The SIGBRD‑HPGP board is compatible with EasyEVSE MPU‑based and MCU‑based development platforms.

Block Diagram

Choose a diagram:

EVSE-SIG-BRD2X hardware architecture

EasyEVSE EV Charging Signal Board

SIGBRD-HPGP hardware architecture

SIGBRD-HPGP0 Evaluation Board Block Diagram
Get diagram PDF

Supported Devices

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive LIN Solutions

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver
  • TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

3.3 V / 5 V IO CAN Transceivers

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

Processors and Microcontrollers

LPC5500 Arm Cortex-M33

  • LPC553x: LPC553x/S3x: Advanced Analog Arm®Cortex®-M33-Based MCU Family

MCX A Series Microcontrollers

  • MCX-A13X-A14X-A15X: MCX A13, 14, 15 Essential MCUs with Arm® Cortex® M33, Low Power and Intelligent Peripherals

Features

Embedded Microcontroller

  • LPC5536/LPC55S36 or MCXA15x MCU
  • Arm Cortex-M33 with flash and RAM
  • PWMs, ADCs and DACs with on-chip comparator
  • CAN, UART, SPI and I²C interfaces

HomePlug Green PHY

  • Lumissil CG5317 HomePlug Green PHY Transceiver for ISO 15118 power line communication (PLC)

Control Pilot

  • J1772 (IEC 61851) PWM, ISO 15118 EVSE and EV support

Proximity Pilot

  • J1772 support

Ethernet Switch

  • SJA1110B or SJA1110C to enable Ethernet switch

CAN Interface

  • TJA1044GT to support CAN communication

LIN Interface

  • TJA1021BT or TJA1022T LIN transceiver for SAE J3068 to support LIN communication

Ground-Fault Circuit Interrupters (GFCI)

  • GFCI detection and relay asynchronous triggering on the EVSE-SIG-BRD2X

Relay Driver

  • Drive up to two DC coil relays at 12 V and 140 mA on the EVSE-SIG-BRD2X

External AFE Interface

  • Supports connection with an external Analog-Front-End (AFE) on the EVSE-SIG-BRD2X

Safety Check Header

  • Supports connection with an external high voltage AC and current sensor circuit on the EVSE-SIG-BRD2X

Host Connectors

  • Arduino connector for the i.MX RT crossover MCU (MIMXRT1060/1064-EVK), FRDM-IMX93 and S32K3 automotive MCU (S32K3X4EVB-T172) development boards
  • EXP CN header for the i.MX 9 applications processor (MCIMX93-EVK) development board
  • Multi-Function Port (MFP) for the S32G automotive processor (S32G-VNP-RDB3) development board
  • Ethernet connectors for 100BASE-TX or 100BASE-T1

Tools and OS Support

  • Linux OS
  • FreeRTOS
  • MCUXpresso

Buy Options

EVSE-IMX93-CBL-Image

Click to expand

EVSE-IMX93-CBL
Active

Cable kit to connect the EasyEVSE Development Platform (Linux OS, Wi-Fi 6).

    $700.00 USD
    In Stock :2

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    EVSE-SIG-BRD2X-Image

    Click to expand

    EVSE-SIG-BRD2X
    Active

    EasyEVSE EV Charging Signal Board.

      $600.00 USD
      In Stock :1

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      EVSE-RT106X-CBL-Image

      Click to expand

      EVSE-RT106X-CBL
      Active

      The EVSE-RT106X-CBL is a cable kit for easier and faster connection of your EasyEVSE EV Charging Development Platform.

        $360.00 USD
        In Stock :1

        Normally ships 1-2 business days

        ADD TO CART
        Order from distributors
        SIGBRD-HPGP-Image

        Click to expand

        SIGBRD-HPGP
        Qualification

        EasyEVSE EV Charging Signal Board.

          Documentation

          Quick reference to our documentation types

          Filters

          4 documents

          Compact List

          Design Resources

          Select a section:

          Related Hardware

          Quick reference to our board types.
          Filters

          1-5 of 8 hardware offerings

          Show All

          Design Files

          Quick reference to our design files types.
          Filters

          2 design files

          Software

          Quick reference to our software types.

          Filters

          4 software files

          • BSPs and Device Drivers

            EVSE-SIG-BRD2X Software_EV

            EXTERNALRev 1Sep 1, 2024 11:07:00EVSE-SIG-BRD2X-SOFTWARE_EV
            Download
          • BSPs and Device Drivers

            EVSE-SIG-BRD2X Software_EVSE

            EXTERNALRev 1Sep 1, 2024 11:01:00EVSE-SIG-BRD2X-SOFTWARE-EVSE
            Download
          • Software Development Resources

            SIGBRD-HPGP Softwarenew

            GITHUBRev 1.0Mar 27, 2026 13:24:00SIGBRD-HPGP-SOFTWARE-EVSE
            Download
          • Software Development Resources

            External AFE with EVSE-SIG-BRD2Xnew

            GITHUBRev 1.0Mar 27, 2026 13:41:00EXTERNAL-AFE-WITH-EVSE-SIG-BRD2X
            Download

          Note: For better experience, software downloads are recommended on desktop.

          Training

          Filters

          1 trainings

          • On-Demand

            NXP EasyEVSE EV Charging Signal Board - EVSE-SIG-BRD2X

            This training provides detailed explanation of the new hardware and software features for the EasyEVSE EV Charging Signal Board EVSE-SIG-BRD2X, including test setup and results.
            1 hr 45 minEnglish Level: Intermediate
