Evaluation Board - MC34FS6408, Safe DC/DC up to 1.5 A

KIT34FS6408EVB
Preproduction
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

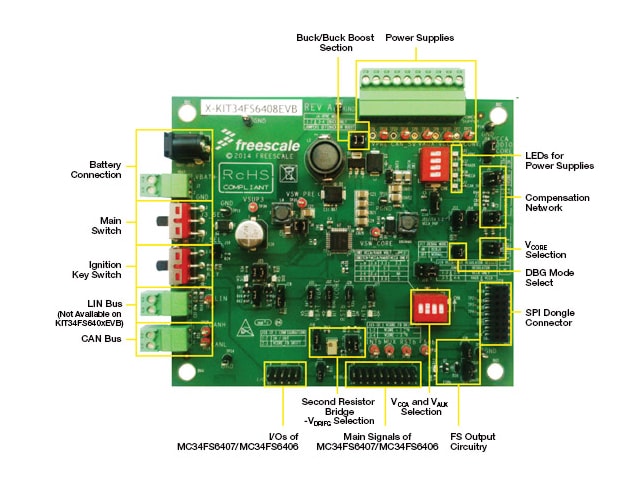

KIT34FS6408EVB evaluation board demonstrates the functionality of the MC34FS6408 power system basis chips. This IC is equipped with an Intelligent Power Management System including safety features targeting the latest ISO26262 automotive functional safety standard. The evaluation board is a standalone board that can be used either with a compatible microcontroller or with a PC. In the latter case, it is necessary to use an SPI/USB accessory interface board

Product Details

Supported Devices

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • MC34FS6408: Safe SBC with Buck and Boost DC/DC Up to 1.5 A on Vcore

Features

Connectivity

  • CAN-bus
  • IO connector (IO_0 to IO_5)

Power Management

  • VBAT power supply either through power jack (2 mm) or phoenix connector
  • VCORE configuration: 1.23 V or 3.3 V
  • VCCA configuration:
    • 5.0 V/3.3 V
    • Internal transistor or external PNP
  • VAUX configuration:
    • 3.3 V or 5.0 V
    • Enabled or disabled at startup

Debug

  • Debug connector (SPI bus, CAN digital, LIN digital, RSTb, FSOb, INTb, Debug, MUX_OUT)

User Components

  • Signaling LED to give state of signals or regulators
  • Ignition key switch
