Evaluation Kit for Digital Signal Controllers

MC56F8367EVME
Active

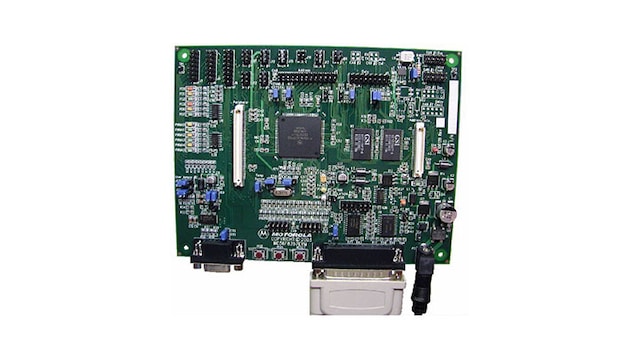

Roll over image to zoom in

The MC56F8367EVME is a low-cost kit that contains everything you need to quickly evaluate the features and capabilities of the NXP® MC56F8145-67 and MC56F8345-67 DSCs.

  • Provides an efficient, cost-effective vehicle for hardware and software development
  • Can be used alone or in conjunction with Our broad range of modular motion control development hardware
  • The MC56F8367EVME Kit is targeted for use on PC-compatible systems running Windows® 95, Windows 98, Windows 2000, Windows ME, Windows NT 4.0, and Windows XP

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

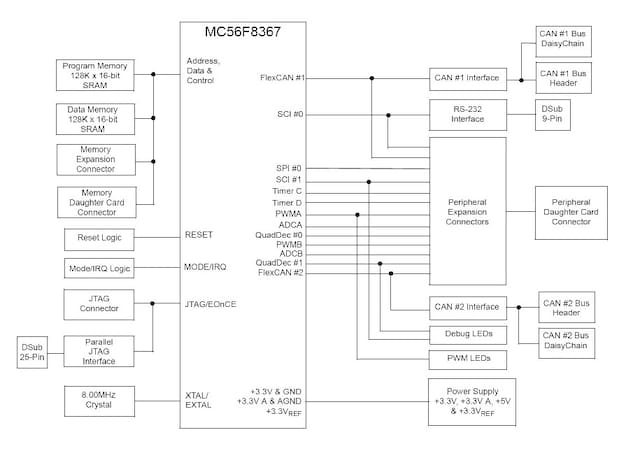

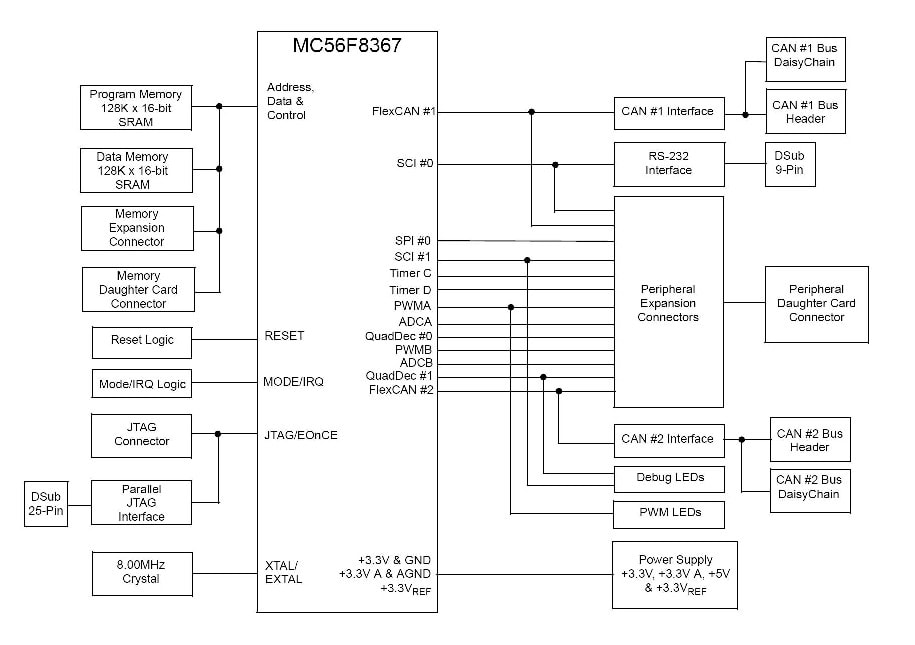

Features

Microcontroller

  • MC56F836716-bit digital signal controller

Memory

  • External fast static RAM (FSRAM) memory
  • 8.00 MHz crystal oscillator for DSP frequency generation

Connectivity

  • Optional external oscillator frequency input connector
  • JTAG port interface connector to interface to an external command converter
  • On-board parallel port command converter with a connector for a PC printer port cable
  • RS-232 interface for easy connection to a host processor
  • Pair of standard daughter card connectors enabling connection of application specific and user generated daughter cards
  • High Speed 1 Mbps CAN interface

Buy Options

MC56F8367EVME-Image

Click to expand

  • MC56F8367EVME
    Active

  • MC56F8367 EVALUATION BOA.

    • 56F8367EVM board
    • Parallel cable
    • +12V DC power supply
    • Metrowerks® CodeWarrior with Processor ExpertTM Development Tools CD-ROM
    • NXP 56800/E Accelerated Development System Resource CD-ROM
    • 56F8367EVM Kit Installation Guide
    • Warranty Registration card
  • For a quantity of 1
Order from distributors
